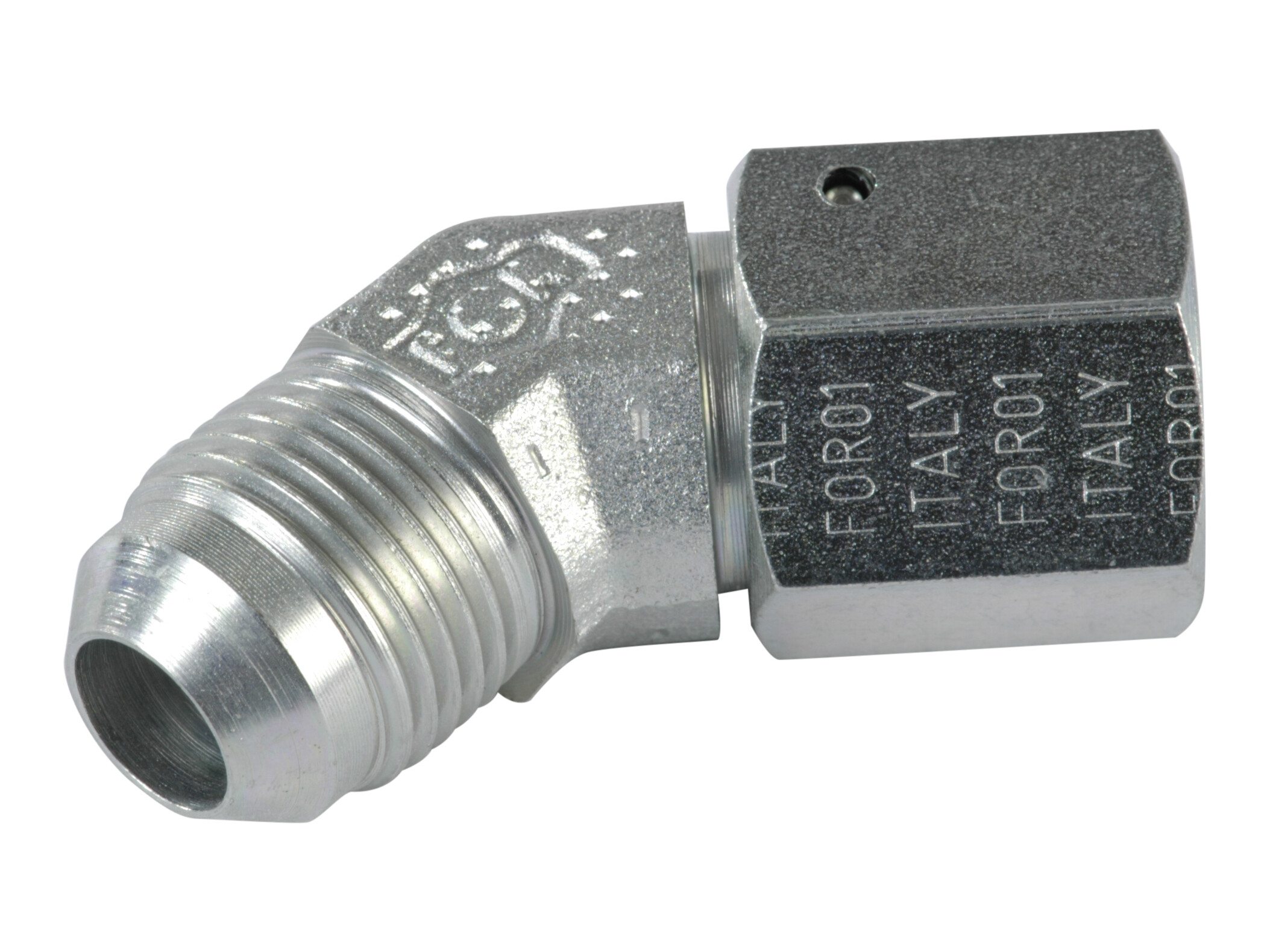

S690-12-45G elbow with nut
S690-12-45G elbow with nut
Partnumber:
VG-12
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm
Dimension B
25 mm
Dimension C
32 mm
Dimension CH
22 mm
Dimension J
3/4-16 JIC
Dimension J1
3/4-16 JIC
Dimension T
12 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread inner
3/4-16 JIC
Thread outer
3/4-16 JIC
Package size
0 pcs
Barcode
5704334240600
Gross weight
0,09 Kg
Net weight
0,09 Kg
Country of origin
ITA
Intrastat code
73071110
S690-12-45G elbow with nut
