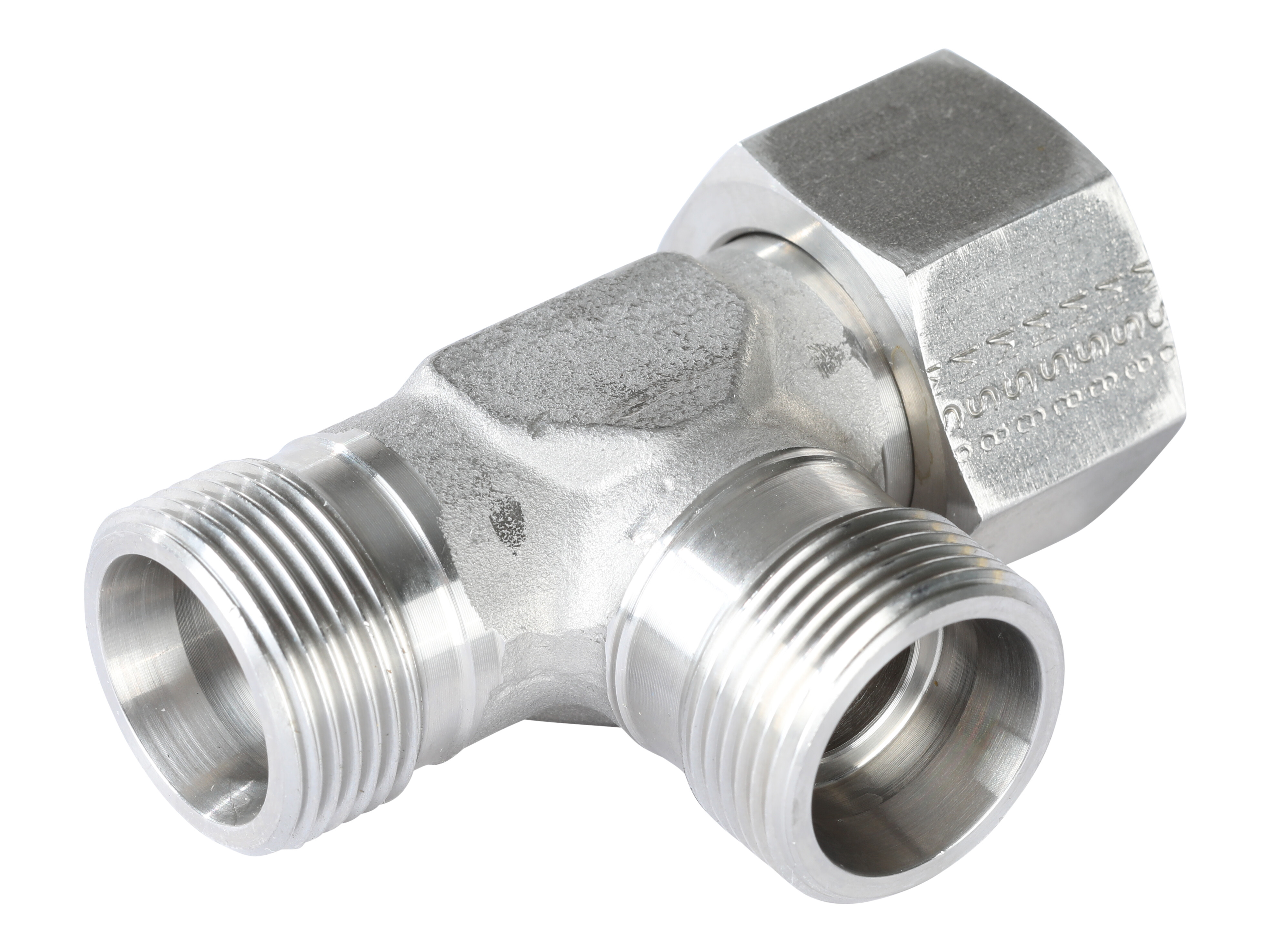

L fitting adjustable - ø42L - o-ring seal - AISI316
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
Varenummer:
VD42LDKOX/71
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Volz
D2
35 mm
D3
36 mm
Diameter pipe
42 mm
L1
63 mm
L2
51 mm
L3
40 mm
L4
56,5 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
XELVD 42 L
Pressure max.
250 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
50 mm
S2
60 mm
S3
60 mm
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
T1
M52x2
T2
M52x2
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread T
M52x2
Thread T2
M52x2 mm
Thread inner metric
M52x2 MM
Thread outer metric
M52x2
Type
Forged
d1
42 mm
d2
35 mm
Pakke str.
0 pcs
Stregkode
5704295771670
Brutto vægt
0,96 Kg
Netto vægt
0,96 Kg
Oprindelsesland
DEU
Intrastat varekode
73072910
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
