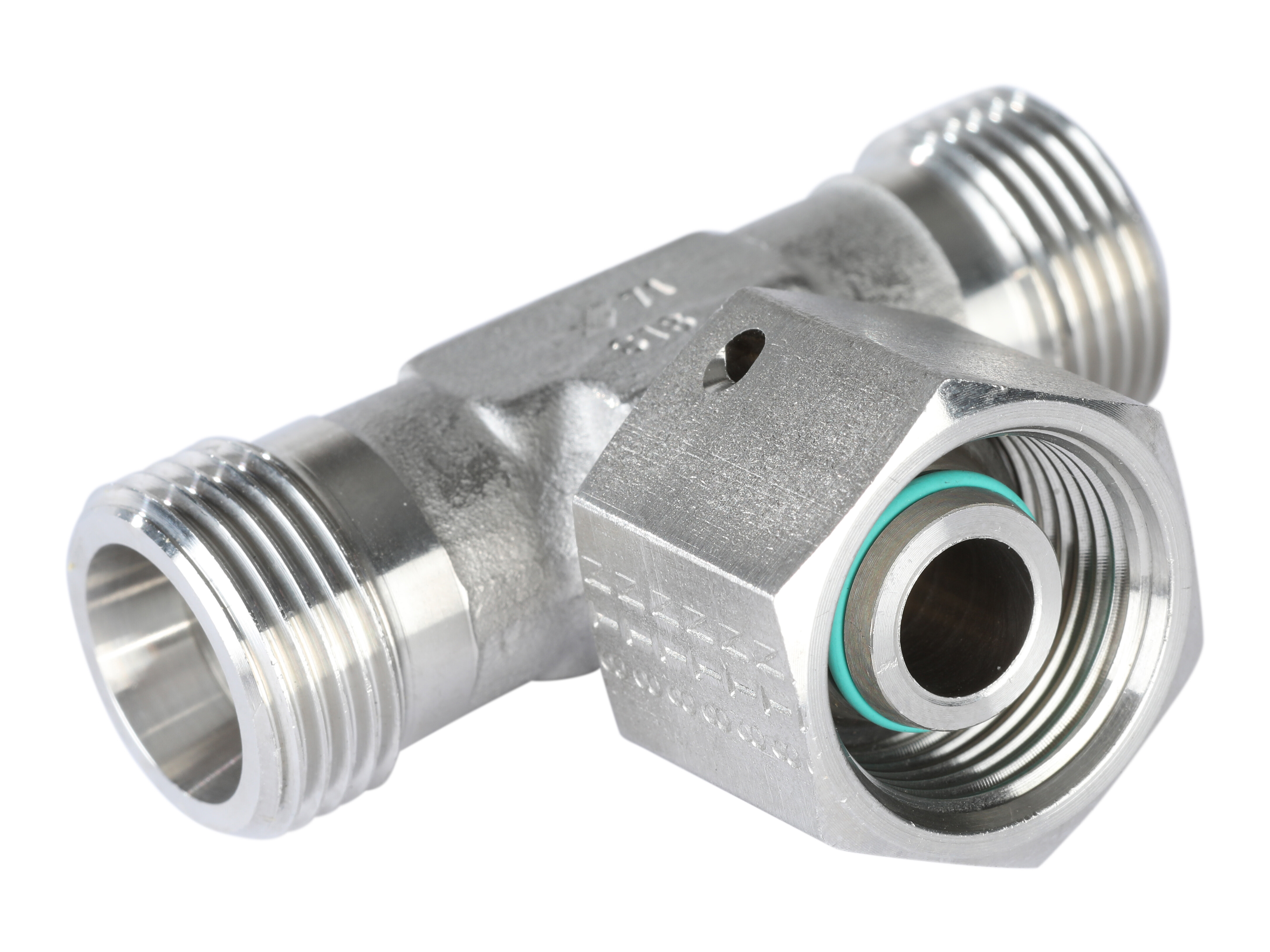

Run tee fitting adjustable - ø38S - o-ring seal - AISI316
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
Varenummer:
VC38SDKOX/71
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Volz
D1
38 mm
D2
32 mm
D3
30 mm
Diameter pipe
38 mm
L1
72,5 mm
L2
57 mm
L3
41 mm
L4
63,5 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
XETVD 38 S
PN
420 bar
Pressure max.
420 bar
S1
50 mm
S2
60 mm
S3
60 mm
Series
S
Surface treatment
Uncoated
T1
M52x2
T2
M52x2
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread T
M52x2
Thread T2
M52x2 mm
Thread inner metric
M52x2
Thread outer metric
M52x2
d1
38 mm
d2
32 mm
Pakke str.
0 pcs
Stregkode
5704295771847
Brutto vægt
1,43 Kg
Netto vægt
1,43 Kg
Oprindelsesland
DEU
Intrastat varekode
73072910
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
