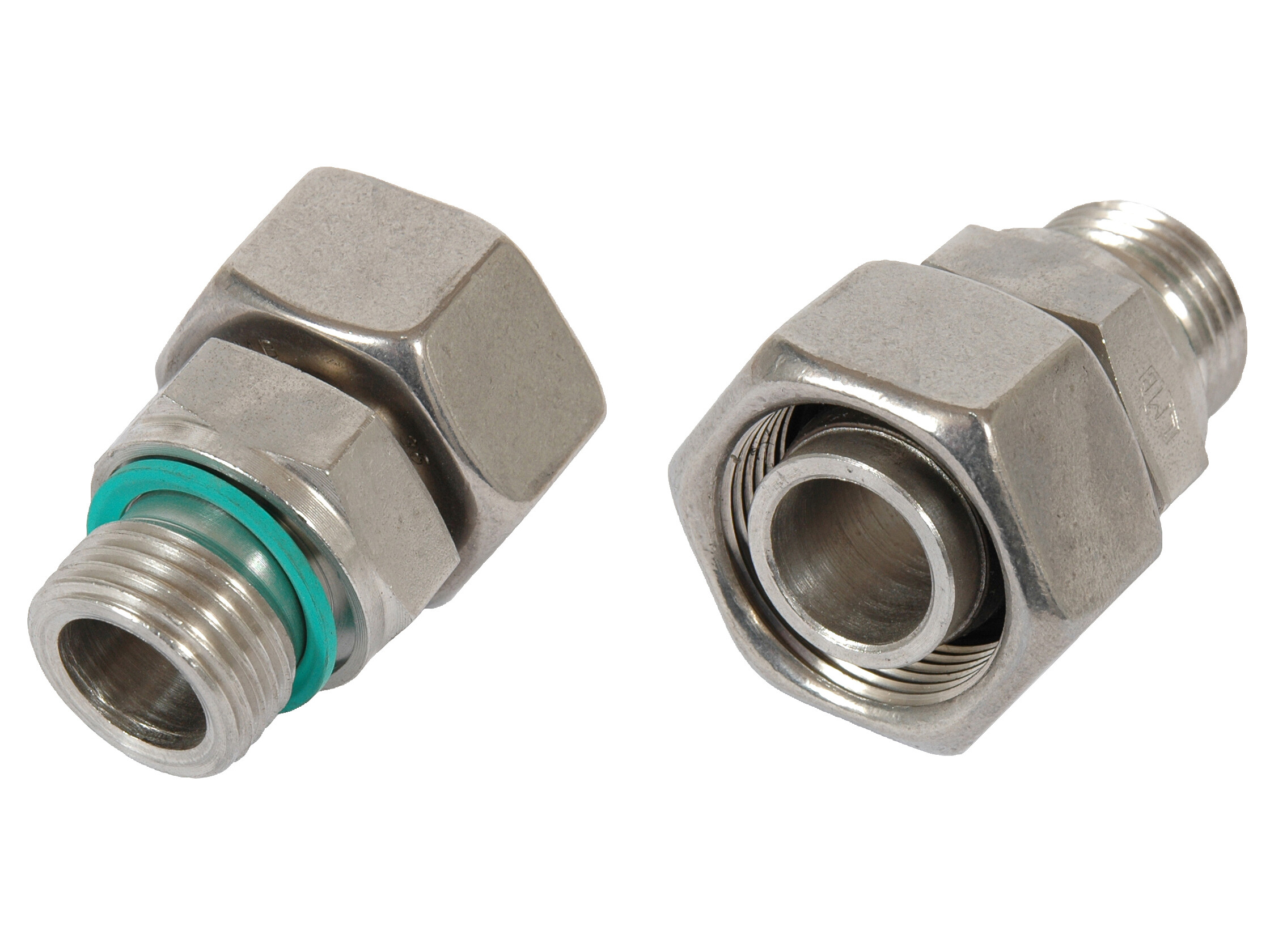

Stud fitting- ø12L female x 1/2" BSP - AISI316
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4.5%.
+50°C - +100°C = 11%.< br />+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
VA12LR1/2/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Diameter pipe
12 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
EGV 12 LR 1/2 WD
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread outer
G 1/2 BSP
Package size
0 pcs
Barcode
5704295348889
Gross weight
0,11 Kg
Net weight
0,11 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4.5%.
+50°C - +100°C = 11%.< br />+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
