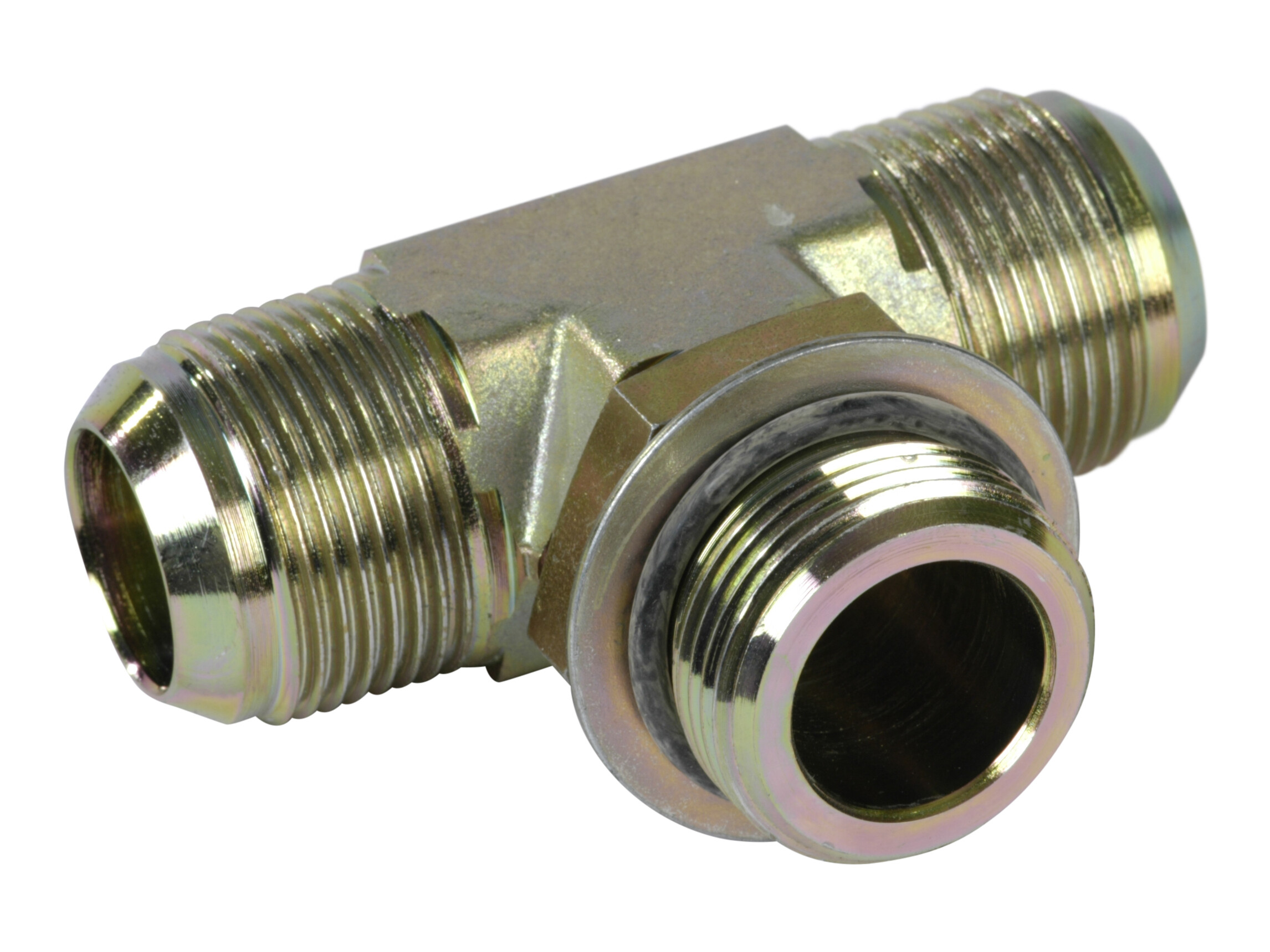

S585-25-33U Tee UNF
T-forskruning stilbar 1.5/16-12 JIC udv x 1.5/16-12 udv
Partnumber:
TOL-25-21/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
B
46 mm
B1
46 mm
Brand Name
FOR
C
52 mm
CH
38 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
25 mm
Dimension F
1.5/16-12 UNF
Dimension J1
1.5/16-12 JIC
J
1.5/16-12 JIC
Material
Steel
Pressure max.
290 bar
Surface treatment
Electro-galvanized / White chromatized
T
25 mm
T1
25 mm
Thread outer
1.5/16-12 JIC
Thread outer
1.5/16-12 UNF
Package size
0 pcs
Barcode
5704295980287
Gross weight
0,48 Kg
Net weight
0,48 Kg
Country of origin
ITA
Intrastat code
73071110
T-forskruning stilbar 1.5/16-12 JIC udv x 1.5/16-12 udv
