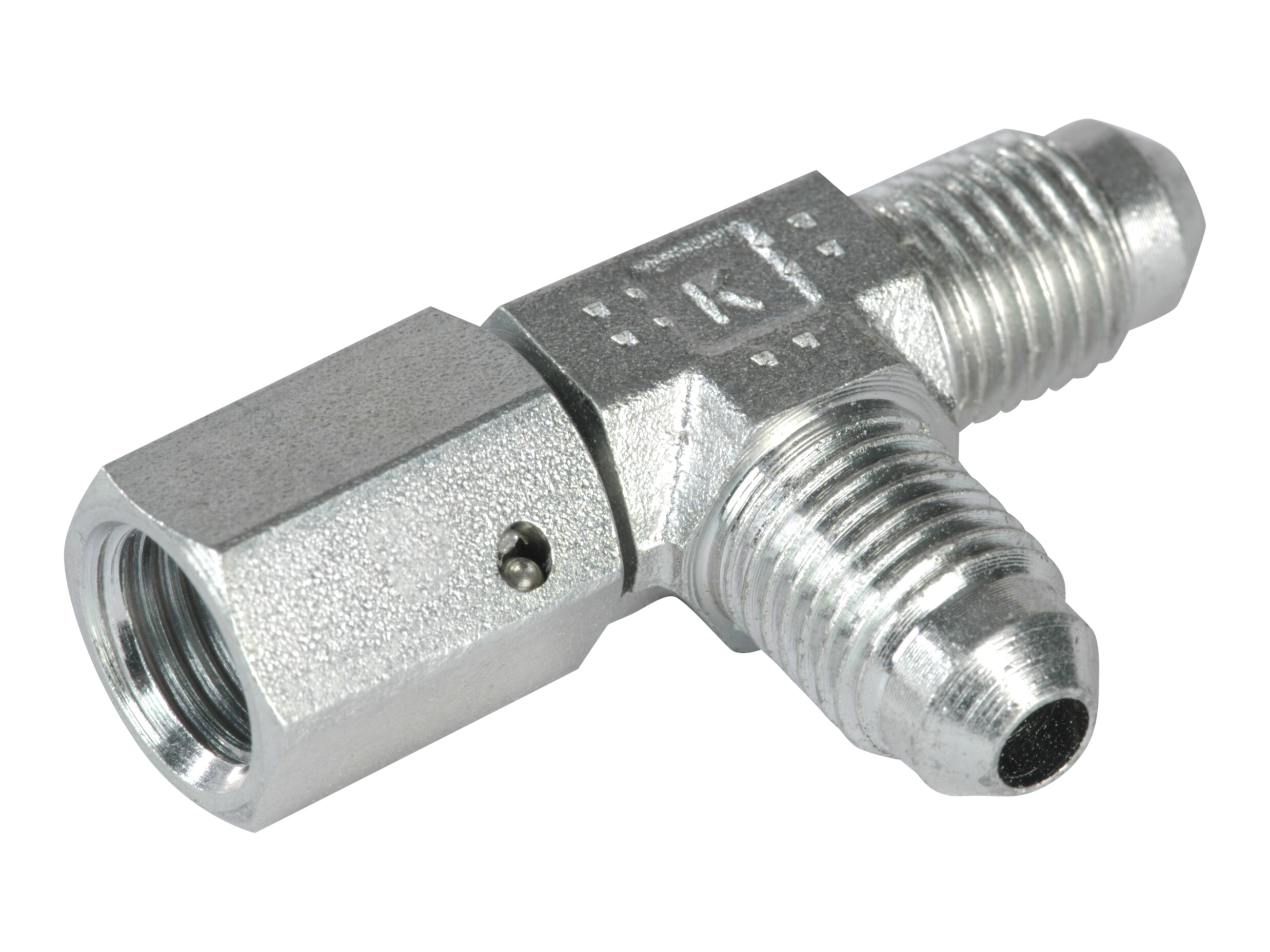

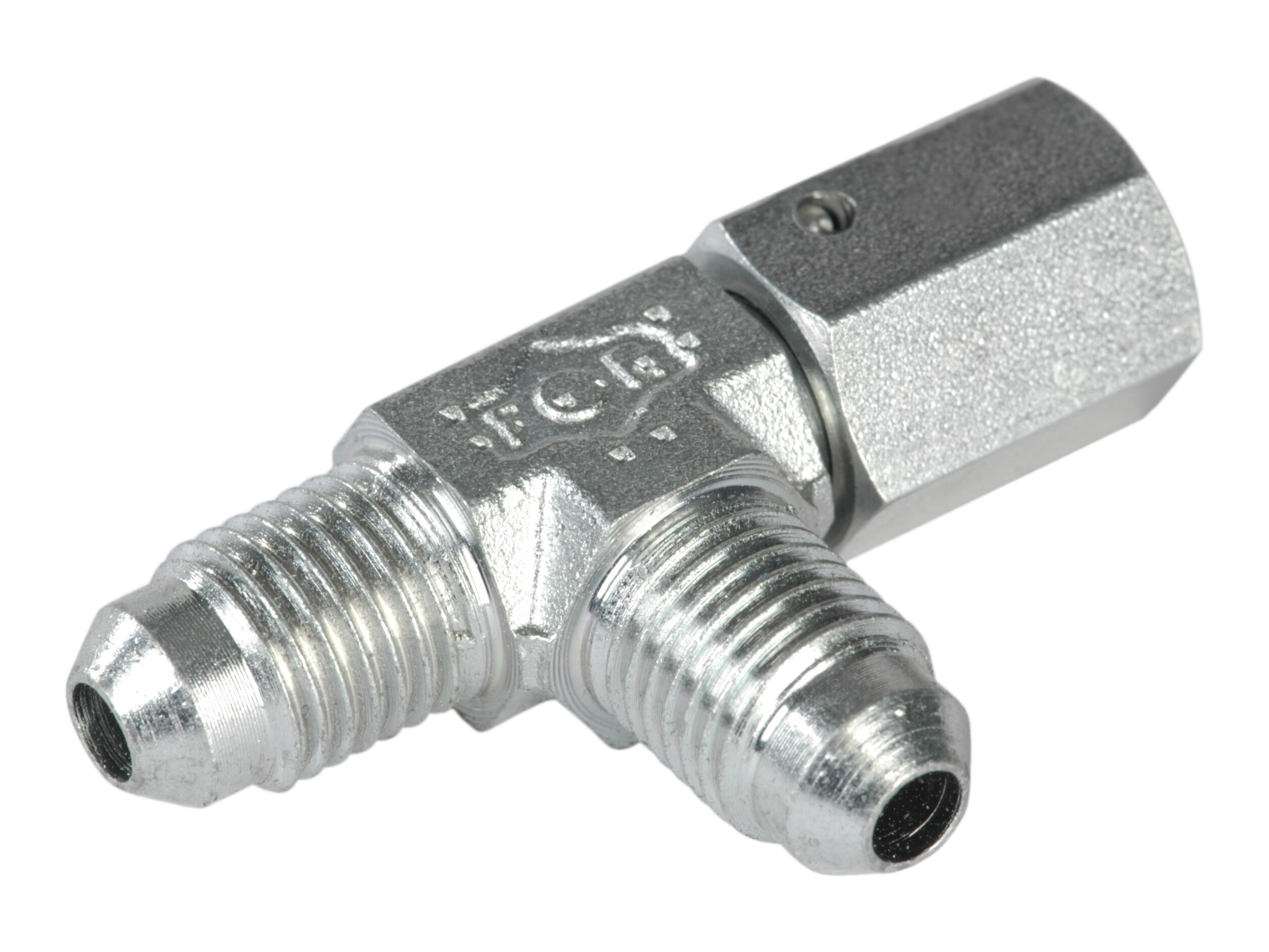

S680-06TG barrel Tee with nut
S680-06TG barrel Tee with nut
Partnumber:
TGD-06
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm
Dimension B
22.5 mm
Dimension B1
22.5 mm
Dimension C
26.5 mm
Dimension CH
14 mm
Dimension J
7/16-20 JIC
Dimension J1
7/16-20 JIC
Dimension J2
7/16-20 JIC
Dimension T
6 mm
Dimension T1
6 mm
Material
Steel
Pressure max.
450 bar
Surface treatment
Electro-galvanized / White chromatized
Thread inner
7/16-20 JIC
Thread outer
7/16-20 JIC
Package size
0 pcs
Barcode
5704334062097
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
ITA
Intrastat code
73071110
S680-06TG barrel Tee with nut
Note: Opening 3D files requires a program that supports the file format
