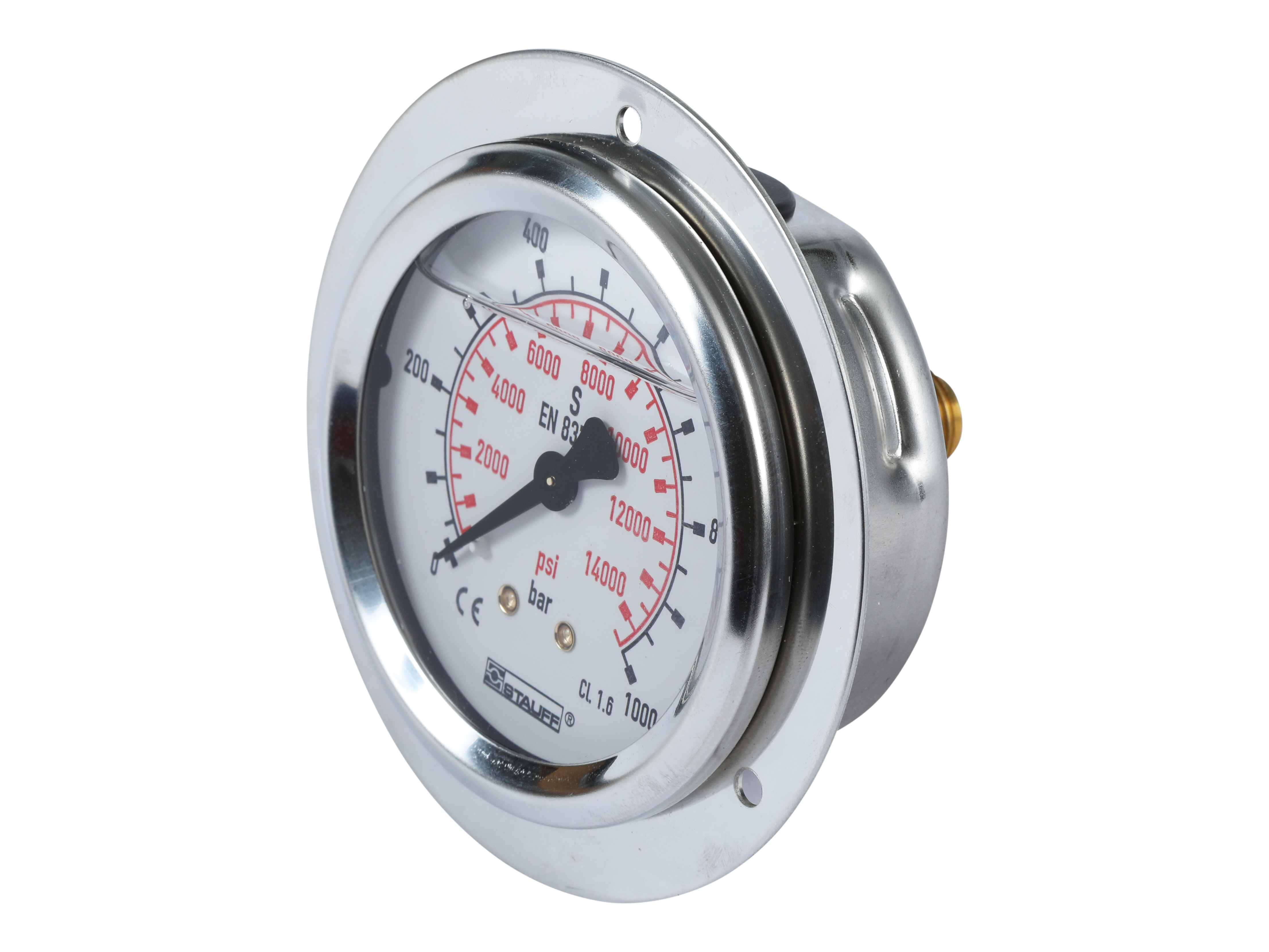

1/4" pressure gauge. Rear mount w. frontring. Scale 0-1000 b
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
Varenummer:
SPG0631000RF
Pakkestr.:
0 pcs
Min. bestillingsmengde er:
1 pcs
Diameter
63 mm
Gjenger
G 1/4 BSP
Glastype
Acrylic glass
Materiale
Stainless steel
Materialkvalitet
1.4301 / AISI304
Merke navn
Stauff
Modell kode
SPG-063-01000-01-P-B04-F
Portplassering
Rear
Temperatur maks.
+60 °C
Temperatur min.
-20 °C
Trykkindstilling maks.
1000 bar
Trykkmåling nøyaktighet
±1,6% FS
Tykkindstilling min.
0 bar
Pakkestr.
0 pcs
Strekkode
5704295681252
Bruttovekt
0,28 Kg
Nettovekt
0,28 Kg
Opprinnelsesland
DEU
Intrastat produktkode
90262040
Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.
Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.
!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
