Weld plate - DIN 4 Twin - Phosphated
Weld plate for mounting a DIN 3015 Part 3 pipe clamp in twin configuration to a machine frame or steel structure. The plate is designed to be welded in place and provides an M8 threaded mounting point for the clamp assembly.
The phosphated (black) surface treatment and the defined DIN size help ensure the plate dimensions match the selected clamp size. Key selection points are the DIN size, the thread, and the main dimensions for fit in the available mounting space.
Typical Applications
- Weld-on mounting point for twin pipe clamp installations
- Pipe, tube and hose routing where a welded base is used for clamp attachment
Varenummer:
SP4D
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs

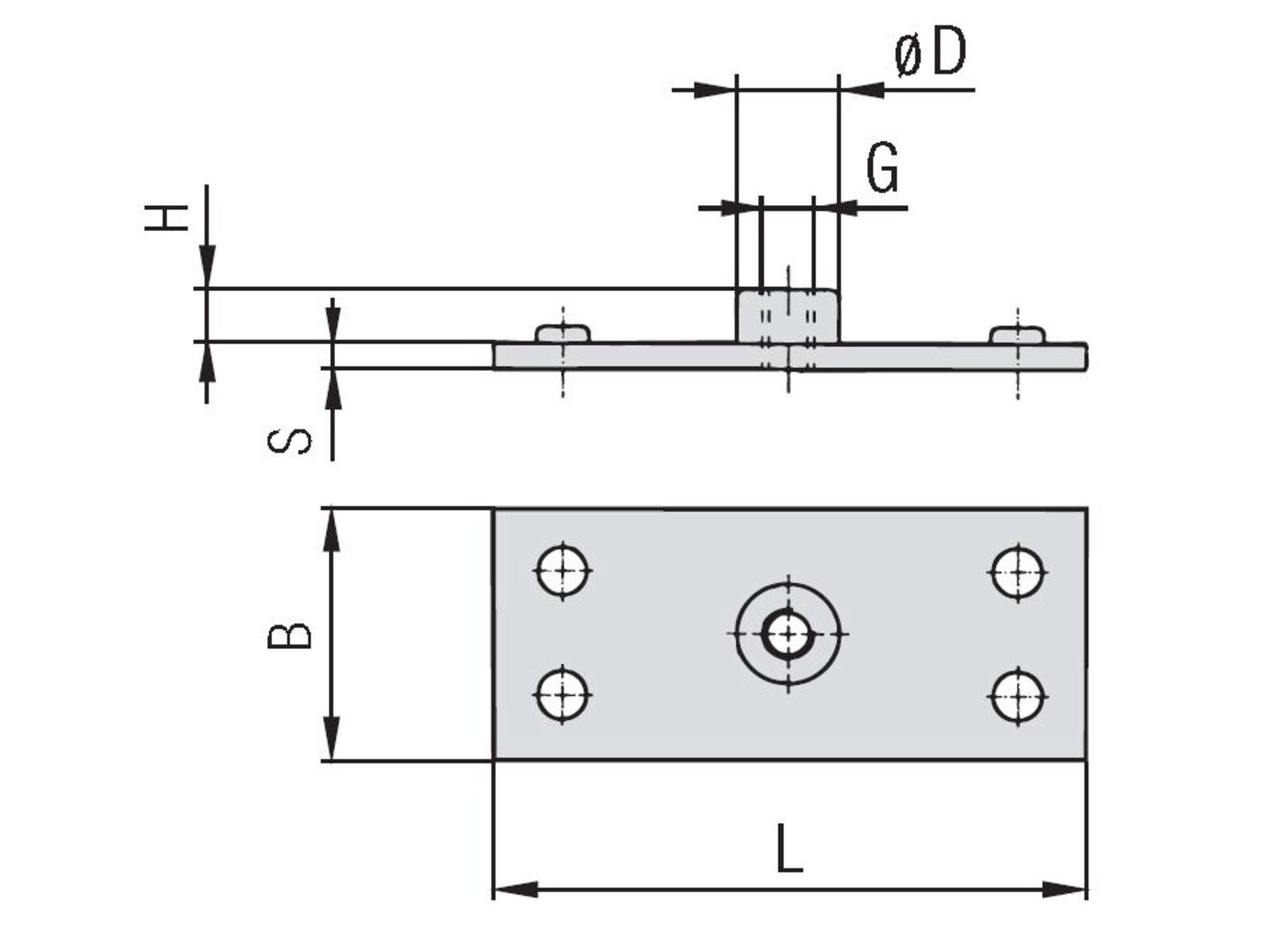

B
30 mm
Brand Name
Stauff
D
14 mm
DIN size
4
G
M8
Group Stauff
4D
H
6 mm
L
85 mm
Length
85 mm
Material
Steel
Model code
SP-4D-M-W2
Number of clamps
1
S
5 mm
Standard DIN
DIN 3015 part 3
Surface treatment
Phosphated (black)
Thread
M8
Width
30 mm
Pakke str.
0 pcs
Stregkode
5704295304953
Brutto vægt
0,10 Kg
Netto vægt
0,10 Kg
Oprindelsesland
DEU
Intrastat varekode
39259010
Weld plate for mounting a DIN 3015 Part 3 pipe clamp in twin configuration to a machine frame or steel structure. The plate is designed to be welded in place and provides an M8 threaded mounting point for the clamp assembly.
The phosphated (black) surface treatment and the defined DIN size help ensure the plate dimensions match the selected clamp size. Key selection points are the DIN size, the thread, and the main dimensions for fit in the available mounting space.
Typical Applications
- Weld-on mounting point for twin pipe clamp installations
- Pipe, tube and hose routing where a welded base is used for clamp attachment
