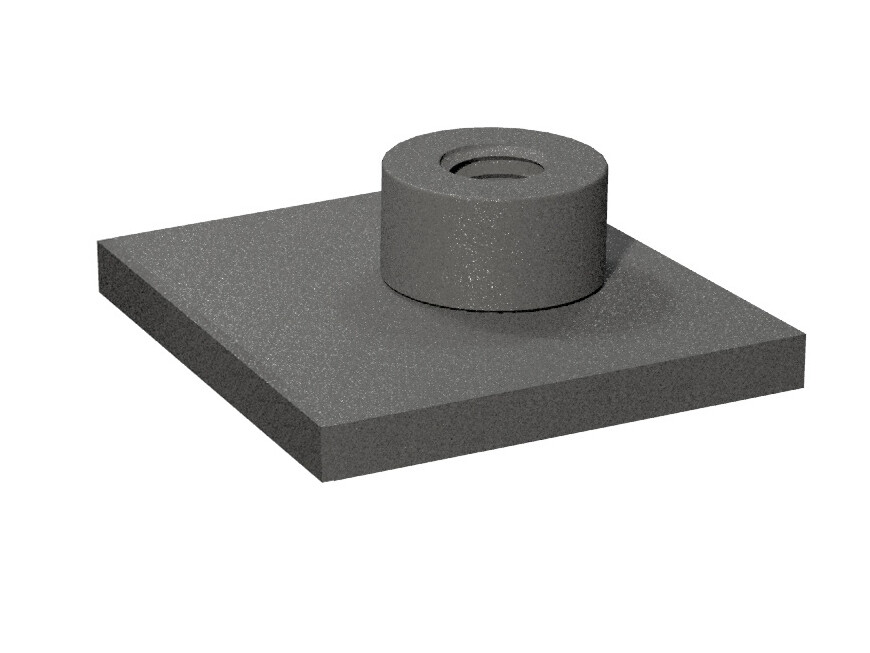

Weld plate - DIN 0 - ZiNi

Weld plate - DIN 0 - ZiNi

Weld plate - DIN 0 - ZiNi

Weld plate - DIN 0 - ZiNi - SP-1-W3

Partnumber:

SP1/ZN

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Brand Name

Stauff

DIN size

0

Dimension B

30 mm

Dimension D

12 mm

Dimension H

6.5 mm

Dimension L1

31.5 mm

Dimension L2

10 mm

Dimension S

3 mm

Group Stauff

1

Length

31.5 mm

Material

Steel

Model code

SP-1-M-W3

Number of bolts

1

Number of clamps

1

Standard DIN

DIN 3015 part 1

Surface treatment

Zinc-Nickel plated

Width

30 mm

Package size

0 pcs

Barcode

5704334587378

Gross weight

0,03 Kg

Net weight

0,03 Kg

Country of origin

DEU

Intrastat code

39259010

Product information

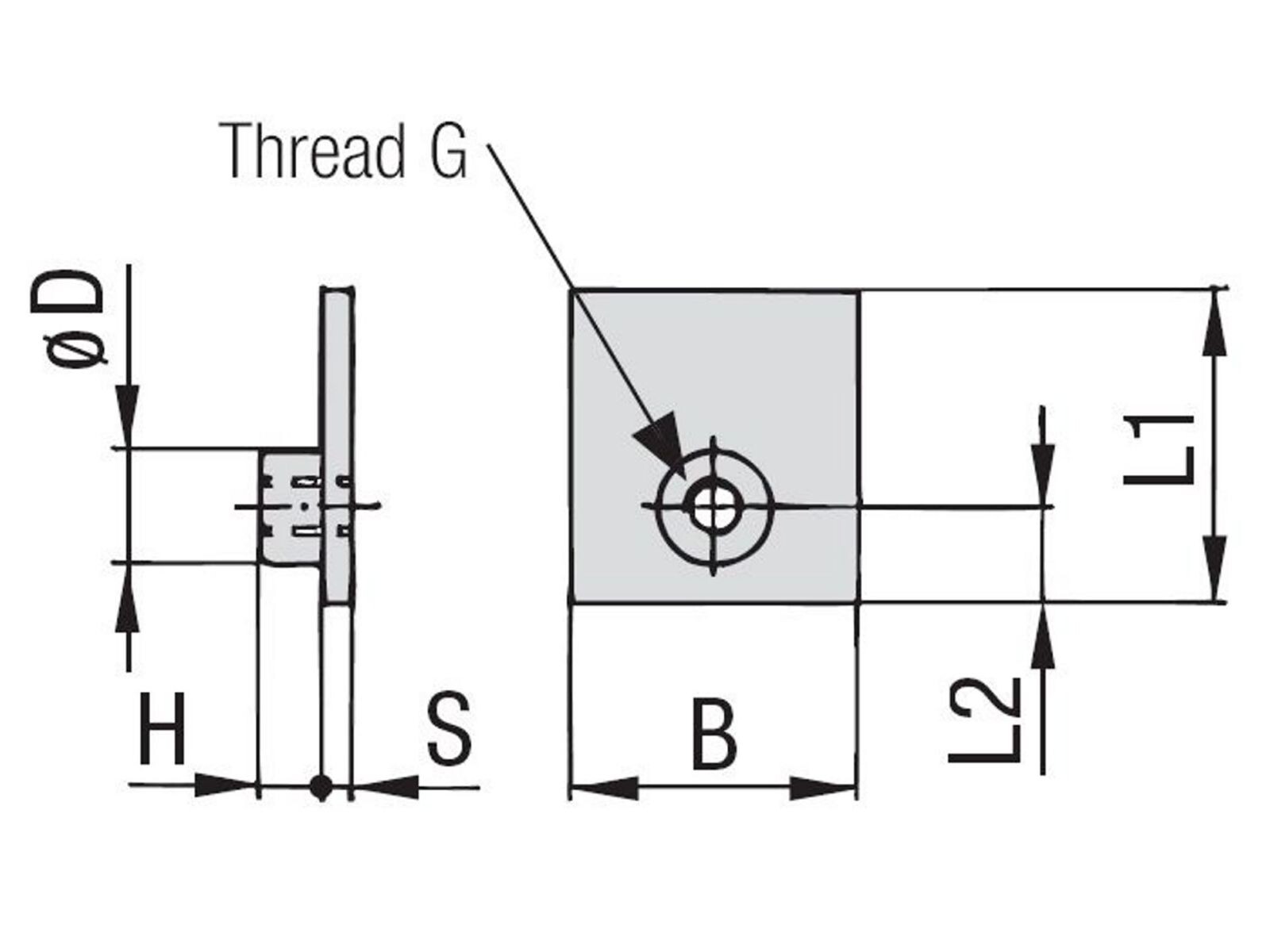

Measure sketch

Weld plate - DIN 0 - ZiNi - SP-1-W3

Note: Opening 3D files requires a program that supports the file format

Weld plate - DIN 0 - ZiNi
