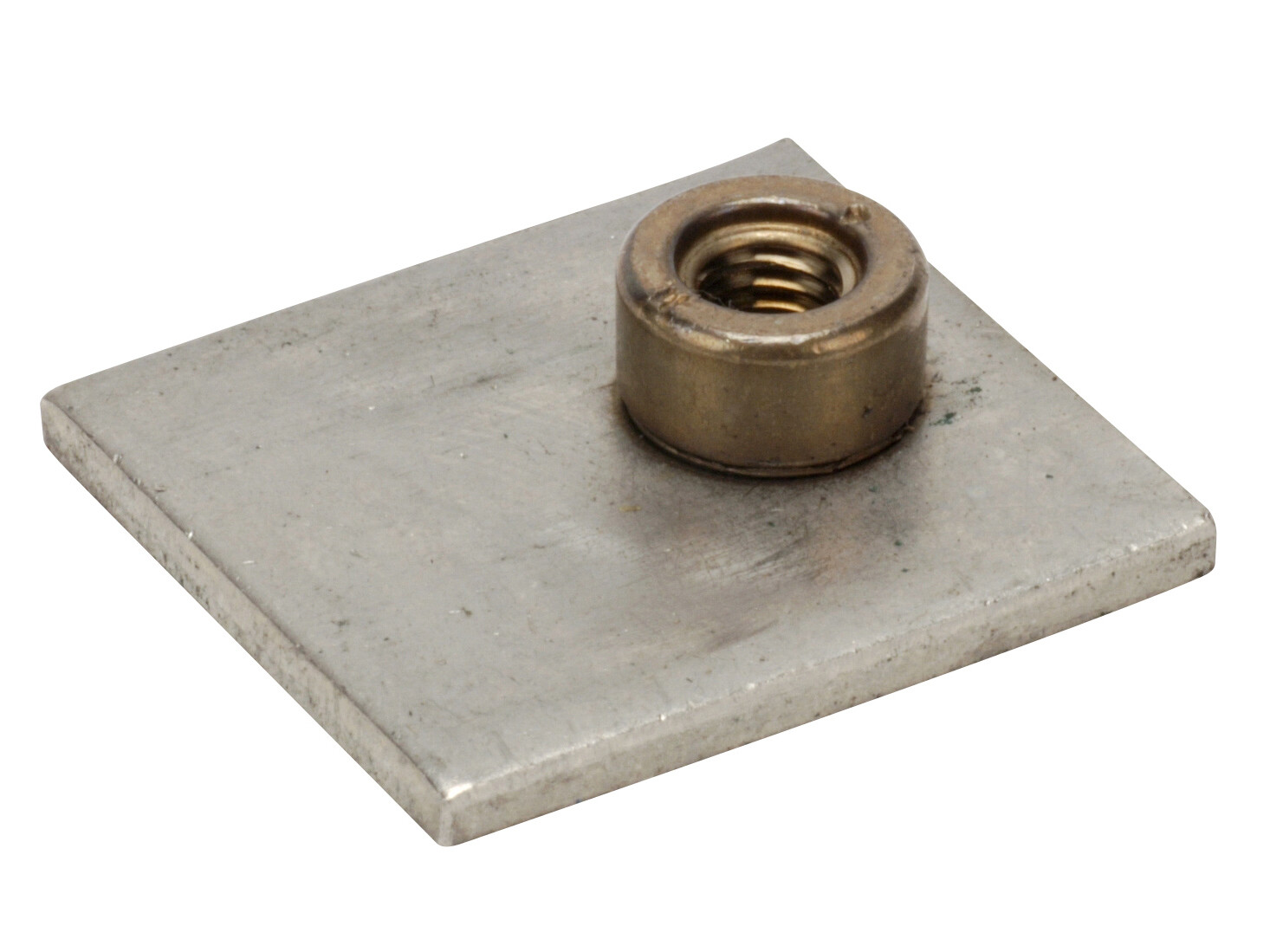

Weld plate - DIN 0 - Stainless
Weld plate for pipe clamp assemblies, designed as a welded base for mounting a single clamp in installations according to DIN 3015 Part 1. The plate is welded to a supporting structure and provides a threaded connection point for the clamp fastener.
Manufactured in stainless steel quality 1.4571 / AISI 316Ti and supplied with a metric M6 thread. The specified plate dimensions help confirm fit and mounting space in the clamp layout.
Typical Applications
- Welded mounting base for pipe, tube or hose clamp installations
- Hydraulic line routing where a weld-on clamp mounting point is required
Partnumber:
SP1/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Antal rørholdere
1
B
30 mm
Bredde
30 mm
D
12 mm
DIN størrelse
0
G
M6
Gevind
M6
Gevind metrisk
M6
Gruppe Stauff
1
H
6,5 mm
L1
31,5 mm
L2
10 mm
Længde
31.5 mm
Materiale
Stainless steel
Materialekvalitet
1.4571 / AISI316Ti
Model kode
SP-1-M-W5
Mærke navn
Stauff
S
3 mm
Standard DIN
DIN 3015 part 1
Package size
0 pcs
Barcode
5704295323152
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
DEU
Intrastat code
39259010
Weld plate for pipe clamp assemblies, designed as a welded base for mounting a single clamp in installations according to DIN 3015 Part 1. The plate is welded to a supporting structure and provides a threaded connection point for the clamp fastener.
Manufactured in stainless steel quality 1.4571 / AISI 316Ti and supplied with a metric M6 thread. The specified plate dimensions help confirm fit and mounting space in the clamp layout.
Typical Applications
- Welded mounting base for pipe, tube or hose clamp installations
- Hydraulic line routing where a weld-on clamp mounting point is required
