Safety locking plate - DIN 3 - ZiNi

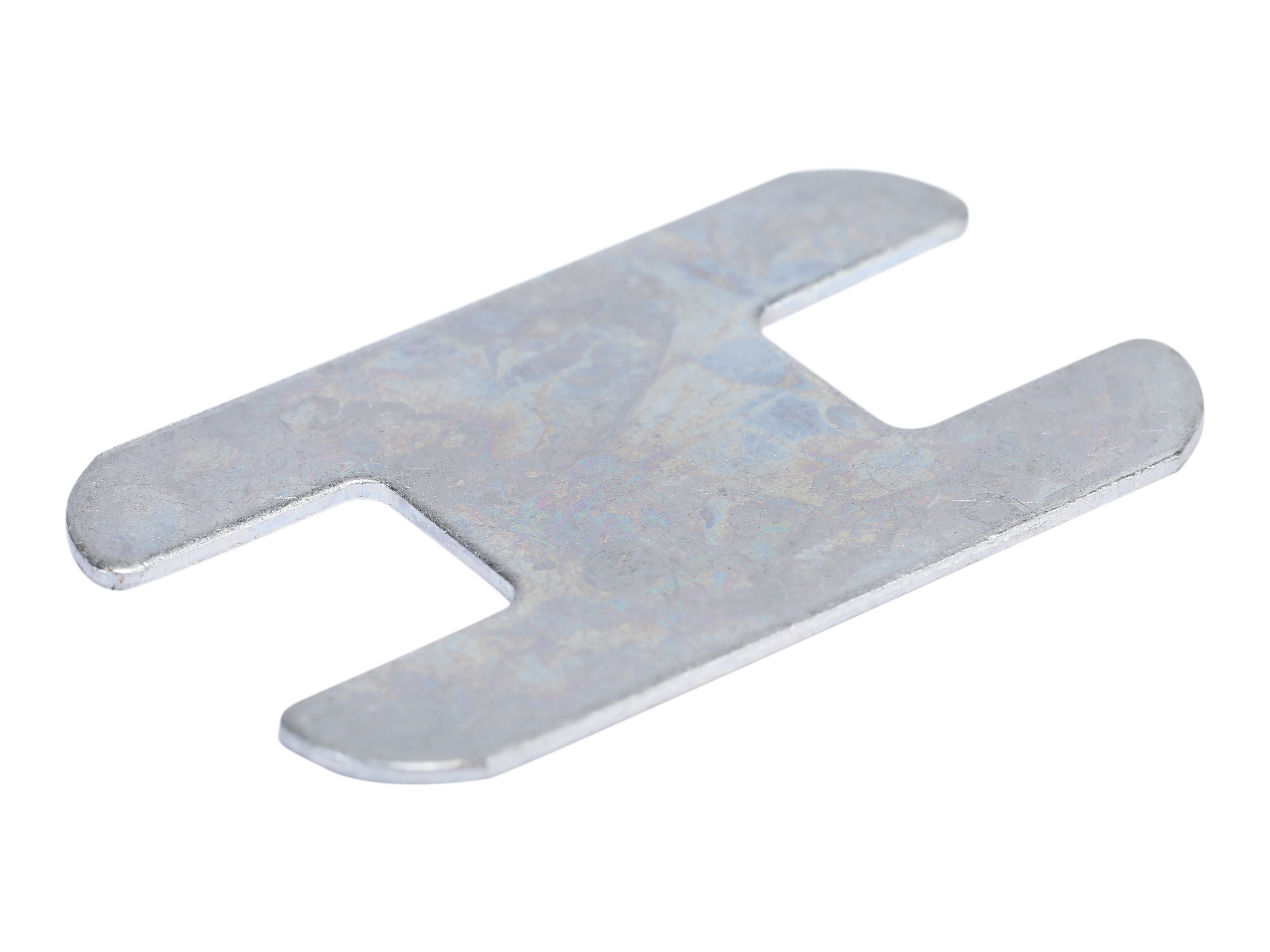

Safety locking plate for pipe clamp assemblies, used together with a stacking bolt to mechanically lock stacked clamp components in place.
Designed for DIN size 3 in the DIN 3015 Part 1 standard series. Key selection dimensions are L 47 mm, B1 28 mm, B2 11,2 mm and thickness S 1 mm. Carbon steel execution with zinc-nickel surface treatment.
Typical Applications
- Locking and securing stacked components in pipe clamp installations
- Hydraulic pipe and tube routing where clamp stacks are used
Partnumber:
SIG3
Package size:
0 pcs
Min. order quantity is:
1 pcs
B1
28 mm
B2
11,2 mm
Brand Name
Stauff
DIN size
3
Group Stauff
3
L
47 mm
Length
47 mm
Material
Steel
Material quality
St. 8.8
Model code
SIG-3-W3
S
1 mm
Standard DIN
DIN 3015 part 1
Surface treatment
Zinc-Nickel plated
Width
28 mm
Package size
0 pcs
Barcode
5704295305981
Gross weight
0,01 Kg
Net weight
0,01 Kg
Country of origin
DEU
Intrastat code
39259010
