Insert 1/2" - M18x1.5 nut 12L
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
Partnumber:
P0812RO18A
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rør
12 mm

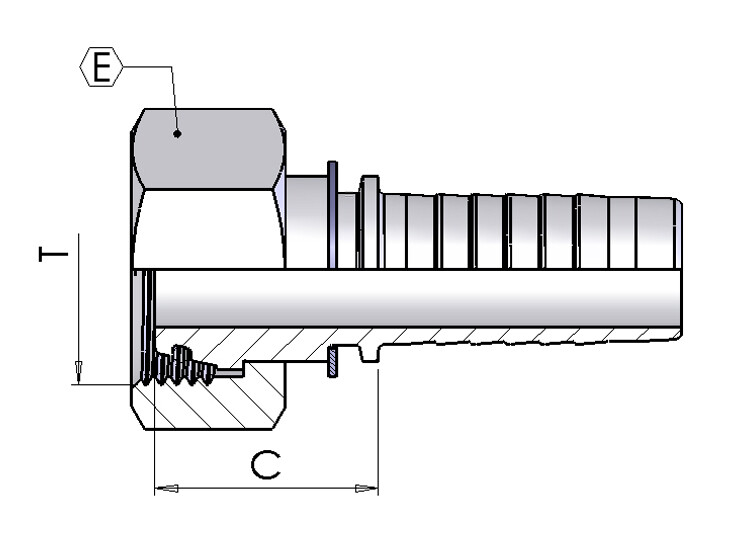

Dimension C
28 mm
Dimension E
24 mm
Dimension T metrisk
M18x1,5
Korrosions resistens
720 hours salt spray DIN EN ISO 9227
Materiale
Steel
Model kode
0085-08-18
Mærke navn
I.M.M Hydraulics
Nøglevidde
22 mm
Overfladebehandling
Electro-galvanized / White chromatized
Pakningsmateriale
NBR
Serie
L
Slangekoblingstype
For separate ferrule
Slangestørrelse
1/2 "
Temperatur maks.
+100 °C
Temperatur min.
-30 °C
Tilspændingsmoment
41 Nm
Tryk maks.
330 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704334323648
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
ITA
Intrastat code
73269098
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
Note: Opening 3D files requires a program that supports the file format
