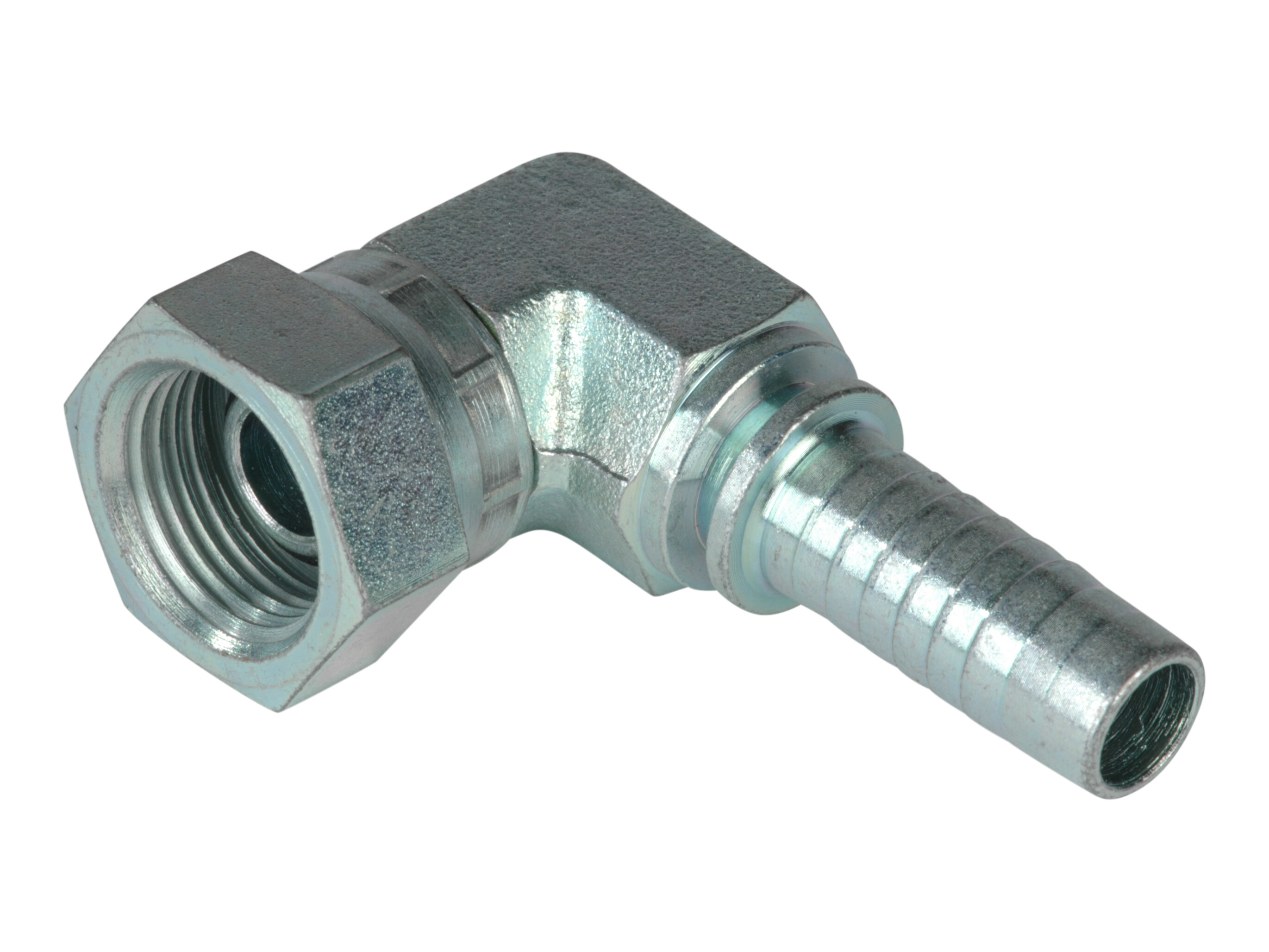

Insert 3/8" - 3/8" BSP nut 90S

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).

Varenummer:

P0606NO90S

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifikationer
Dimensioner og forsendelse

Angle

90 °

Brand Name

I.M.M Hydraulics

Dimension C

23.5 mm

Dimension E

22 mm

Dimension E1

17 mm

Dimension H

23 mm

Dimension T

G 3/8 BSP

Hose coupling type

For separate ferrule

Hose size

3/8 "

Material

Steel

Model code

2310-06-06

Sealing material

NBR

Surface treatment

Electro-galvanized / White chromatized

Temperature max.

+100 °C

Temperature min.

-30 °C

Thread

G 3/8 BSP

Torque tightening

27 Nm

Pakke str.

0 pcs

Stregkode

5704295725895

Brutto vægt

0,09 Kg

Netto vægt

0,09 Kg

Oprindelsesland

ITA

Intrastat varekode

73269098

Produkt information
Målskitse

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).
