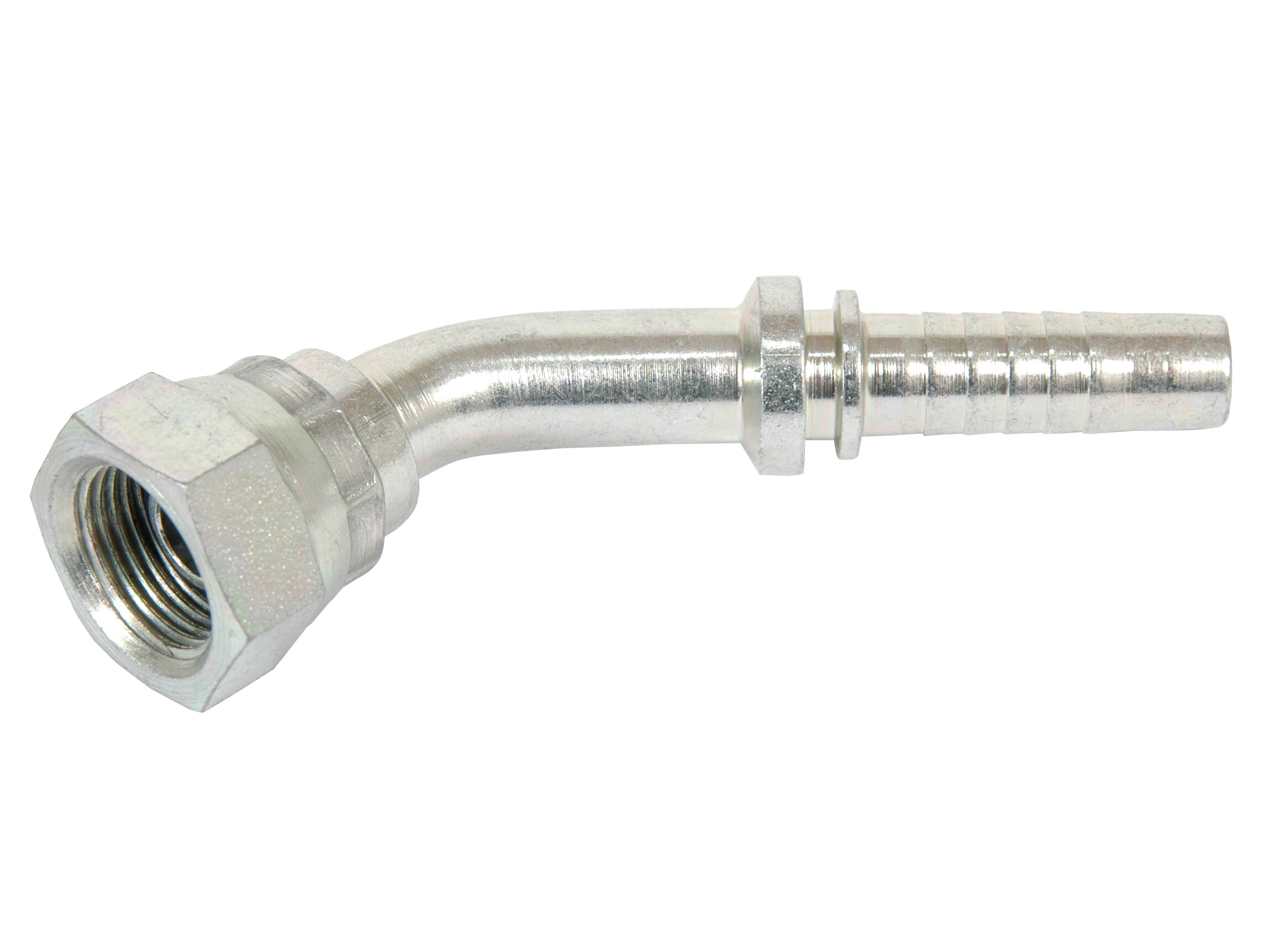

Insert 1/4" - 1/4" BSP nut 45° w. cap

Insert with nut and BSP female thread.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).

Artikelnummer:
P0404NO45

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs

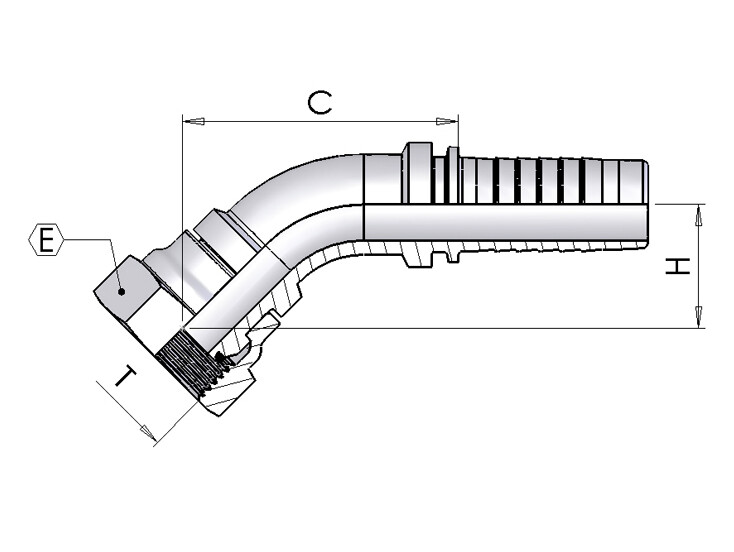

Dimension C
41 mm

Dimension E
19 mm

Dimension H
15 mm

Dimension T
G 1/4 BSP

Gänga
G 1/4 BSP

Modell kod
0241-04-04

Märke namn
I.M.M Hydraulics

Packningsmaterial
NBR

Slangdimension
1/4 "

Slangkopplingstyp
For separate ferrule

Temperatur max.
+100 °C

Temperatur min.
-30 °C

Tillverkningsmaterial
Steel

Vinkel
45 °

Ytskiktbehandling
Electro-galvanized / White chromatized

Åtdragning moment
20 Nm
Förpackningsstorlek
0 pcs

Streckkod
5704295723051

Bruttovikt
0,04 Kg

Nettovikt
0,04 Kg

Ursprungsland
ITA

Intrastat artikelkod
73269098

Insert with nut and BSP female thread.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).
