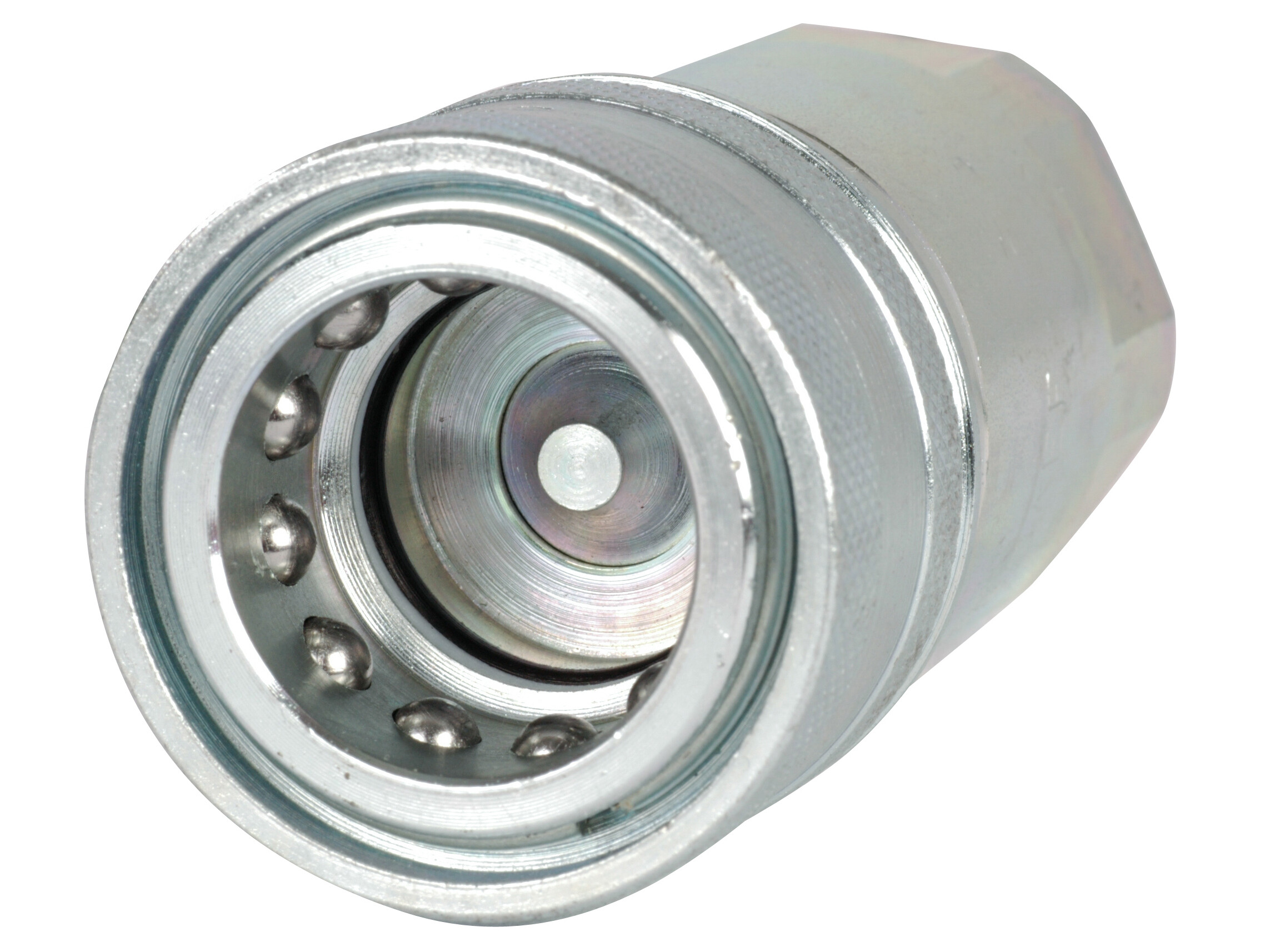

Coupling female NV (ISO-A) - DN12 - 7/8"UNF

Standard quick coupler.

Connection system: pulling back the sleeve.

Disconnection system: pulling back the sleeve.

Shut off system: poppet valve.

Connectability: without pressure.

Disconnection under pressure: not allowed.

Partnumber:
NV12-58SAEF

Package size:
0 pcs

Min. order quantity is:
1 pcs
Coupling male NV (ISO-A) - DN12 - 7/8"UNF
Partnumber: NV12-58SAEM
Dustplug orange for NV12 femal ISO7241-1A, FASTER
Partnumber: TM12LA
Dustplug blue for NV12 female ISO7241-1A, FASTER
Partnumber: TM12LB
Dustplug yellow for NV12 femal ISO7241-1A, FASTER
Partnumber: TM12LG
Replaced by B328 TM12LN FASTER black
Partnumber: TM12LN
Dustplug red for NV12 female ISO7241-1A, FASTER
Partnumber: TM12LR
Pvcprop grøn t/NV12 hunpart ISO7241-1A, FASTER
Partnumber: TM12LV
sealkit female NV12 (10) o-ring + antiextrusion
Partnumber: SKNV12
Brand Name
Faster

Burst Pressure
130 MPa

Connection
Sleeve Retraction

Corrosion resistance
500 hours salt spray ISO 9227

DN
12.5 mm

Dimension A
7/8-14 UNF

Dimension D1
38 mm

Dimension L1
69.5 mm

Disconnection
Sleeve Retraction

Field of application
Agriculture, Industry

Flow Rate
75 lpm

Flow rate nominal LMin
75 lpm

Force To Connect
80 N

Hexagon
32 mm

ISO size
12.5

Material
Steel

Model code
NV 12-58SAE F

Pressure max.
60 bar

Pressurized connection
Not allowed

Sealing material
NBR

Size
12.5 mm

Size
1/2 "

Spillage
1,8 ml

Standard ISO
ISO 11926-1

Surface treatment
MATE 500 (CrIII)

Temperature max.
+125 °C

Temperature min.
-25 °C

Thread
7/8-14 UNF

Thread inner
7/8-14 UNF

Thread inner
7/8-14 SAE

Valve type
Poppet

Working Pressure
30 MPa
Package size
0 pcs

Barcode
5704334244578

Gross weight
0,33 Kg

Net weight
0,33 Kg

Country of origin
ITA

Intrastat code
84812010

Standard quick coupler.

Connection system: pulling back the sleeve.

Disconnection system: pulling back the sleeve.

Shut off system: poppet valve.

Connectability: without pressure.

Disconnection under pressure: not allowed.
