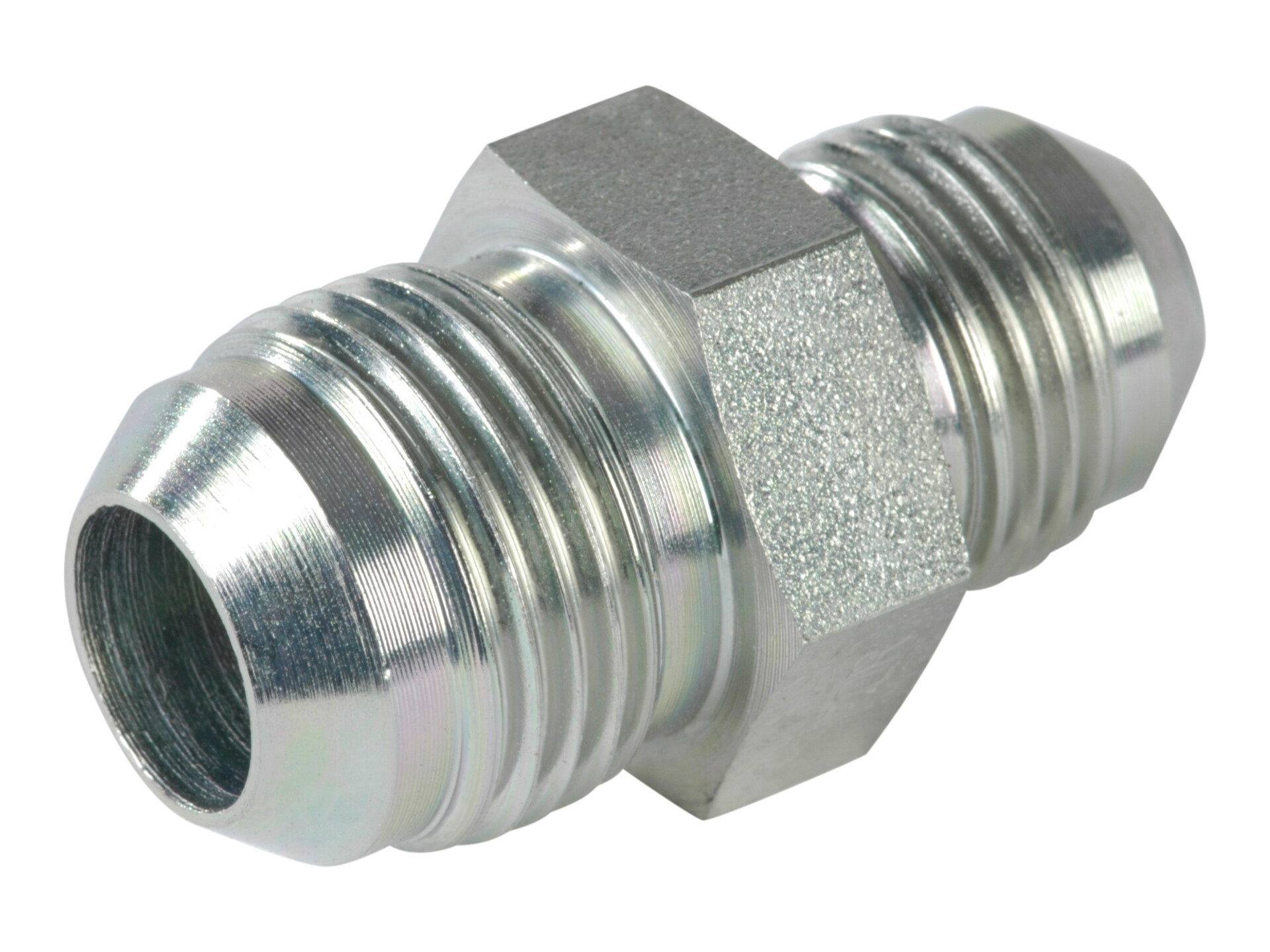

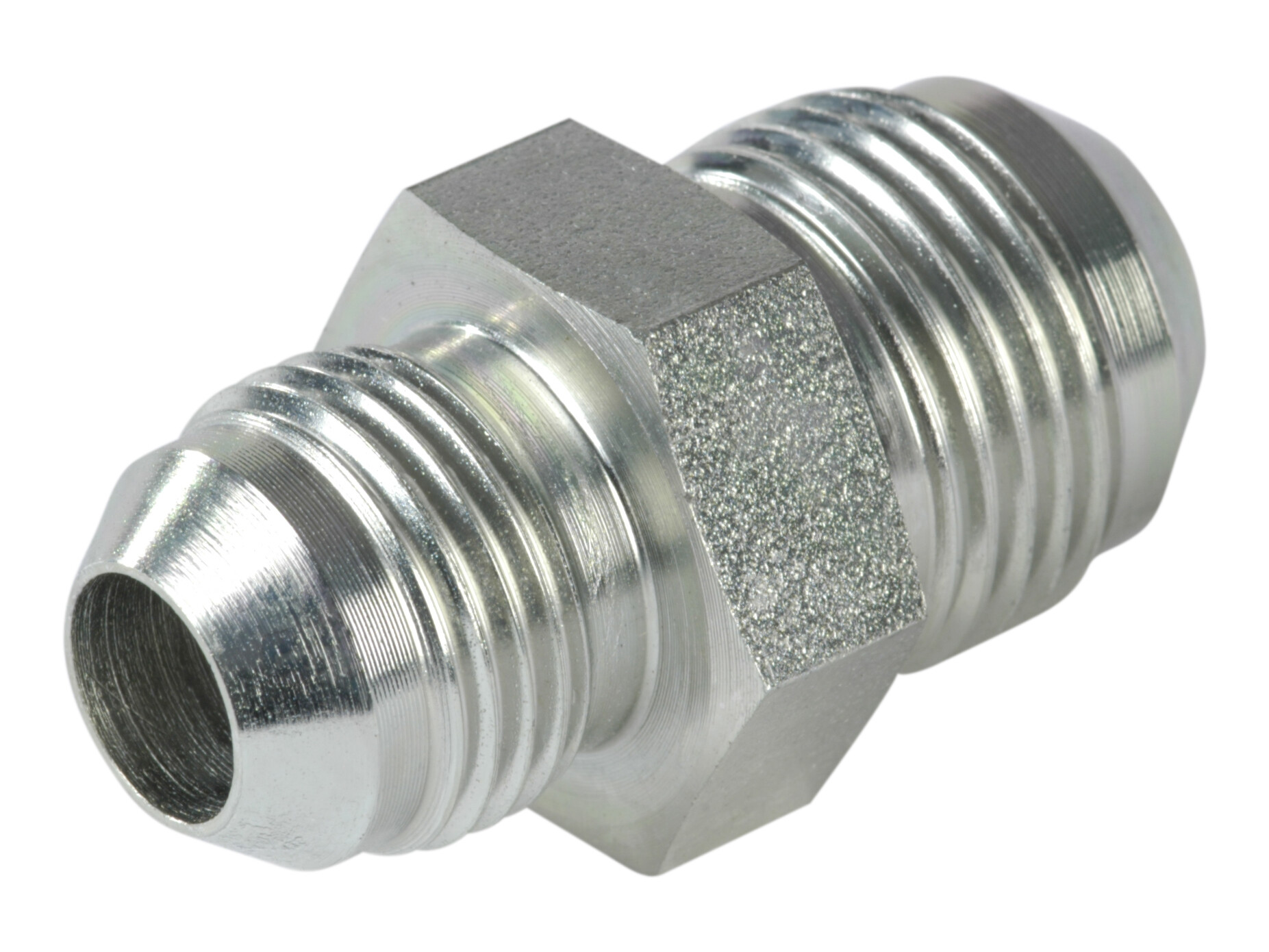

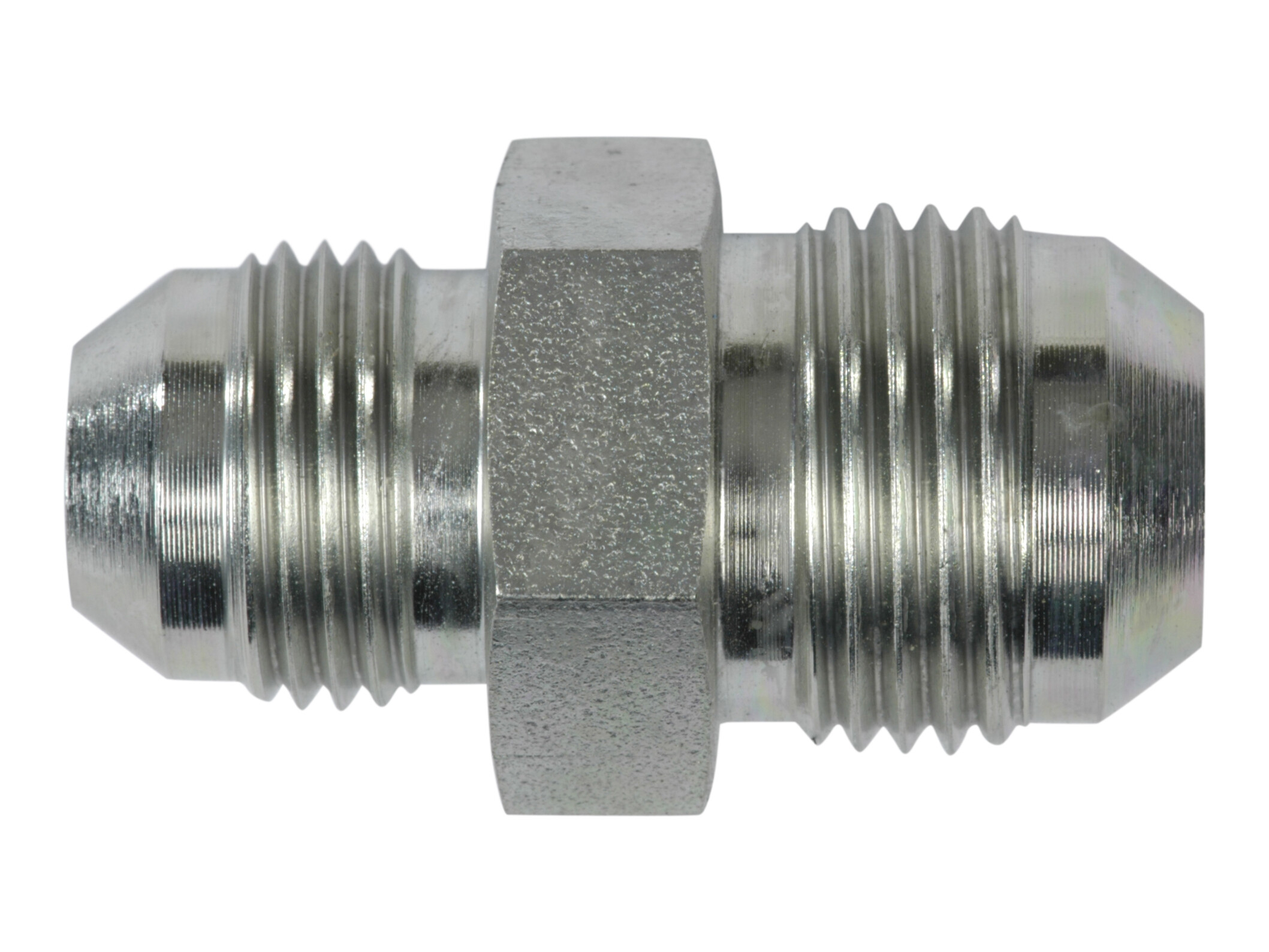

Straight fitting, reduction
Straight fitting, reduction
Partnumber:
MU-16-12
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe 1
16 mm
Diameter pipe 2
12 mm
Dimension A
45 mm
Dimension B
19.5 mm
Dimension B1
17 mm
Dimension CH
24 mm
Dimension J
7/8-14 JIC
Dimension J1
3/4-16 JIC
Dimension T
16 mm
Dimension T1
12 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
3/4-16, 7/8-14 JIC
Package size
0 pcs
Barcode
5704334214304
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
ITA
Intrastat code
73071110
Straight fitting, reduction
Note: Opening 3D files requires a program that supports the file format
