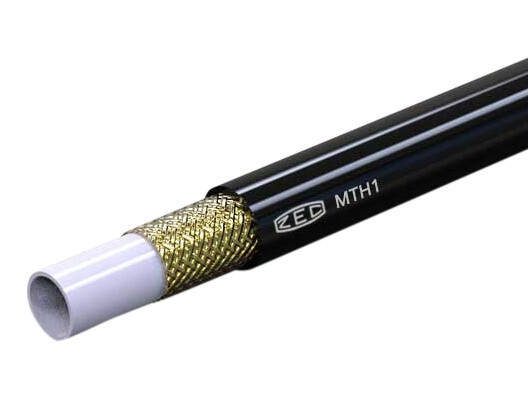

5/16" Thermoplastic hose MTH1 - 240 bar
Tube: Thermoplastic polyester.
Reinforcement: 1 layer high tensile steel wire braid.
Cover: Polyurethane.
Max. working temperature with air, water and fluids containing water: +65°C.
Partnumber:
MTH105
Package size:
0 m
Min. order quantity is:
1 m
Bend radius
50 mm
Brand Name
ZEC
Color
Black
Cover
Polyurethane
Diameter outer
14 mm
Hose size
5/16 "
Hose type
MTH1
Pressure burst min.
960 bar
Pressure max.
240 bar
Reinforcement
1 layer high tensile steel wire braid
Standard EN
EN 853 1ST
Standard SAE
SAE 100R1
Temperature max.
+100 °C
Temperature min.
-40 °C
Tube
Thermoplastic polyester
Package size
0 m
Barcode
5704295763798
Gross weight
0,25 Kg
Net weight
0,25 Kg
Country of origin
ITA
Intrastat code
40092100
Tube: Thermoplastic polyester.
Reinforcement: 1 layer high tensile steel wire braid.
Cover: Polyurethane.
Max. working temperature with air, water and fluids containing water: +65°C.
Crimp dimensions for MTH105
|
Hose type |
Diamter - inch |
Hose coupling type |
Ferrule |
Crimp dimension - mm |
Skiving - int. |
Skiving - ext. |
Operating pressure |
|---|---|---|---|---|---|---|---|
| MTH105 | 5/16 | P05 | P05310 |
17.0 mm
±0.1
|
No | No | 240 |
