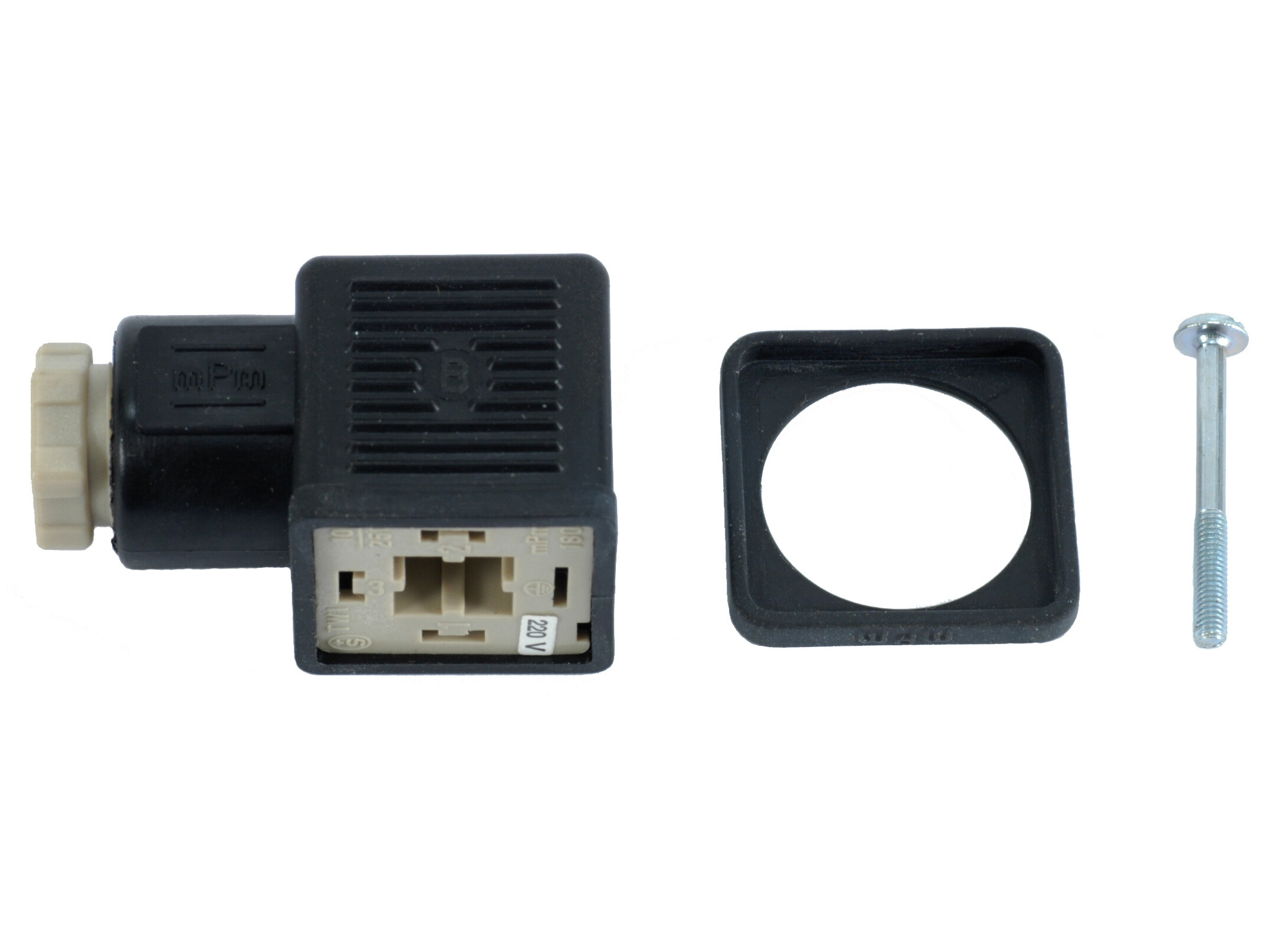

KONTAKT MPM DIN-A LED+VAR 220V

Din-connector according to EN 175301-803 (DIN 43650). Comes with cable connection, holding screw and gasket.

VDR = Protects coil against transients (voltage peaks) when breaking currenct.

Cable connection: Screw terminals Cross-sectional area : 0,5 - 1,5 mm2

Partnumber:
MPM182-09D

Package size:
0 pcs

Min. order quantity is:
1 pcs
Color
Black

Comment
PG9

Current max.
3 A

Current type
AC, DC

Diameter cable max.
8 mm

Diameter cable min.
6 mm

Number of LED's
0

Number of connectorpins
4

Overvoltage protection
VDR

Plug type
DIN 43650 Form A

Rectifier built-in
No

Sealing material
NBR

Standard DIN
DIN 43650

Standard EN
EN 175301-803

Standard ISO
ISO 4400

Temperature max.
+125 °C

Temperature min.
-40 °C

Voltage max.
230 V
Package size
0 pcs

Barcode
5704295038971

Gross weight
Kg

Net weight
Kg

Country of origin
swe

Intrastat code
84812010

Din-connector according to EN 175301-803 (DIN 43650). Comes with cable connection, holding screw and gasket.

VDR = Protects coil against transients (voltage peaks) when breaking currenct.

Cable connection: Screw terminals Cross-sectional area : 0,5 - 1,5 mm2
