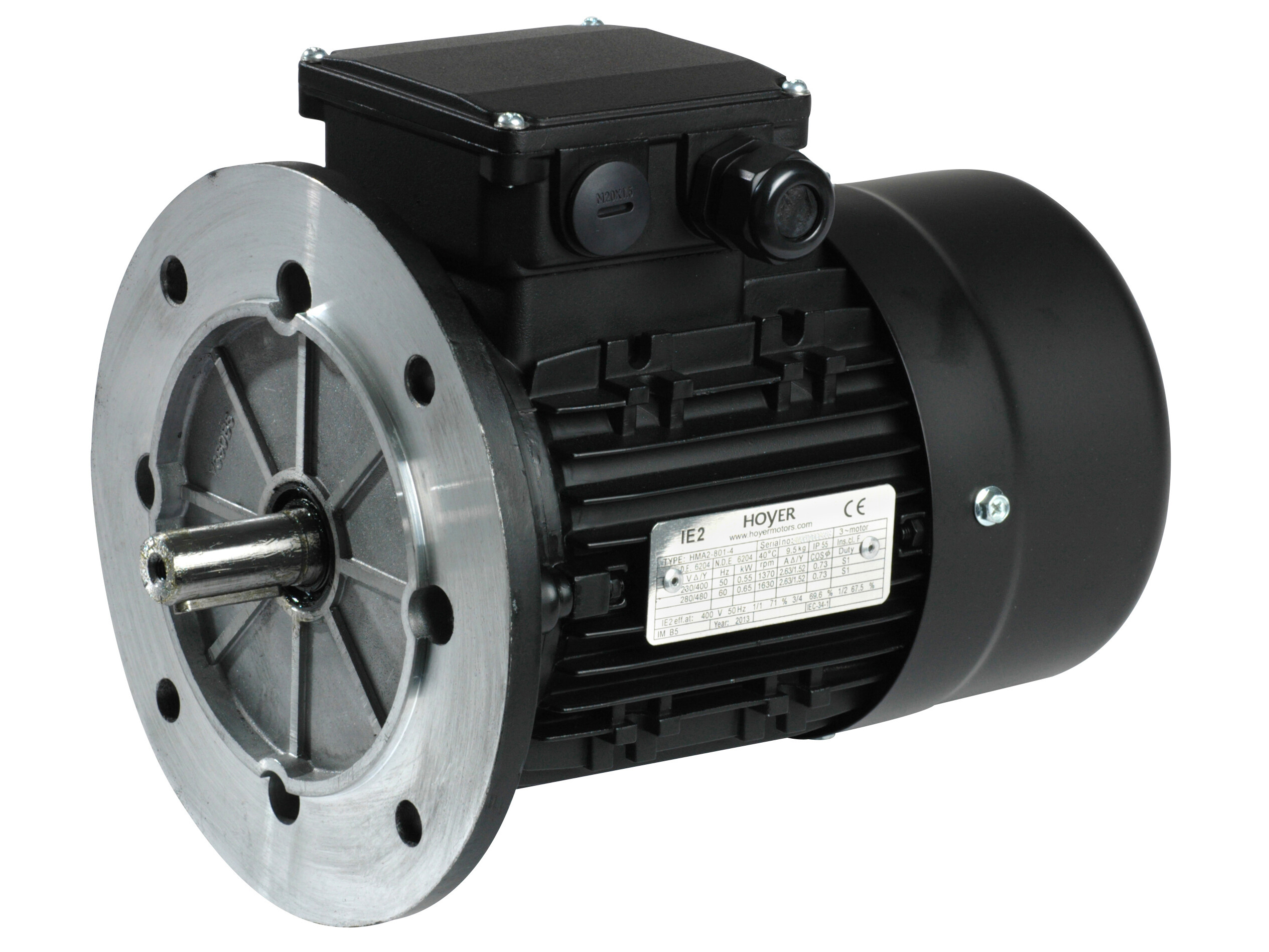

HMA2 80 1400 rpm 0,55 Kw 4 pol B5/200 IE2,black 230/400V
Asynchronous three-phase motor 230/400V, fan-cooled standardized electric motor with squirrel-cage rotor, insulation class F, with class-B temperature rise for most motors, IP55, EFF2
Rated power delivered on continuous duty (S1) and referred to nominal voltage and frequency, maximum ambient temperature of 40° C and maximum altitude 1000 m. (EN 60034-1).
Oil seal rings on shaft.
Fan is protected by a cover with IP 2X protection-degree. (EN 60034-5). Housing in pressure-die cast aluminium-alloy with detachable feet. Shield and fl anges in aluminium.
Paint: motors are painted with nitro-combined blue colour RAL 5010 unaffected by normal industrial environments and suitable for further fi nishing with single-compound synthetic paints.
Artikelnummer:
M0804055200
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Bolts spacing
165 mm
Current type
AC
Diameter Bolt hole
12,0 mm
Diameter flange
200 mm
Efficiency class
IE2
Insulation class
IP 55
Material
Aluminium
Motor size
80 IEC
Mountingtype
B5
Number of motor poles
4
Power
0.55 kW
Power
0.75 Hp
Recess
130,0 mm
Rotational speed at 50 Hz
1370 rpm
Shaft diameter
19 mm
Shaft keyway
6,0 mm
Shaft type
Cylindrical
Voltage
230, 400 V
Förpackningsstorlek
0 pcs
Streckkod
5704334413646
Bruttovikt
9,00 Kg
Nettovikt
9,00 Kg
Ursprungsland
DNK
Intrastat artikelkod
85015220
Asynchronous three-phase motor 230/400V, fan-cooled standardized electric motor with squirrel-cage rotor, insulation class F, with class-B temperature rise for most motors, IP55, EFF2
Rated power delivered on continuous duty (S1) and referred to nominal voltage and frequency, maximum ambient temperature of 40° C and maximum altitude 1000 m. (EN 60034-1).
Oil seal rings on shaft.
Fan is protected by a cover with IP 2X protection-degree. (EN 60034-5). Housing in pressure-die cast aluminium-alloy with detachable feet. Shield and fl anges in aluminium.
Paint: motors are painted with nitro-combined blue colour RAL 5010 unaffected by normal industrial environments and suitable for further fi nishing with single-compound synthetic paints.
