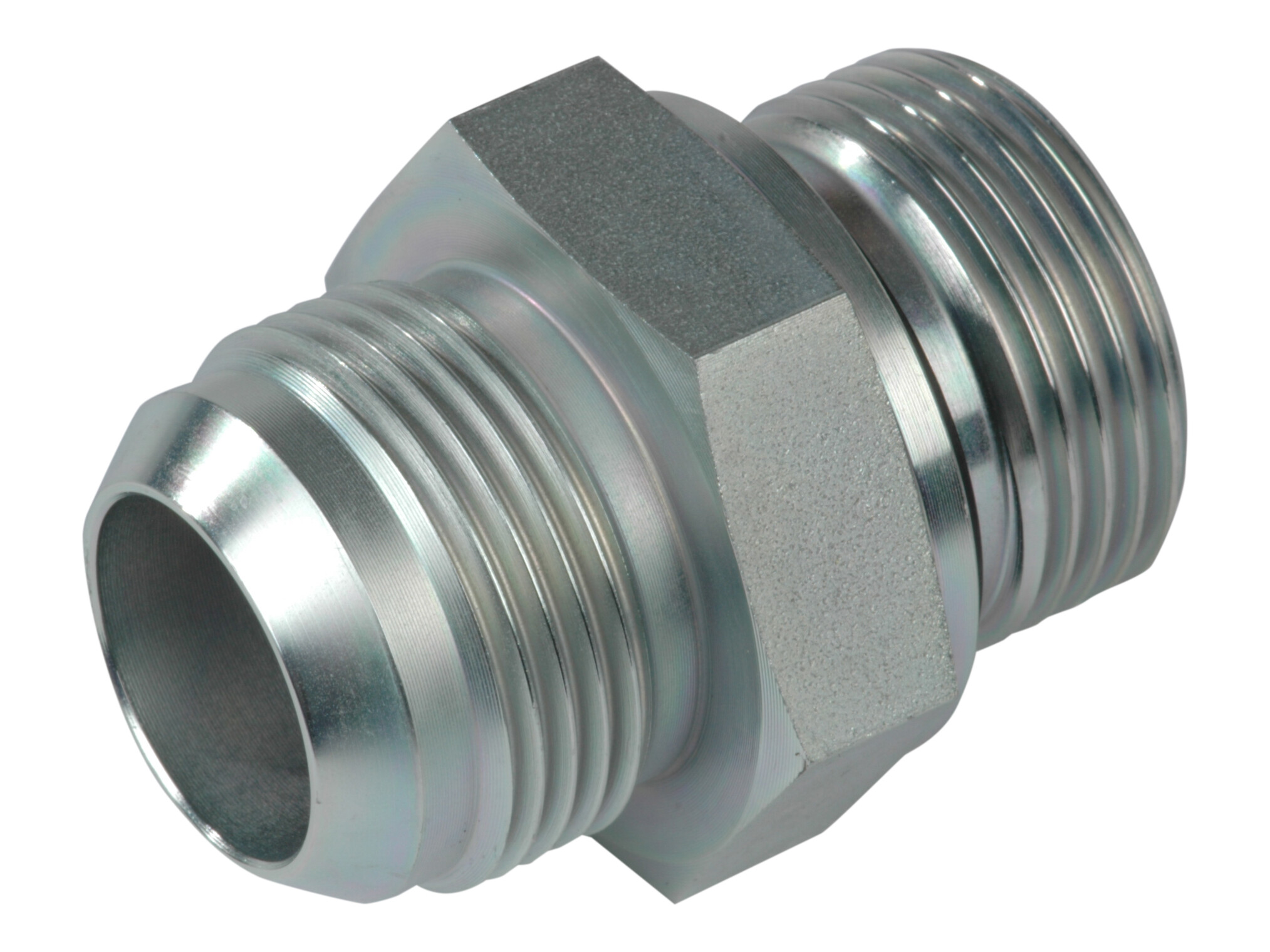

S230-25-33G adaptor BSP
-
JIC 37° straight basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Varenummer:
M-25-1WD
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
56 mm
Angle
0 °
B
23 mm
Brand Name
FOR
CH
41 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
18 mm
Diameter pipe
25 mm
F
G 1 BSP
J
1.5/16-12 JIC
Material
Steel
Pressure max.
290 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
25 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread
G 1 BSP
Thread outer
1.5/16-12 JIC
Thread outer
G 1 BSP
Package size
0 pcs
Barcode
5704295496566
Gross weight
0,23 Kg
Net weight
0,23 Kg
Country of origin
ITA
Intrastat code
73071110
-
JIC 37° straight basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Note: Opening 3D files requires a program that supports the file format
