S230-20-26G adaptor BSP
\ufeff
-

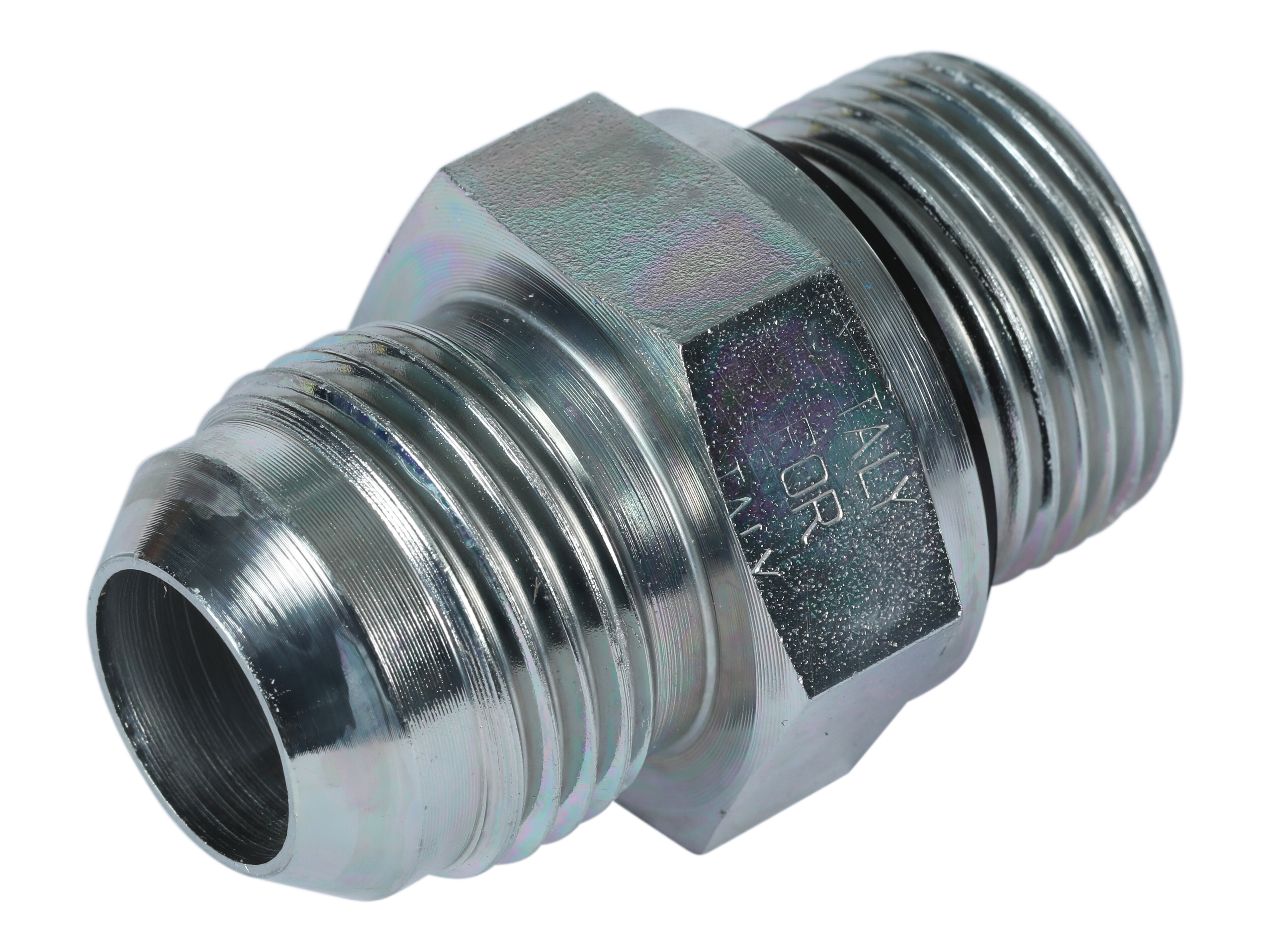

JIC 37° straight basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
M-20-3/4WD
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
52 mm
B
22 mm
CH
32 mm
D
16 mm
Diameter rør
20 mm
F
G 3/4 BSP
Gevind
G 3/4 BSP
Gevind udvendig
1.1/16-12 JIC
Gevind udvendig
G 3/4 BSP
J
1.1/16-12 JIC
Korrosions resistens
1400 hours salt spray DIN EN ISO 9227
Materiale
Steel
Mærke navn
FOR
Overfladebehandling
Electro zinc plated
Pakningsmateriale
NBR
Standard ISO
ISO 1179
T
18-20 mm
Temperatur maks.
+120 °C
Temperatur min.
-20 °C
Tryk maks.
280 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295496665
Gross weight
0,18 Kg
Net weight
0,18 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° straight basic connector
- External thread (BSPP)
- With ED seal, NBR Shore 85 +5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
