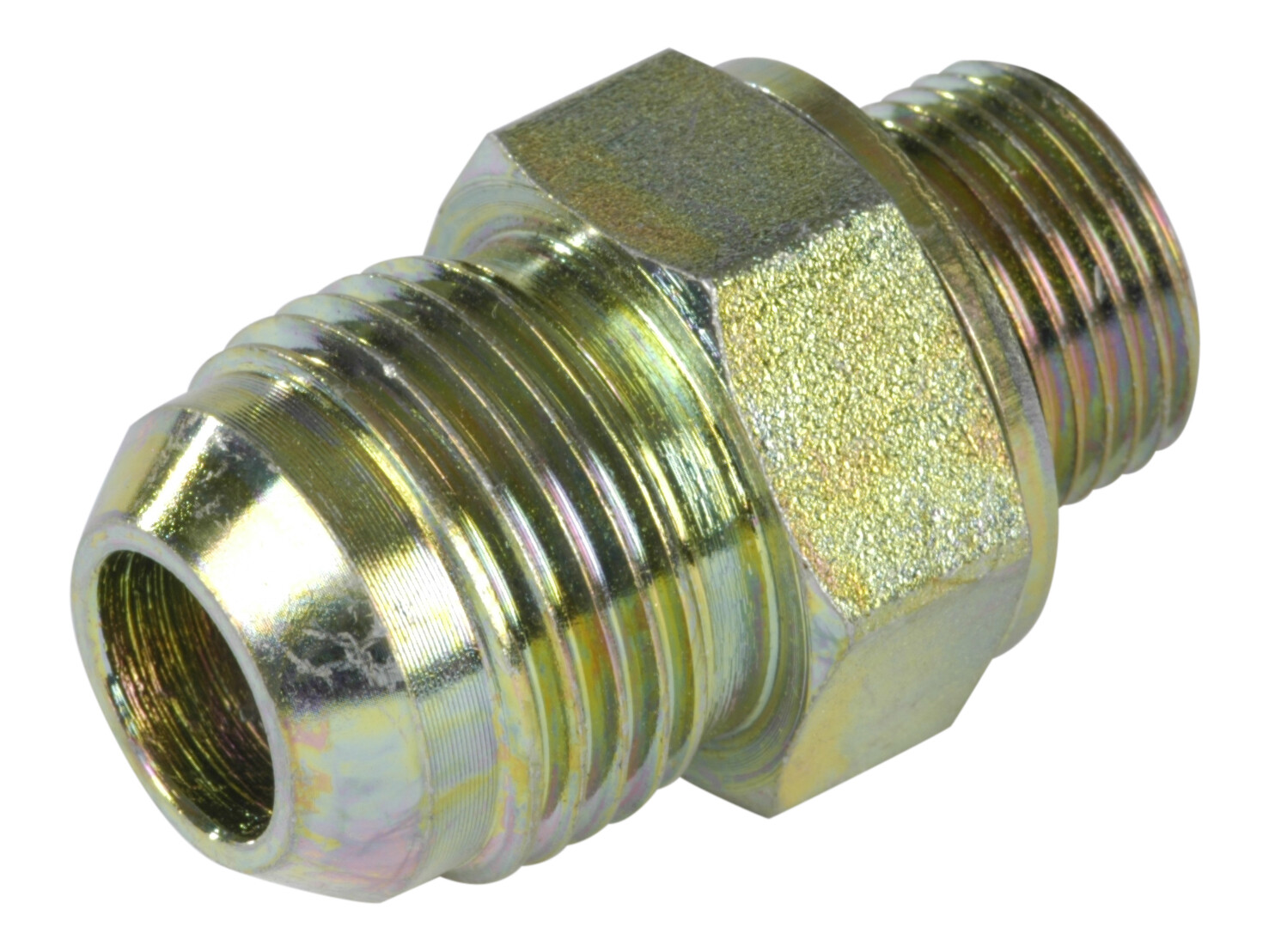

S230-16-17G adaptor BSP
Indskruning 7/8-14 JIC udv x 3/8 BSP udv NW24
Partnumber:
M-16-3/8
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
40,5 mm
Angle
0 °
B
19,5 mm
Brand Name
FOR
CH
24 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
10 mm
Diameter pipe
16 mm
F
G 3/8 BSP
J
7/8-14 JIC
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
T
16 mm
Thread
G 3/8 BSP
Thread outer
7/8-14 JIC
Thread outer
G 3/8 BSP
Package size
0 pcs
Barcode
5704295992259
Gross weight
0,07 Kg
Net weight
0,07 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 7/8-14 JIC udv x 3/8 BSP udv NW24
