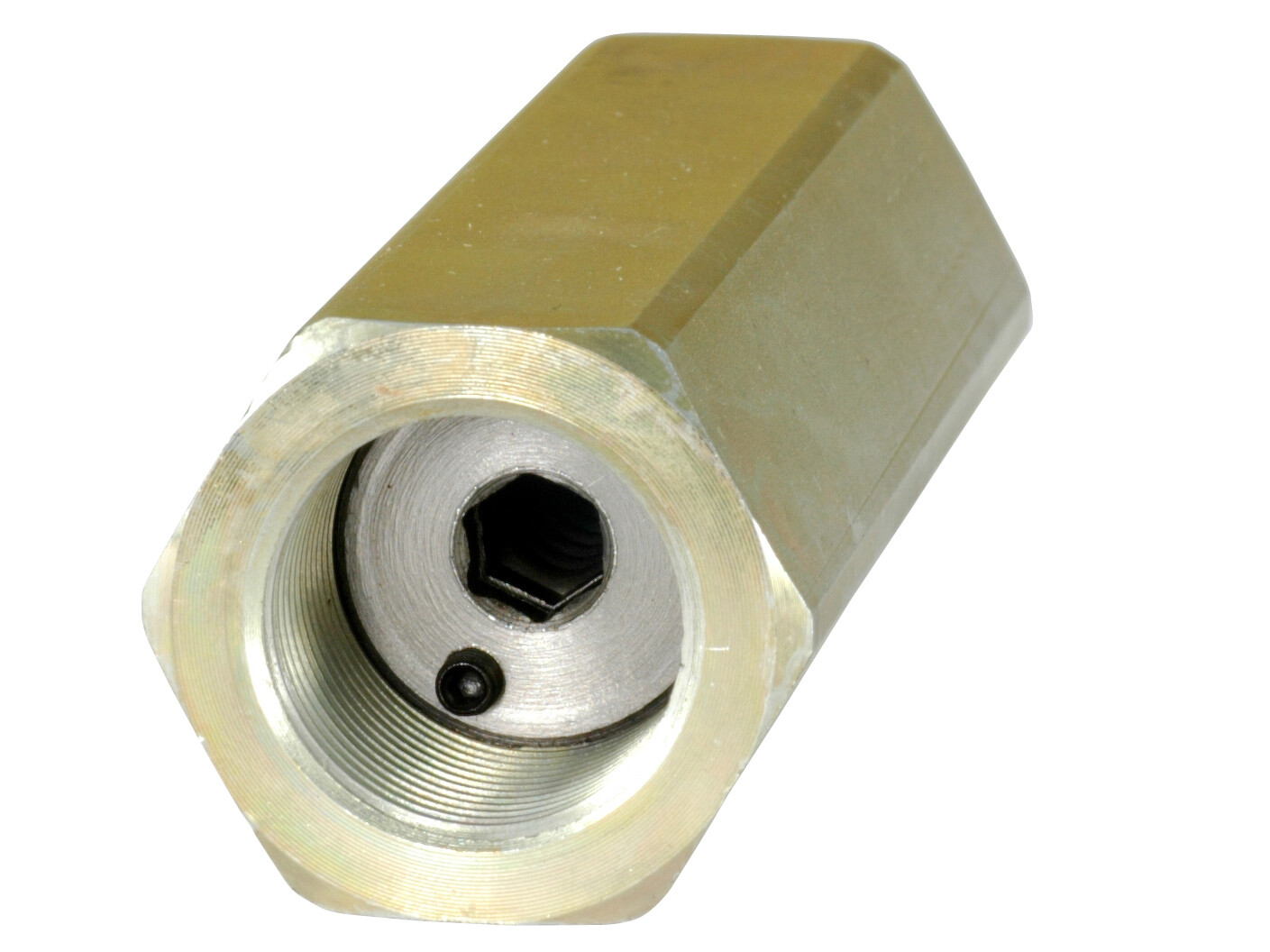

Check valve 3/4 5-30 bar
Line mounted poppet type check valve with adjustable cracking pressure. Flow is always allowed to pass from port A to port B when pressure at A rises above the spring bias pressure and the poppet is pushed from the seat.
The spring load is adjustable by turning the internal ring nut with a insex wrench: screwing down increases the spring load and increases the cracking pressure (in order to turn the Ring Nut, loosen first the little locking screw with a insex wrench; tighten it again once the spring load is adjusted).
The valve is normally closed (checked) from B to A.
Varenummer:
LCA19/30
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Hydraspecma
Flow rate nominal LMin
80 lpm
Pressure max.
250 bar
Pressure setting max.
30 bar
Pressure setting min.
5 bar
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread
G 3/4 BSP
Pakke str.
0 pcs
Stregkode
5704295727875
Brutto vægt
0,67 Kg
Netto vægt
0,67 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
Line mounted poppet type check valve with adjustable cracking pressure. Flow is always allowed to pass from port A to port B when pressure at A rises above the spring bias pressure and the poppet is pushed from the seat.
The spring load is adjustable by turning the internal ring nut with a insex wrench: screwing down increases the spring load and increases the cracking pressure (in order to turn the Ring Nut, loosen first the little locking screw with a insex wrench; tighten it again once the spring load is adjusted).
The valve is normally closed (checked) from B to A.
