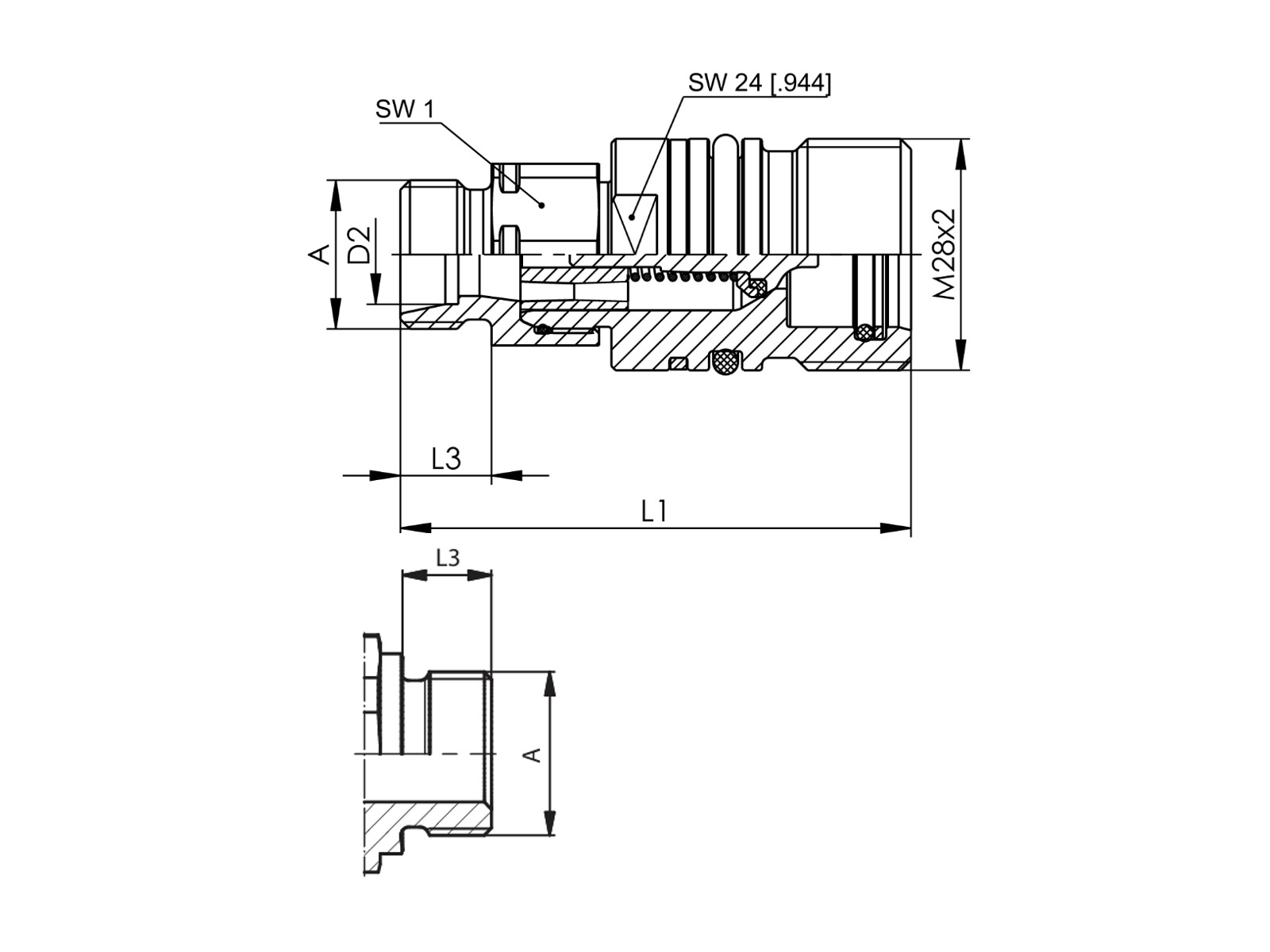

Screw coupling female HSN - DN10 - 3/8" BSP male
Screw coupling female HSN - DN10 - 3/8" BSP male
Varenummer:
HSN-10-F-B06
Pakkestr.:
0 pcs
Min. bestillingsmengde er:
1 pcs
A
G 3/8 BSP
Brand Name
Stauff
Burst Pressure
1750 Bar
Connection
Screw
Disconnection
Screw
Field of application
Construction Machinery, Industrial Hydraulic
Flowrate nominal LMin
46 lpm
ISO size
10
L1
65,2 mm
L3
12 mm
Material
Carbon steel
Model code
QRC-HSN-10-F-B06-BT-W3
Pressure max.
450 bar
Pressurized connection
Allowed
SW1
22 mm
Sealing material
NBR, PTFE (Teflon®)
Size
3/8 "
Spillage
1,66 ml
Standard ISO
ISO 14541
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread outer
G 3/8 BSP
Package size
0 pcs
Barcode
Gross weight
Kg
Net weight
0,20 Kg
Country of origin
deu
Intrastat code
84812010
