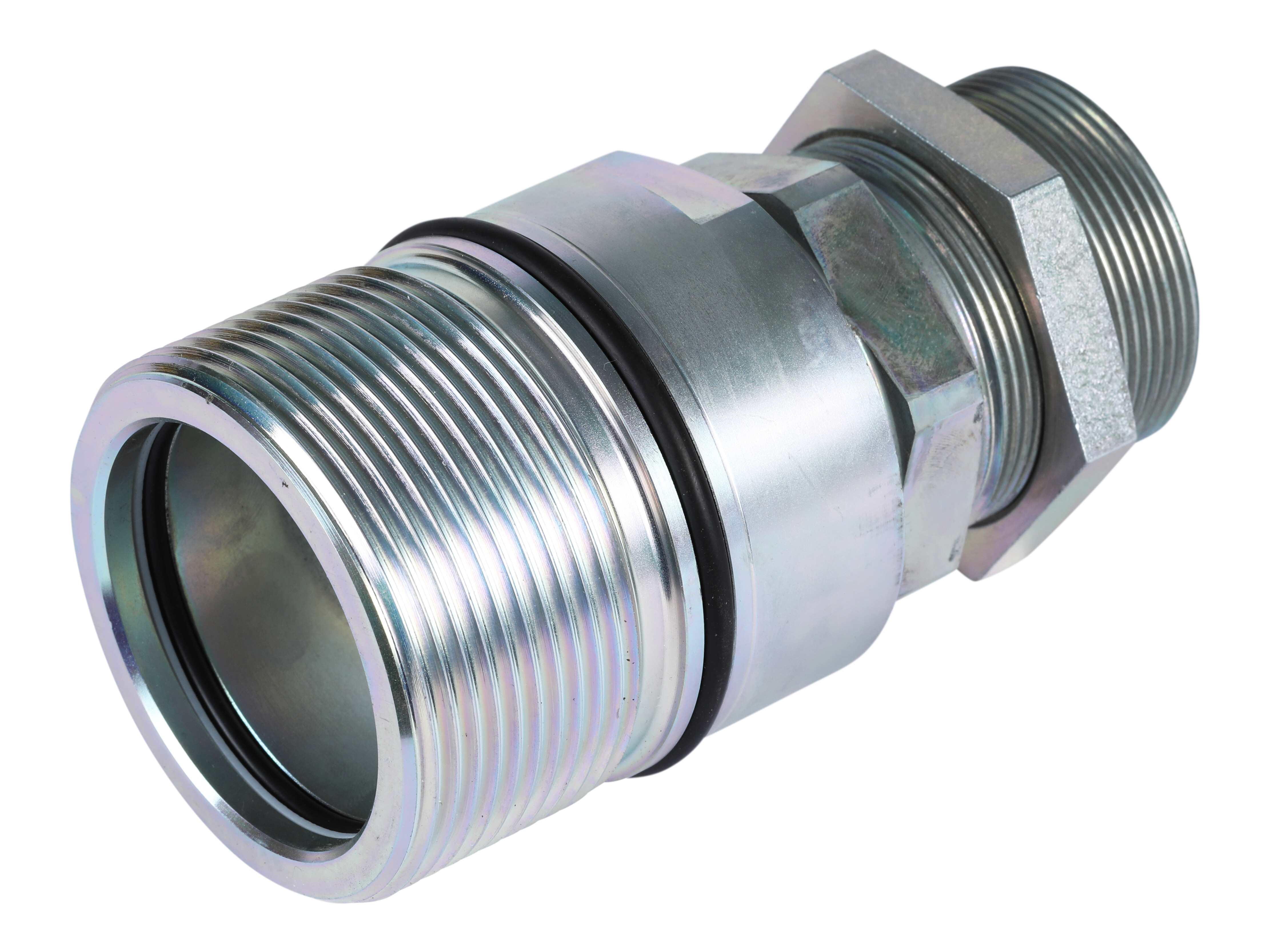

Screw coupling female HS - DN38 - M52x2 (38S) bulkhead
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
Varenummer:
HS25-1-T3852
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
M52x2
Brand Name
Stauff
Connection
Screw
D2
38 mm
Diameter pipe
38 mm
Disconnection
Screw
Field of application
Construction Machinery
Flow rate nominal LMin
220 lpm
ISO size
38
L1
132 mm
L3
40 mm
Material
Steel
Model code
QRC-HS-38-F-38SB-BT-W66
Pressure burst min.
1600 bar
Pressure max.
350 bar
Pressurized connection
Male Tip/Female Body up to 33% of the Working Pressure with Tools
SW
55, 65 mm
Sealing material
NBR
Series
S
Size
1.1/2 "
Spillage
52,3 ml
Standard ISO
ISO 14541
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread DIN standard
DIN 3861
Thread outer metric
M52x2, M70x3
Pakke str.
0 pcs
Stregkode
5704295238340
Brutto vægt
1,73 Kg
Netto vægt
1,73 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
Standard DIN-coupling often used on mobile-cranes and within industry.
BSP female thread.
Can be connected by hand up till an approx. pressure of 50 bar.
