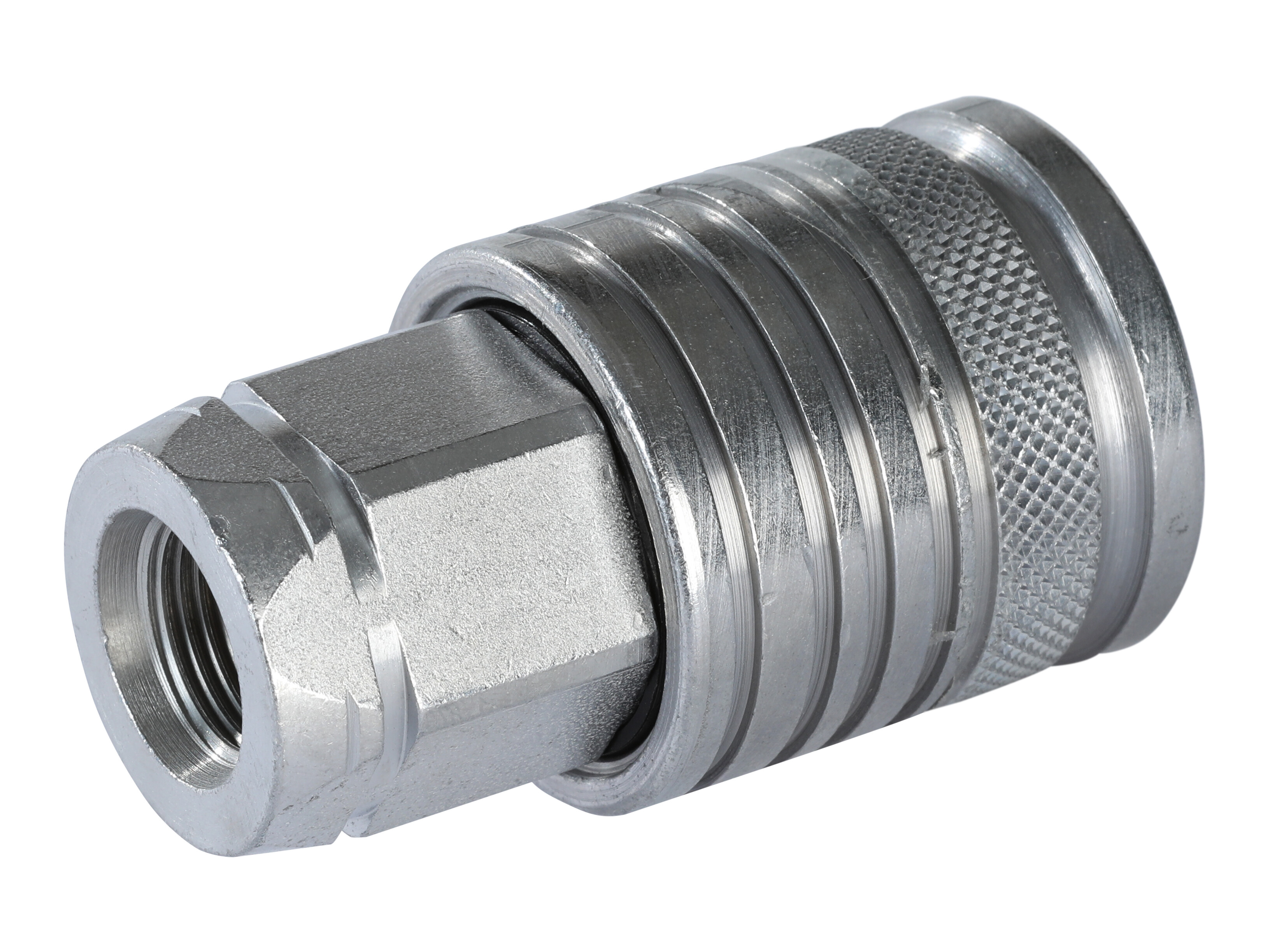

Coupling female HP (ISO-A) - DN12 - 3/8"BSP female
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
Partnumber:
HP10-1-IGF06
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Stauff

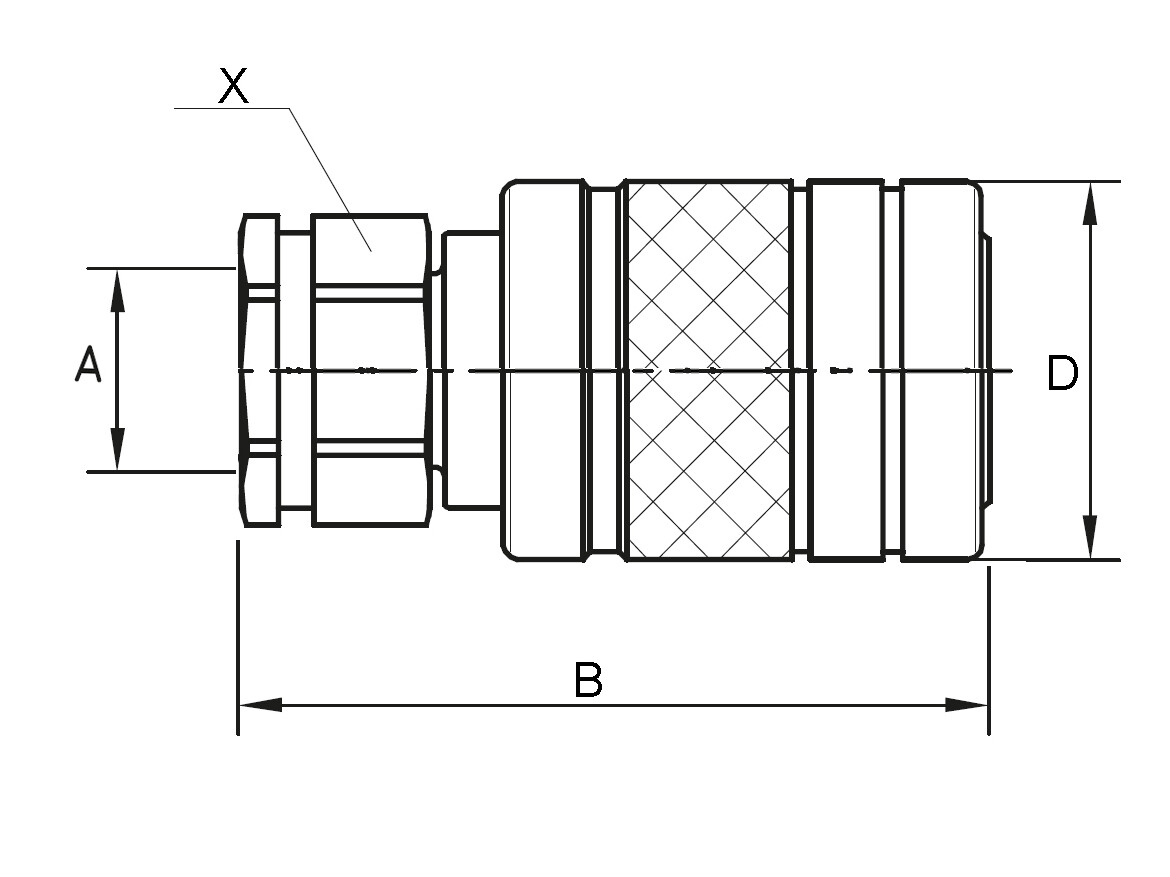

Dimension A
G 3/8 BSP
Dimension B
68 mm
Dimension D
38 mm
Dimension X
27 mm
Flow rate nominal LMin
100 lpm
ISO size
12.5
Model code
HP10-1-IGF06
Pressure max.
250 bar
Sealing material
NBR
Size
1/2 "
Standard ISO
ISO 7241-1-A
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread inner
G 3/8 BSP
Pakke str.
0 pcs
Stregkode
5704295237299
Brutto vægt
0,32 Kg
Netto vægt
0,32 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
