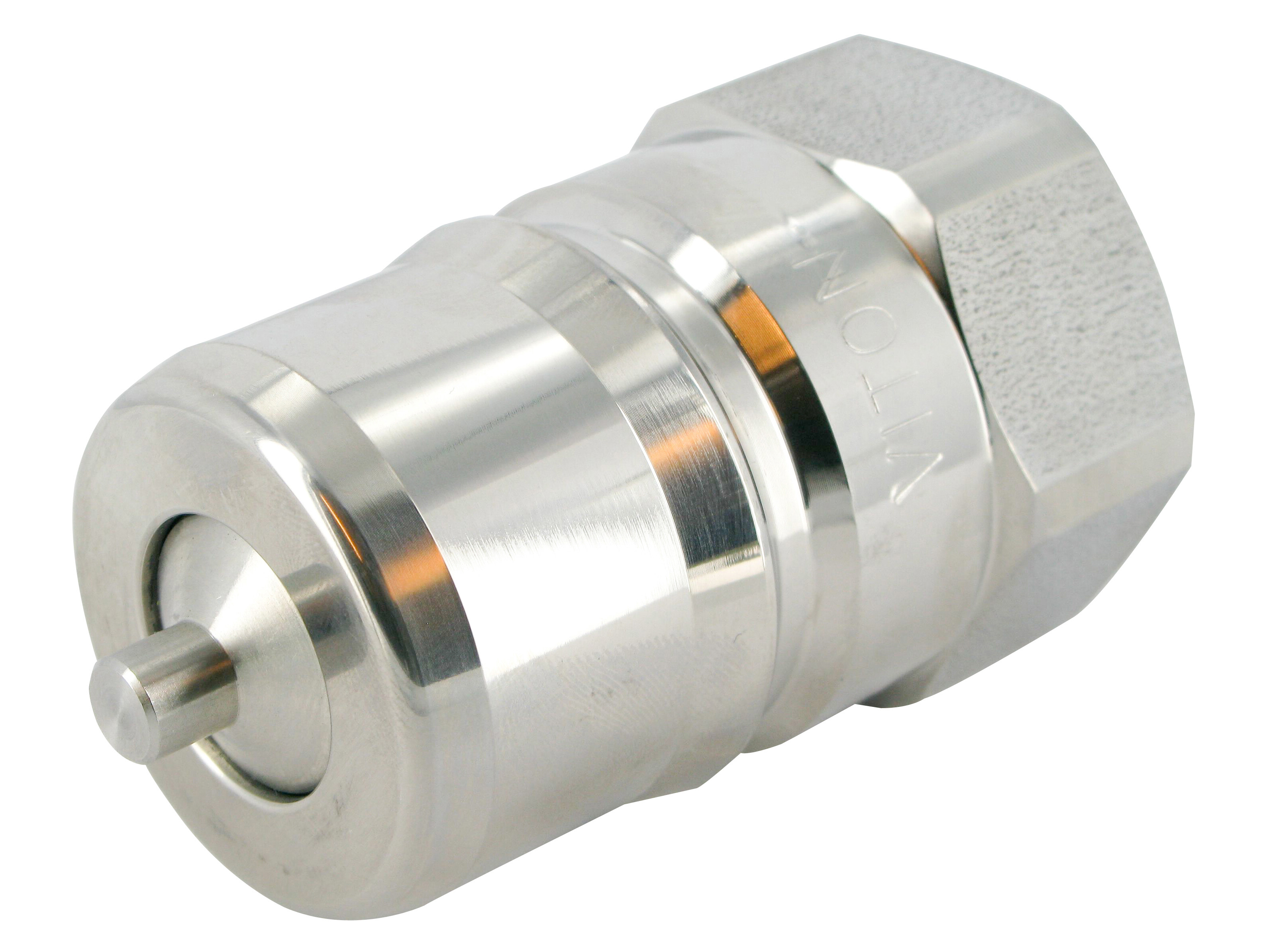

Coupling male HNV (ISO-B) - DN25 - 1"BSP - AISI316
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
C
66 mm
DN
25 mm
E
G 1 BSP
Flödeshastighet nominell LMin
150 lpm
Gänga inv.
G 1 BSP
H
37,8 mm
ISO storlek
25
Modell kod
HNV 1 GAS M 2V
Märke namn
Faster
Packningsmaterial
FKM/FPM (Viton®)
Standard ISO
ISO 7241-1-B
Storlek
1 "
Temperatur max.
+200 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Stainless steel
Tryck max.
210 bar
Y
41 mm
Förpackningsstorlek
0 pcs
Streckkod
5704334230694
Bruttovikt
0,38 Kg
Nettovikt
0,38 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
