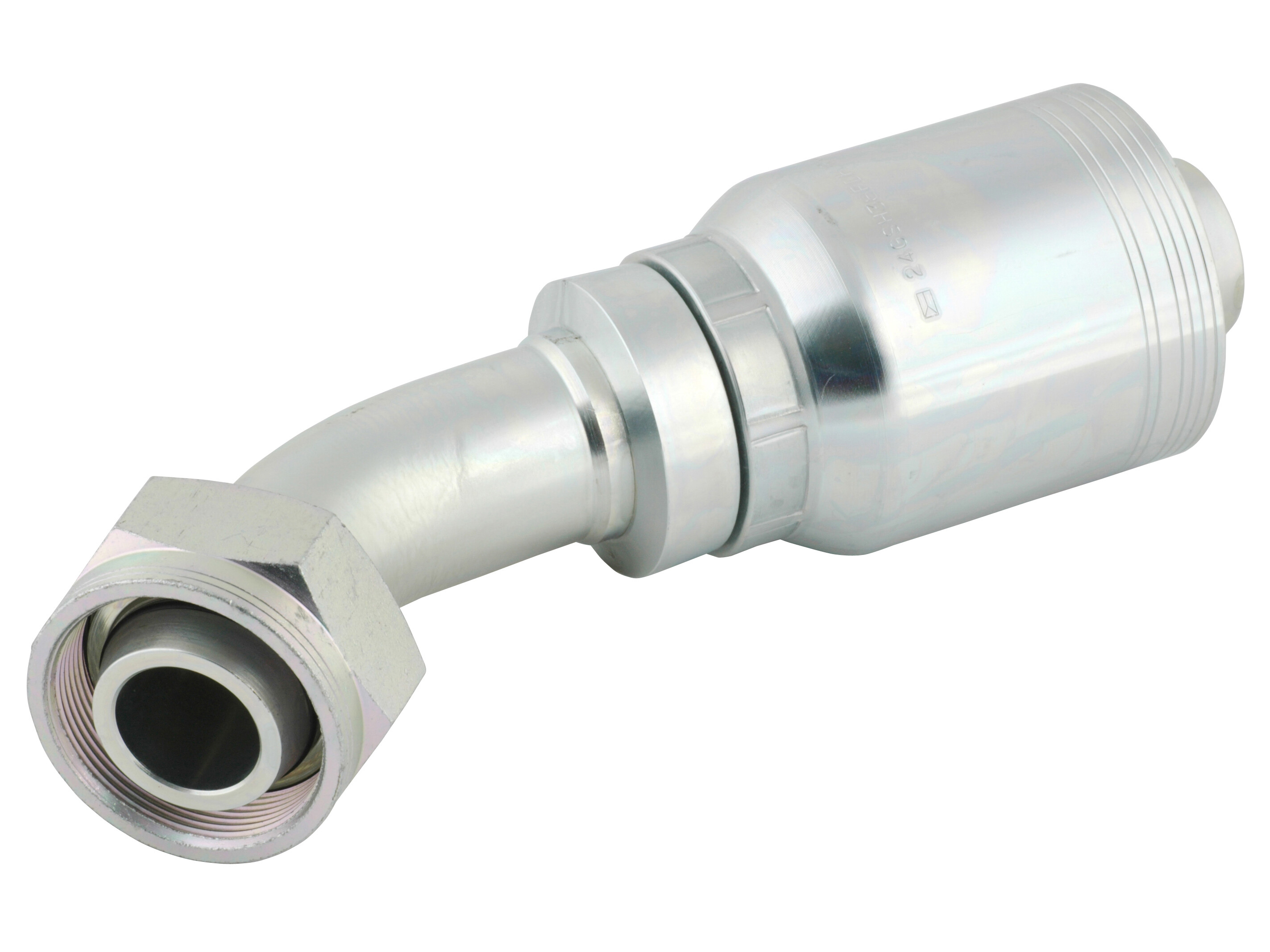

1.1/2" Coupling - (38S) M52x2 female - 45°

1.1/2" Coupling - (38S) M52x2 female - 45°

1.1/2" Coupling - (38S) M52x2 female - 45°

Connection: Female DIN O ring swivel. 24° cone.

Sealing: O-ring against metal.

Partnumber:

GSM2438RO524

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (1)

Male protection plug, M52x2

Varenummer: PLUG18M

Specifikationer
Dimensioner og forsendelse

Angle

45 °

Brand Name

Gates

Corrosion resistance

500 hours salt spray ASTM B-117

Diameter pipe

38 mm

Dimension A

236.9 mm

Dimension B

141.9 mm

Dimension D

1.1/2 "

Dimension H

60 mm

Hose coupling type

With fixed ferrule

Hose size

1.1/2 "

Material

Steel

Model code

24GSM-38FDHORX45

Pressure max.

420 bar

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

NBR

Series

S

Surface treatment

TuffCoat™

Temperature max.

+100 °C

Temperature min.

-35 °C

Torque tightening

290 - 310 Nm

Pakke str.

0 pcs

Stregkode

5704334380122

Brutto vægt

Kg

Netto vægt

Kg

Oprindelsesland

CZE

Intrastat varekode

73269098

Produkt information
Målskitse

Connection: Female DIN O ring swivel. 24° cone.

Sealing: O-ring against metal.

1.1/2" Coupling - (38S) M52x2 female - 45°
