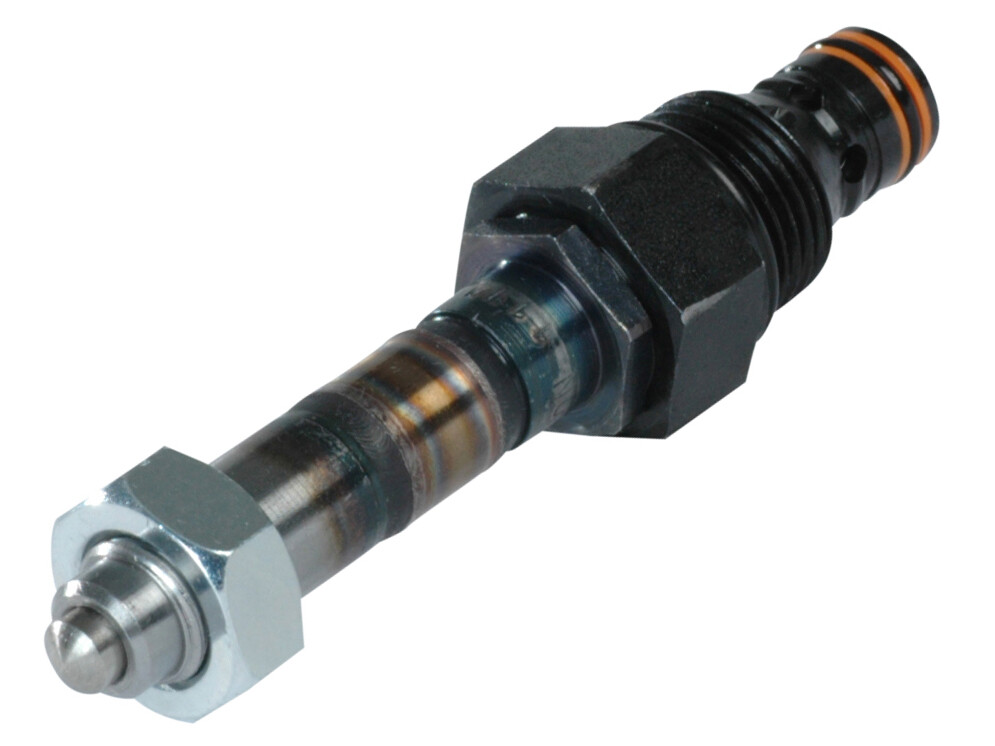

Solenoid cartridge valve No.34 With manual override
2 position, 2-way, normally open, Bi-Directional poppet valve.
This valve has different rated flows depending on the flow direction:
- Port 1 to 2 = 19 l/min
- Port 2 to 1 = 34 l/min
Features
- Built in thermal relief set at 36 bar above rated pressure
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O-rings;Symmetrical coil can be reversed without affecting performance.
- Coil is interchangeable with 04 and 06 series poppet valves;
- All external parts zinc plated.
Varenummer:
GS02-86-10N
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Activation
Manual override, Solenoid
Brand Name
Hydraspecma
Cavity
CAV02-2
Contamination level max.
18/16/13 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
34 lpm
Manual operated
Yes
Number of ways/positions
2/2
Oil viscocity recommended
6 - 420 cSt
Pressure max.
350 bar
Sealing material
NBR
Solenoidtype
CCP
Temperature max.
+121 °C
Temperature min.
-34 °C
Torque tightening
30 Nm
Valve type
NO - Normally open
Pakke str.
0 pcs
Stregkode
5704295031996
Brutto vægt
0,13 Kg
Netto vægt
0,13 Kg
Oprindelsesland
USA
Intrastat varekode
84812010
2 position, 2-way, normally open, Bi-Directional poppet valve.
This valve has different rated flows depending on the flow direction:
- Port 1 to 2 = 19 l/min
- Port 2 to 1 = 34 l/min
Features
- Built in thermal relief set at 36 bar above rated pressure
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O-rings;Symmetrical coil can be reversed without affecting performance.
- Coil is interchangeable with 04 and 06 series poppet valves;
- All external parts zinc plated.
