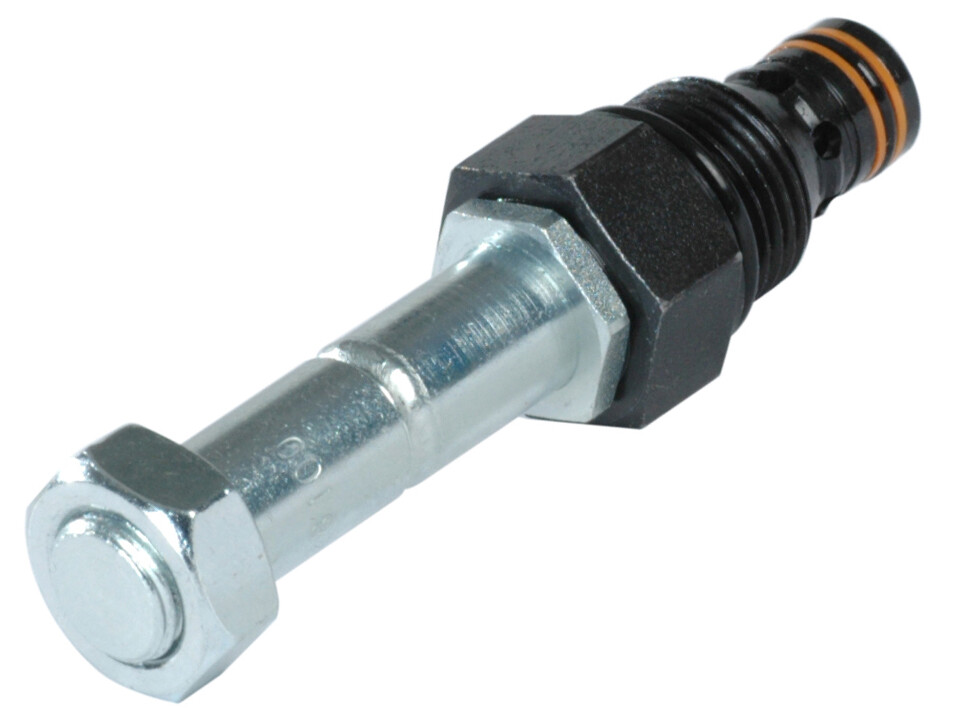

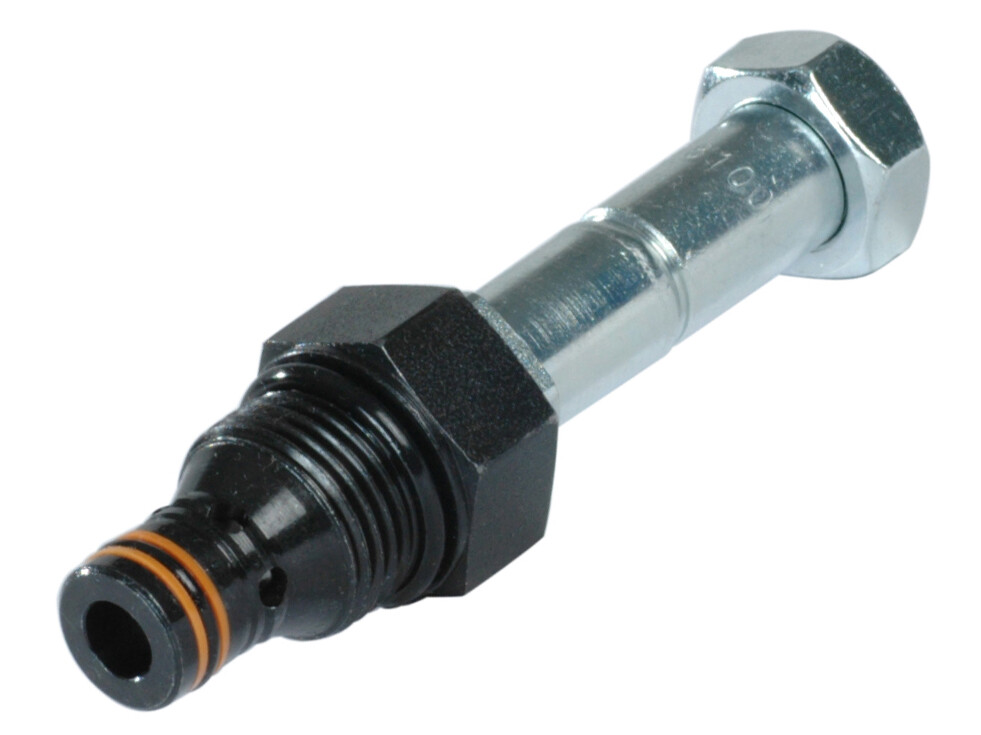

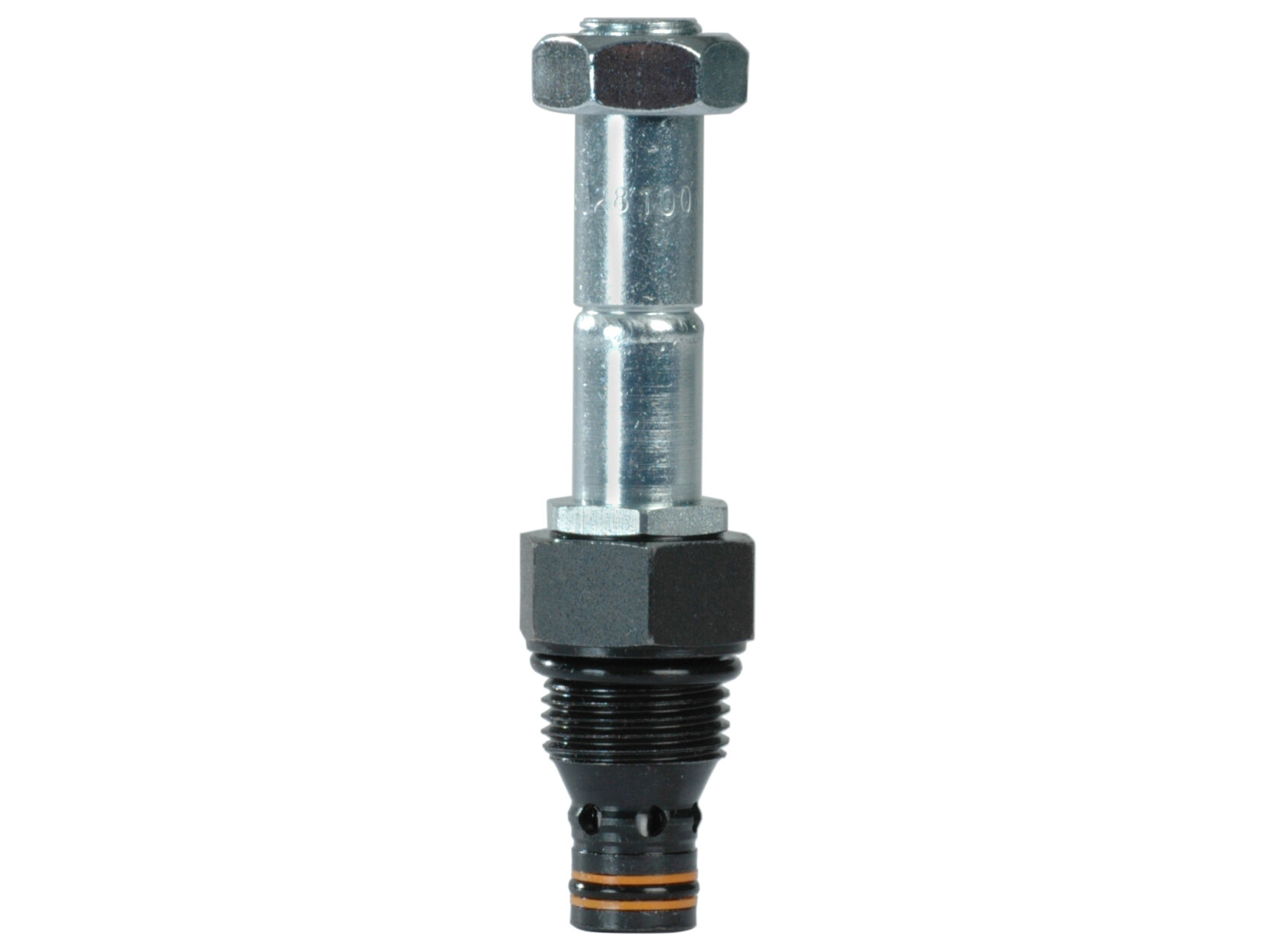

RIKTN.V S-H 8-2 NC2V 350 bar
2-way, 2 position, normally closed, Bi – directional poppet valve.
This valve has different rated flows depending on the flow direction:
- Port 1 to 2 = 19 l/min
- Port 2 to 1 = 34 l/min
Features
- Built-in thermal relief set at 36 Bar above rated pressure
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O-rings;Symmetrical coil can be reversed without affecting performance
- Coil is interchangeable with 04 and 06 series poppet valves;
- All external parts zink plated
Varenummer:
GS02-81-00N
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Activation
Solenoid
Brand Name
Hydraspecma
Cavity
CAV02-2
Contamination level max.
18/16/13 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
34 lpm
Manual operated
No
Number of ways/positions
2/2
Oil viscocity recommended
15 - 50 cSt
Pressure max.
350 bar
Sealing material
NBR
Solenoidtype
CCP
Temperature max.
+121 °C
Temperature min.
-34 °C
Torque tightening
30 Nm
Valve type
NC - Normally closed
Package size
0 pcs
Barcode
5704295031958
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
gbr
Intrastat code
84812010
2-way, 2 position, normally closed, Bi – directional poppet valve.
This valve has different rated flows depending on the flow direction:
- Port 1 to 2 = 19 l/min
- Port 2 to 1 = 34 l/min
Features
- Built-in thermal relief set at 36 Bar above rated pressure
- One piece cartridge housing ensures internal concentricity
- Coil: Waterproof, hermetically sealed, requires no O-rings;Symmetrical coil can be reversed without affecting performance
- Coil is interchangeable with 04 and 06 series poppet valves;
- All external parts zink plated
