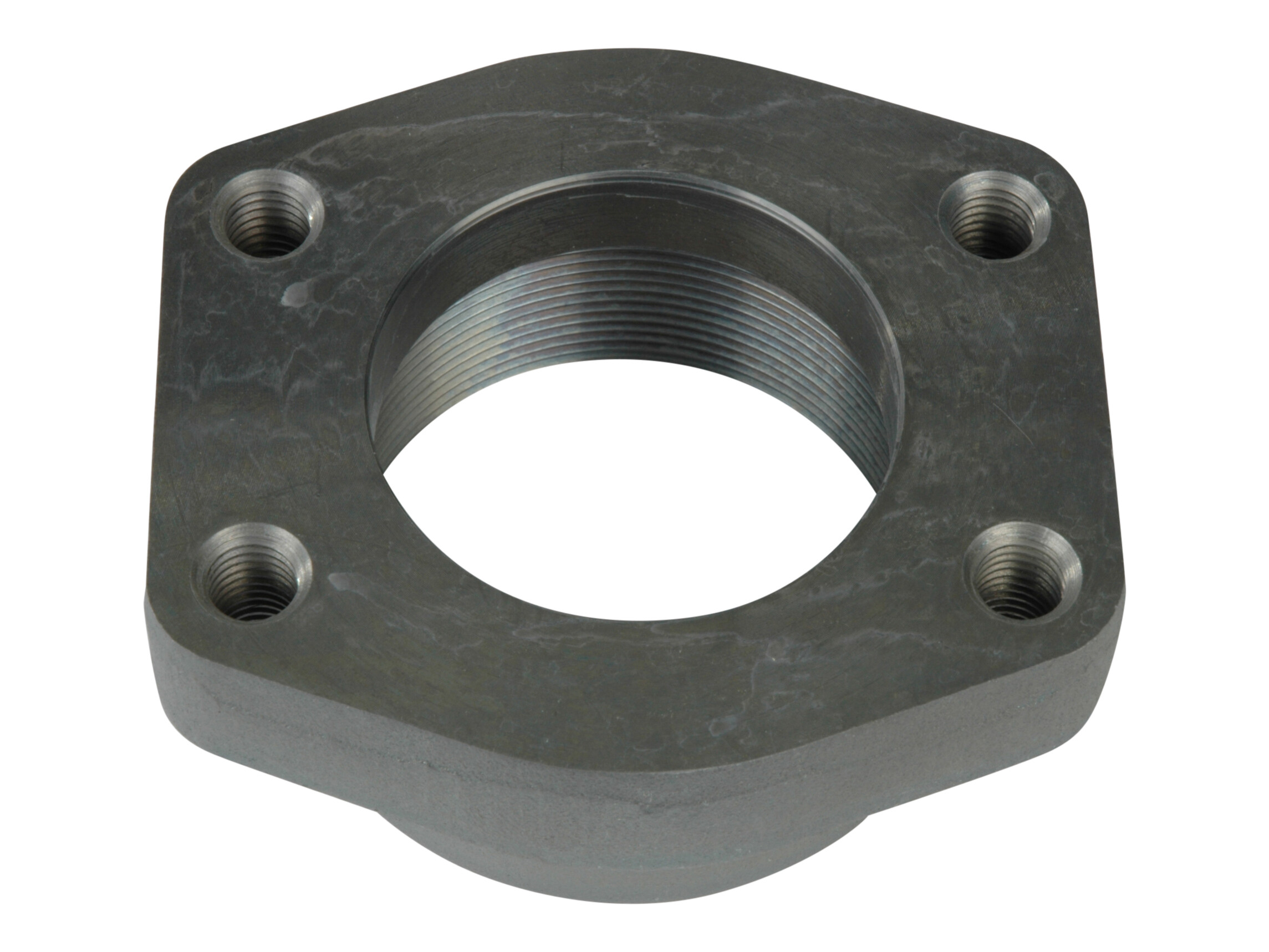

Threaded flange 2.1/2" SAE3000 x 2.1/2" BSP
Threaded flange 2.1/2" SAE3000 x 2.1/2" BSP
Partnumber:
GFS110G
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
84.1 mm
Dimension C
88.9 mm
Dimension E
50.8 mm
Flange
2.1/2 "
Flange SAE/DIN
3000 PSI
Material
Steel
O-ring
69.44X3.53 mm
Pressure max.
175 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 2.1/2 BSP
Thread of bolt metric
M12
Package size
0 pcs
Barcode
5704295994154
Gross weight
1,40 Kg
Net weight
1,40 Kg
Country of origin
DEU
Intrastat code
73079100
Threaded flange 2.1/2" SAE3000 x 2.1/2" BSP
