Stud elbow adjustable 90° - ø12S x 3/8" BSP
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%.
Partnumber:
FXWEE12SR38OK
Package size:
1 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
Stauff

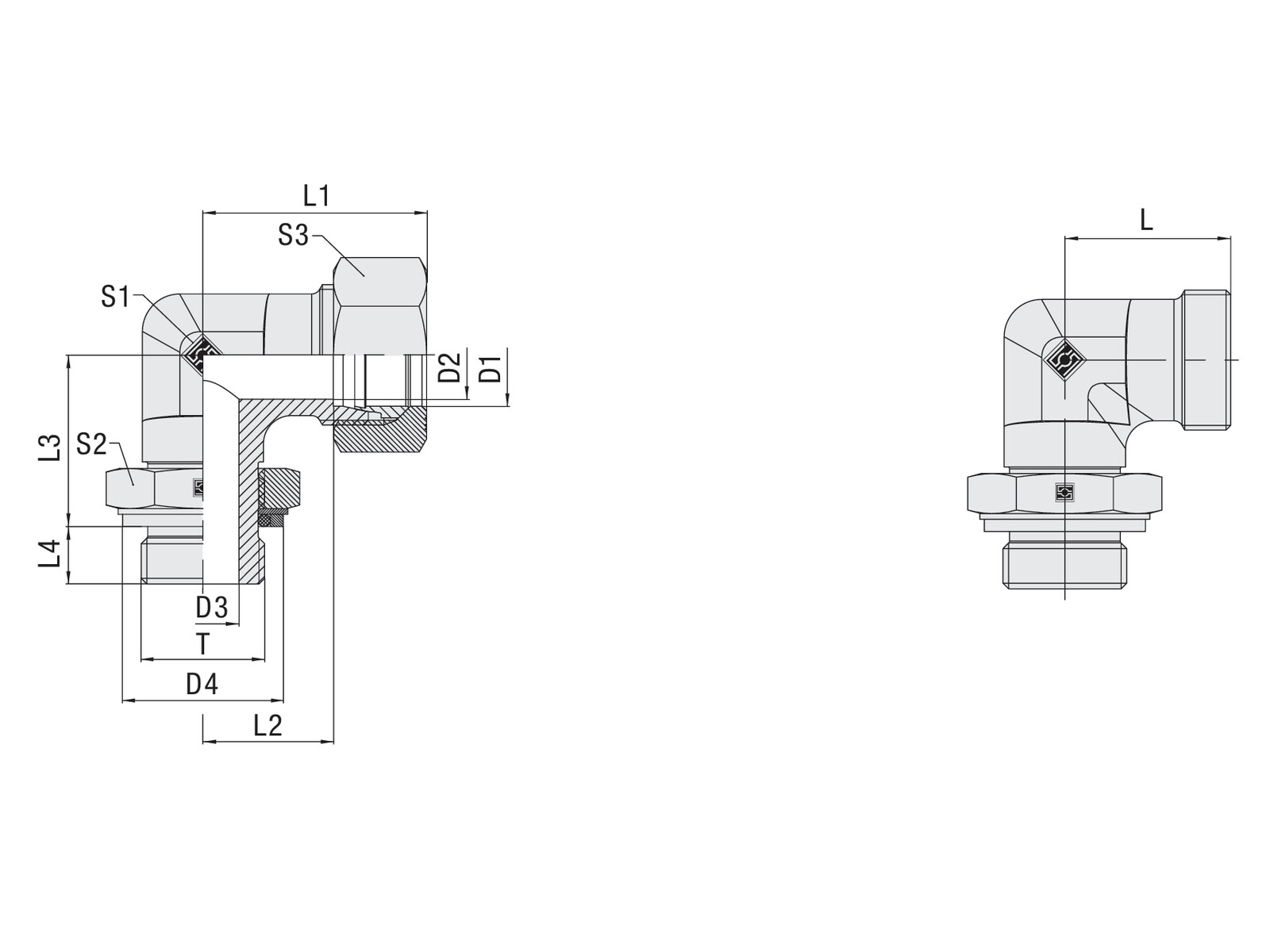

D1
12 mm
D2
8 mm
D3
8 mm
D4
22,8 mm
Diameter pipe
12 mm
L
29 mm
L2
2,5 mm
L3
31 mm
L4
9 mm
Material
Steel
Model code
FI-WEE-12SR-OK-B-W3
PN
250 bar
Pressure max.
250 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
22 mm
S2
22 mm
Safety factor
4
Sealing material
NBR
Series
S
Standard ISO
ISO 1179-1, ISO 1179-3 - Type H
Surface treatment
Zinc-Nickel plated
T
G 3/8 BSP
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
G 3/8 BSP, M36x2
Torque tightening
80 Nm
Package size
1 pcs
Barcode
5704334816201
Gross weight
Kg
Net weight
0,146 Kg
Country of origin
deu
Intrastat code
73071110
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%.
Note: Opening 3D files requires a program that supports the file format
