Welding bulkhead fitting - ø10L

Partnumber:

FXES10L

Package size:

1 pcs

Min. order quantity is:

1 pcs

Accessories (4)

Cutting ring - ø10L

Partnumber: FIDS10LS

Nut - ø10L - M16x1.5

Partnumber: FIM10L

Double cutting ring WDDS - ø10L/S - packing

Partnumber: FIWDDS10LS

M10L nut ø10 M16x1,5

Partnumber: M10L

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

Stauff

10 mm

8 mm

22 mm

Diameter pipe

10 mm

72 mm

87 mm

58 mm

50 mm

Material

Steel

Model code

FI-ES-10L-W2

500 bar

Pressure max.

500 bar

REACH compliant

Yes

RoHs compliant

Yes

19 mm

Safety factor

Series

Surface treatment

Blank (oiled)

Temperature max.

+120 °C

Temperature min.

-40 °C

Thread outer metric

M16x1,5

10 mm

8 mm

Package size

1 pcs

Barcode

5704334891659

Gross weight

Net weight

0,143 Kg

Country of origin

deu

Intrastat code

73071110

Product information

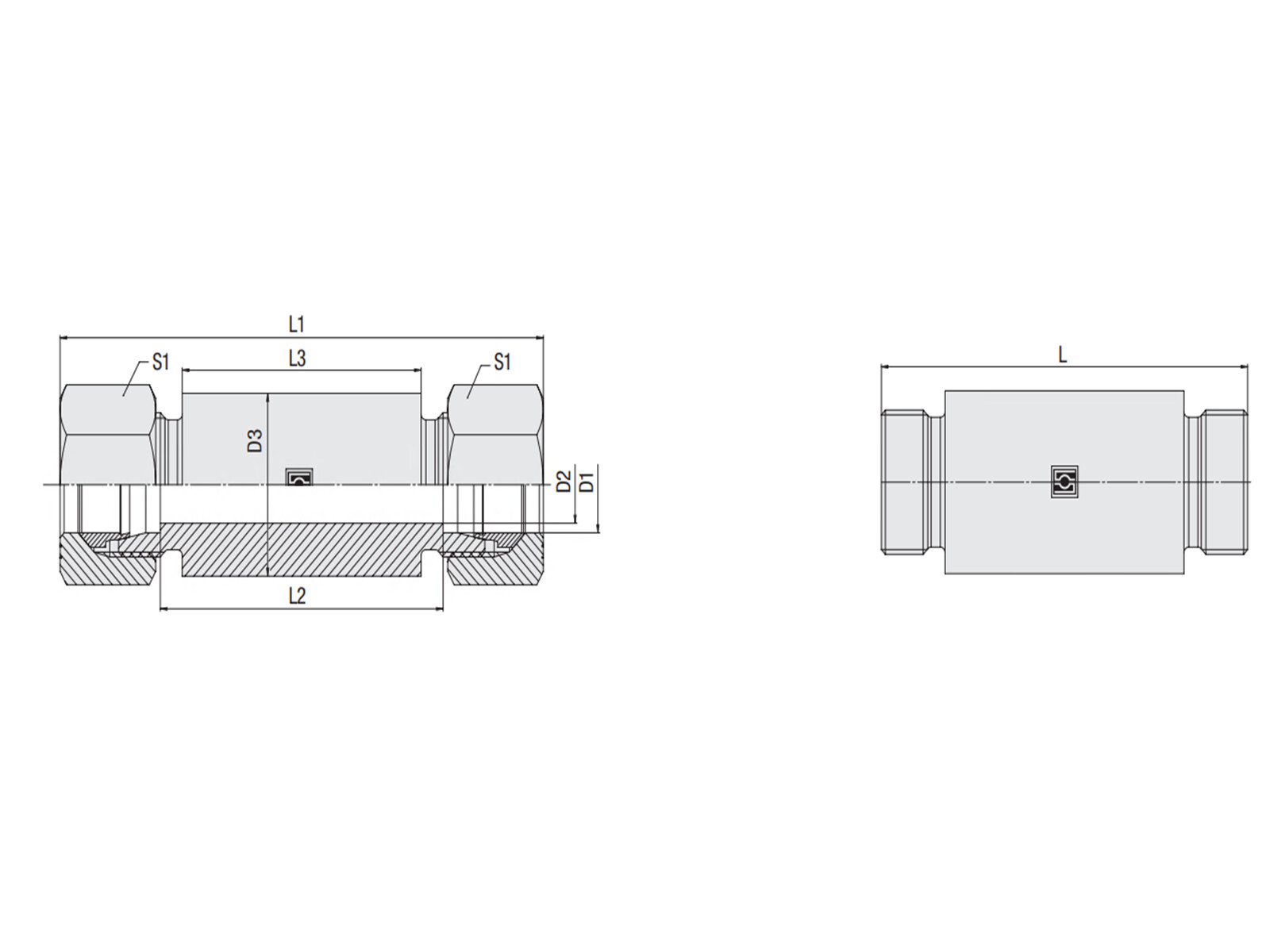

Measure sketch

Welding bulkhead fitting - ø10L

Note: Opening 3D files requires a program that supports the file format
