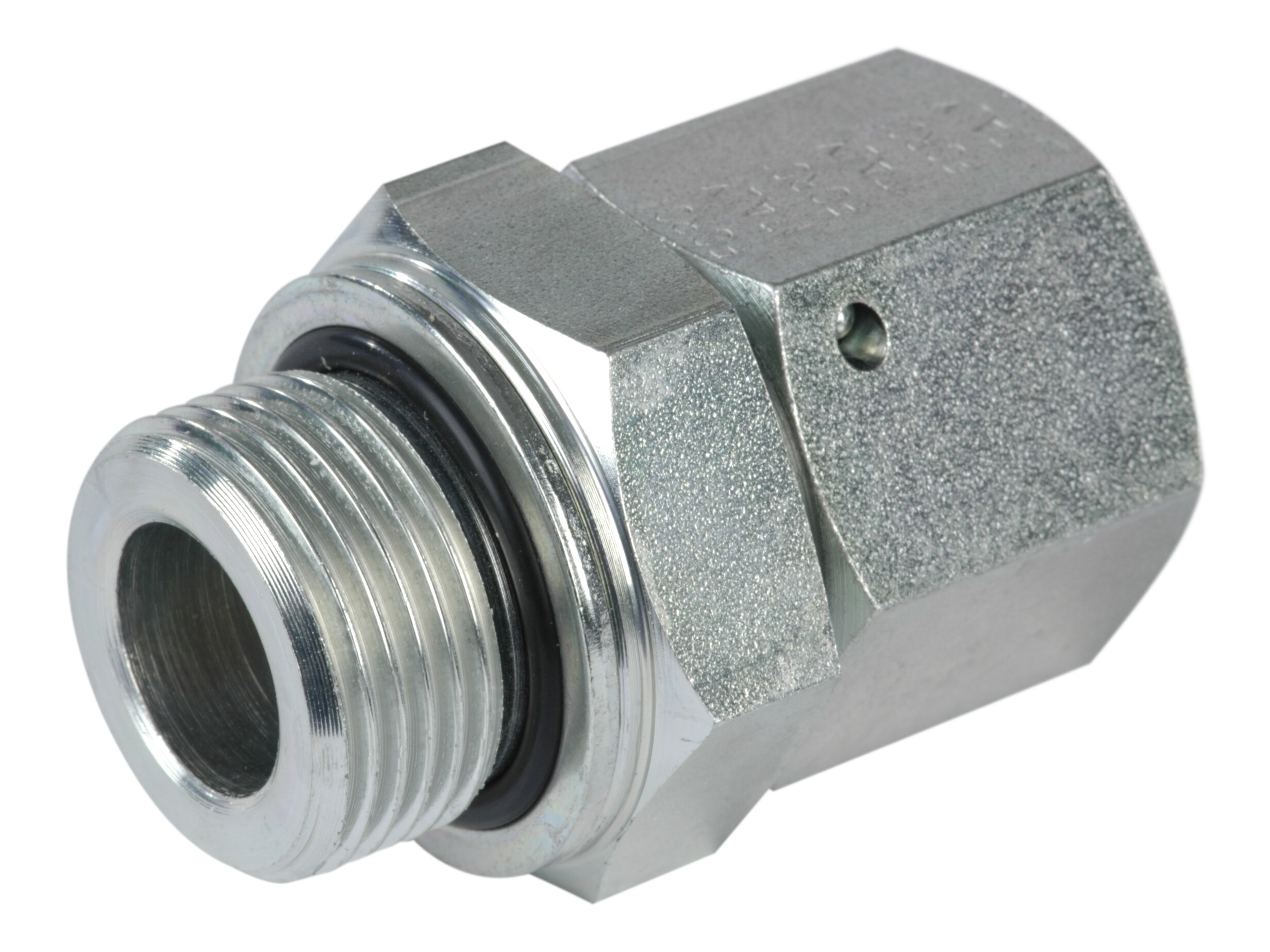

S180-10-17G adaptor with nut
S180-10-17G adaptor with nut
Varenummer:
FG-10-3/8
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
Dimension A
43 mm
Dimension B
21.5 mm
Dimension CH
24 mm
Dimension CH1
17 mm
Dimension D
10 mm
Dimension F
G 3/8 BSP
Dimension J
9/16-18 JIC
Dimension T
10 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread inner
9/16-18 JIC
Thread outer
G 3/8 BSP
Package size
0 pcs
Barcode
5704334274278
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
S180-10-17G adaptor with nut
Note: Opening 3D files requires a program that supports the file format
