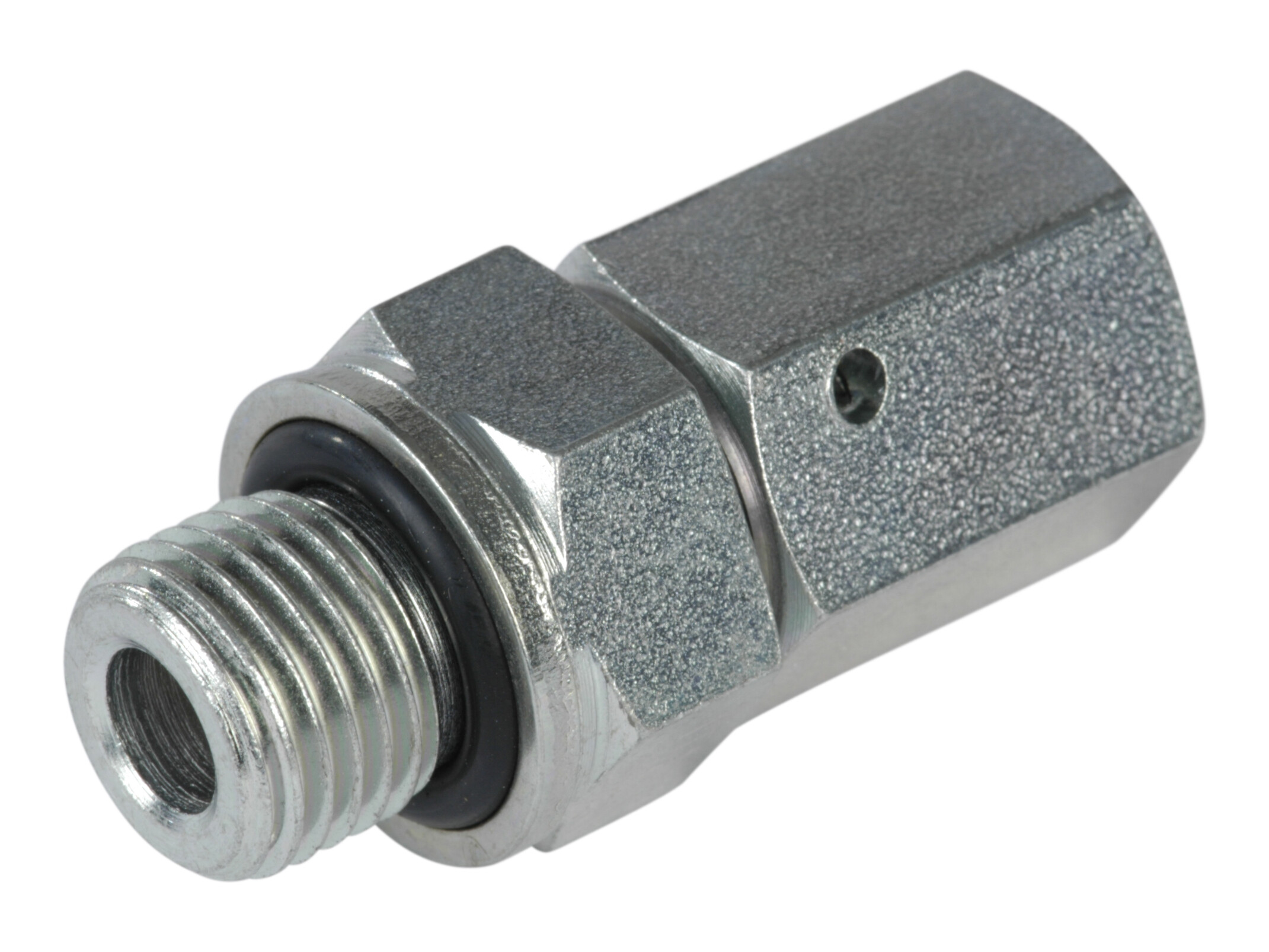

S180-10-13G adaptor with nut

Partnumber:

FG-10-1/4

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

Dimension A

42 mm

Dimension B

21.5 mm

Dimension CH

19 mm

Dimension CH1

17 mm

Dimension D

10 mm

Dimension F

G 1/4 BSP

Dimension J

9/16-18 JIC

Dimension T

10 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread inner

9/16-18 JIC

Thread outer

G 1/4 BSP

Package size

0 pcs

Barcode

5704334104438

Gross weight

0,05 Kg

Net weight

0,05 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S180-10-13G adaptor with nut
