    • Adaptor with nut, BSP

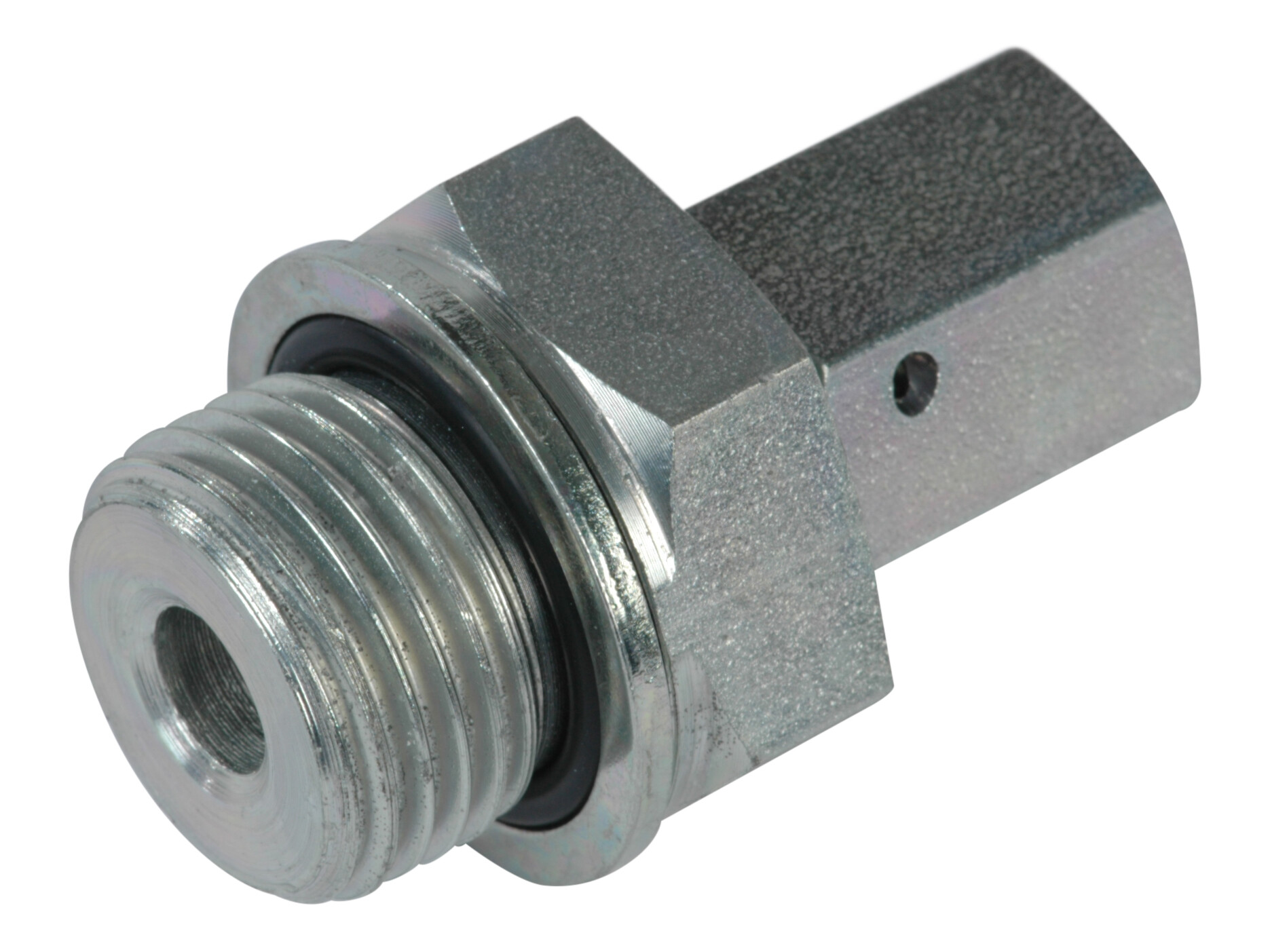

    Adaptor with nut, BSP

    Adaptor with nut, BSP

    Partnumber:
    FG-10-1/2
    Package size:
    0 pcs
    Min. order quantity is:
    1 pcs
    Angle
    0 °
    Brand Name
    FOR
    Corrosion resistance
    1400 hours salt spray DIN EN ISO 9227
    Diameter pipe
    10 mm
    Dimension A
    46 mm
    Dimension B
    21.5 mm
    Dimension CH
    27 mm
    Dimension CH1
    17 mm
    Dimension D
    12 mm
    Dimension F
    G 1/2 BSP
    Dimension J
    9/16-18 JIC
    Dimension T
    10 mm
    Material
    Steel
    Pressure max.
    350 bar
    Surface treatment
    Electro-galvanized / White chromatized
    Thread inner
    9/16-18 JIC
    Thread outer
    G 1/2 BSP
    Package size
    0 pcs
    Barcode
    5704334255444
    Gross weight
    0,10 Kg
    Net weight
    0,10 Kg
    Country of origin
    ITA
    Intrastat code
    73071110

    Adaptor with nut, BSP

    3D-file

    Note: Opening 3D files requires a program that supports the file format
