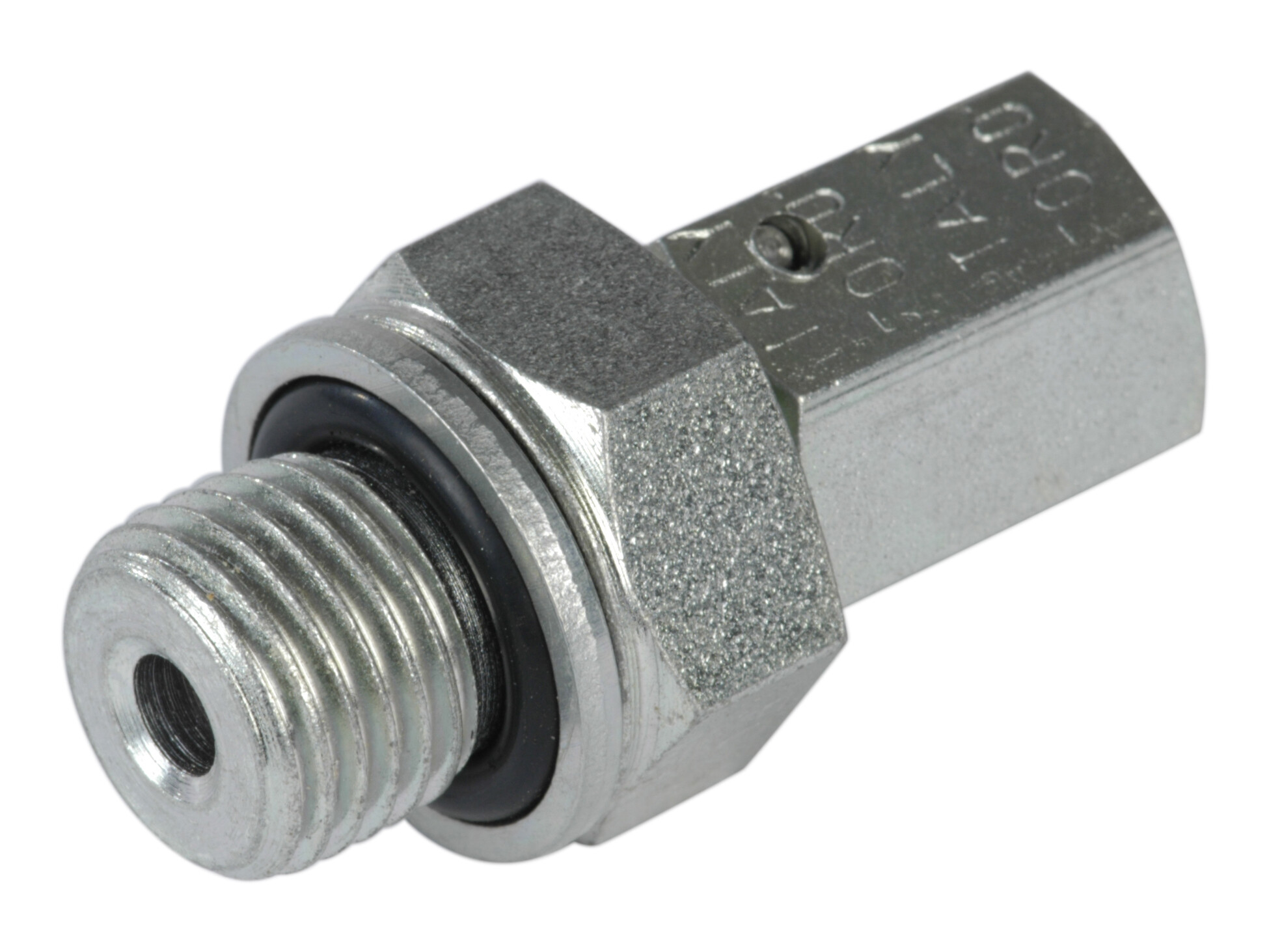

S180-06-13G adaptor with nut

Varenummer:

FG-06-1/4

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifikationer
Dimensioner och frakt

Diameter rør

6 mm

Dimension A

39 mm

Dimension B

18.5 mm

Dimension CH

19 mm

Dimension CH1

14 mm

Dimension D

10 mm

Dimension F

G 1/4 BSP

Dimension J

7/16-20 JIC

Dimension T

6 mm

Gevind indvendig

7/16-20 JIC

Gevind udvendig

G 1/4 BSP

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Steel

Mærke navn

FOR

Overfladebehandling

Electro-galvanized / White chromatized

Tryk maks.

450 bar

Vinkel

0 °

Förpackningsstorlek

0 pcs

Streckkod

5704334113195

Bruttovikt

0,05 Kg

Nettovikt

0,05 Kg

Ursprungsland

ITA

Intrastat artikelkod

73071110

Produktinformation
Måttskiss

S180-06-13G adaptor with nut
