Sun flow control valve

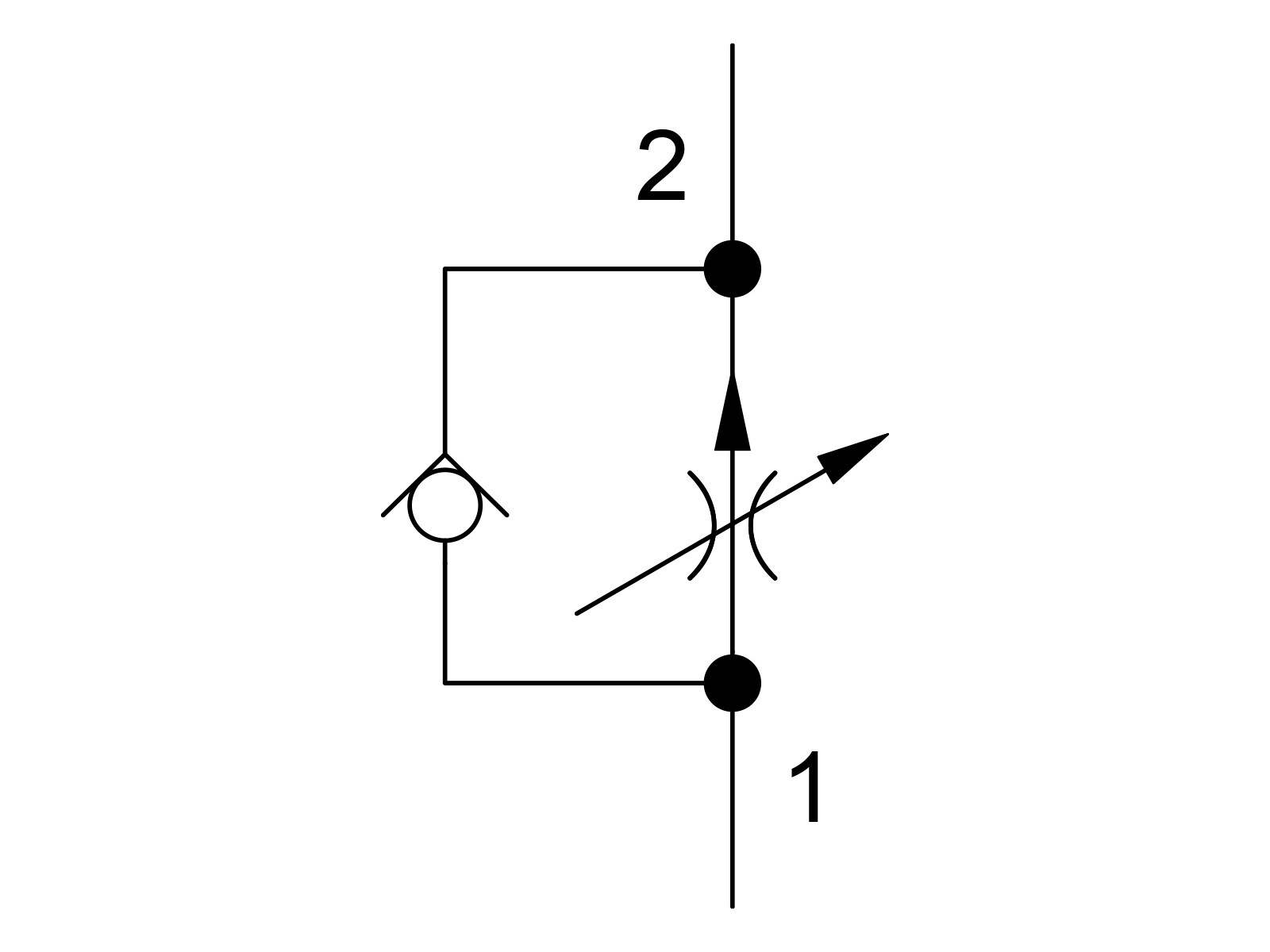

This flow control valve is fully adjustable with pressure-compensated flow controls the reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.
Partnumber:
FDCB-LAN
Package size:
0 pcs
Min. order quantity is:
1 pcs
Cavity
T-5A
Flow Nominel
45 lpm
Flow maks. reguleret
45 lpm
Flow min. reguleret
0.8 lpm
Forureningsgrad maks.
19/17/14 - ISO 4406
Materiale
Steel
Model kode
FDCBLAN
Mærke navn
Sun Hydraulics
Olieviskositet anbefalet
2,8 - 380 cSt
Pakningsmateriale
NBR
Temperatur maks.
+110 °C
Temperatur min.
-30 °C
Tilspændingsmoment
61 - 68 Nm
Tryk maks.
350 bar
Trykkompenseret
Yes
Ventiltype
Throttle/checkvalve
Pakke str.
0 pcs
Stregkode
5704295699547
Brutto vægt
0,28 Kg
Netto vægt
0,28 Kg
Oprindelsesland
Intrastat varekode
84812010
This flow control valve is fully adjustable with pressure-compensated flow controls the reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.
