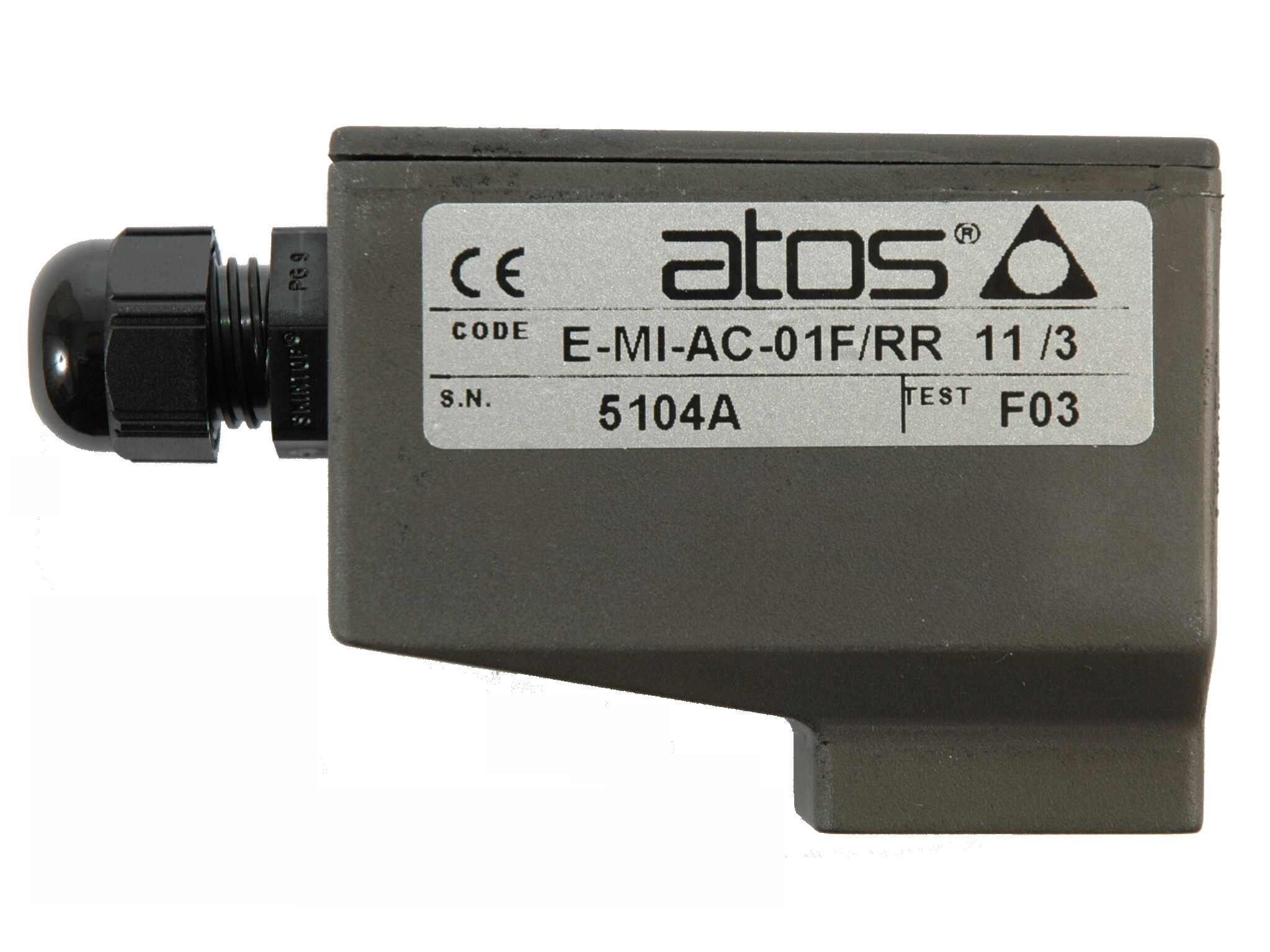

Electronic driver Adjusted for TVPT90P12DCG

E-MI-AC electronic drivers supply solenoid proportional solenoids type ZO(R)-A with the correct current signal to align valve regulation to the reference signal. They are designed to operate in open-loop electronic systems for Atso proportional valves without integrated transducer. The driver are supplied with integrated connector according to DIN 43560. The driver operates the valve's regulation proportionally to the input reference signal (voltage or current) supplying a switching current to the solenoid. Scale and Bias adjustments, for accurate valve regulations, are available via built-in potentionmeters. The driver is normally used with a reference signal supplied by an external set-point potentiometer or by PLC control unit and a symmetrical rising and falling ramp generator. The electronic drivers includes CE marking granting conformity to the EMC directive (Electromagnetic Compatibility).

Option /RR = With adjustable dissymmetrical ramps. Suitable also for current signal 0-20 mA.

Mounting: Direct on solenoid, DIN 43560 - IP65.

Partnumber:
EMIAC01F/RR9

Package size:
0 pcs

Min. order quantity is:
1 pcs
Control box 5m+1,5m cables
Artikelnummer: TVTP-BOX1
Brand Name
Atos

Current type
DC

Model code
E-MI-AC-01F/RR9

Supply voltage max.
24 V

Supply voltage min.
24 V

Temperature max.
+50 °C

Temperature min.
0 °C
Förpackningsstorlek
0 pcs

Streckkod
5704295840901

Bruttovikt
0,19 Kg

Nettovikt
0,19 Kg

Ursprungsland

Intrastat artikelkod
84812010

E-MI-AC electronic drivers supply solenoid proportional solenoids type ZO(R)-A with the correct current signal to align valve regulation to the reference signal. They are designed to operate in open-loop electronic systems for Atso proportional valves without integrated transducer. The driver are supplied with integrated connector according to DIN 43560. The driver operates the valve's regulation proportionally to the input reference signal (voltage or current) supplying a switching current to the solenoid. Scale and Bias adjustments, for accurate valve regulations, are available via built-in potentionmeters. The driver is normally used with a reference signal supplied by an external set-point potentiometer or by PLC control unit and a symmetrical rising and falling ramp generator. The electronic drivers includes CE marking granting conformity to the EMC directive (Electromagnetic Compatibility).

Option /RR = With adjustable dissymmetrical ramps. Suitable also for current signal 0-20 mA.

Mounting: Direct on solenoid, DIN 43560 - IP65.
