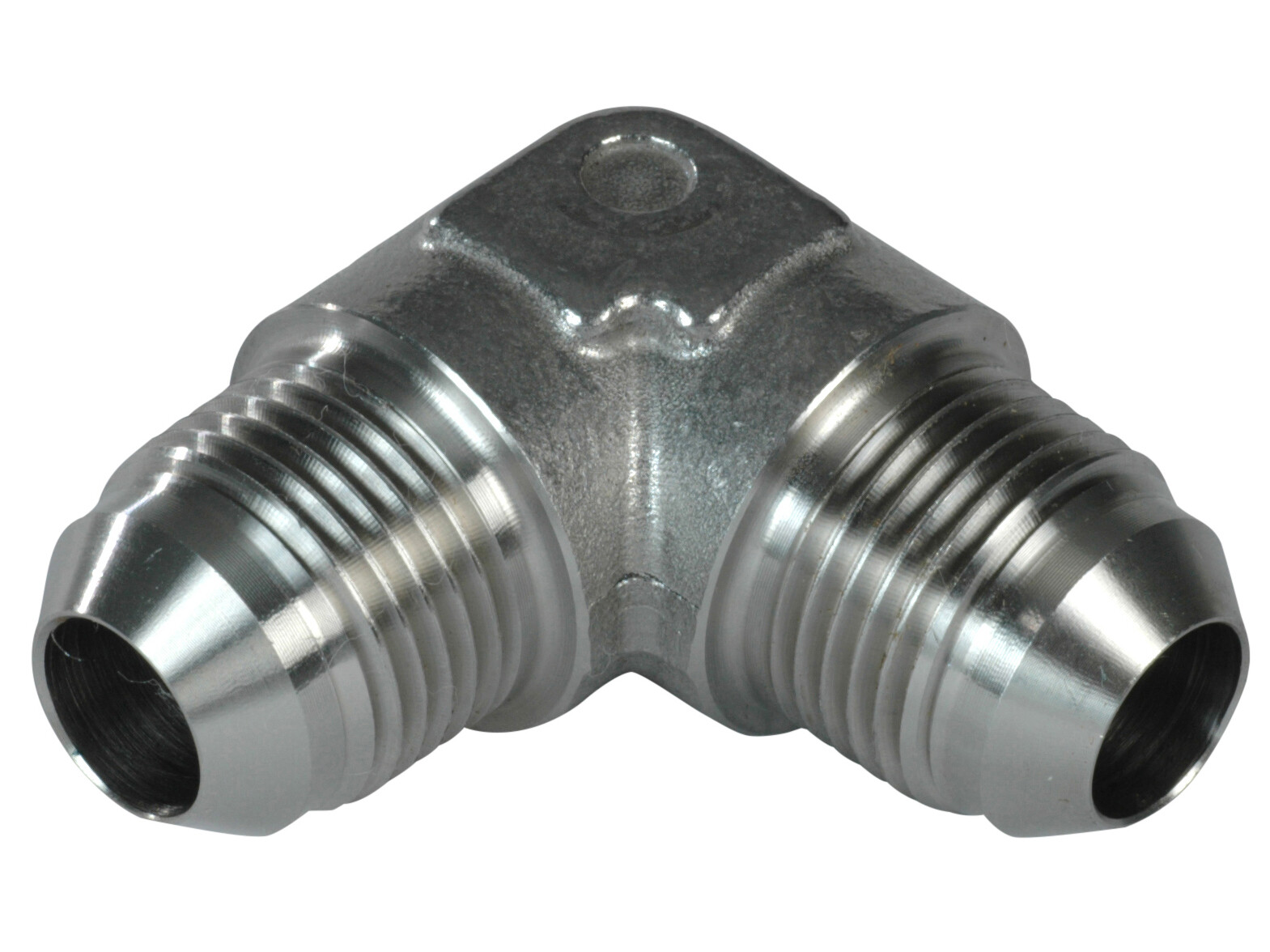

90º ELBOW M - M JIC 9/16" 18H UNF AISI316
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
CU-10/71
Package size:
0 pcs
Min. order quantity is:
1 pcs

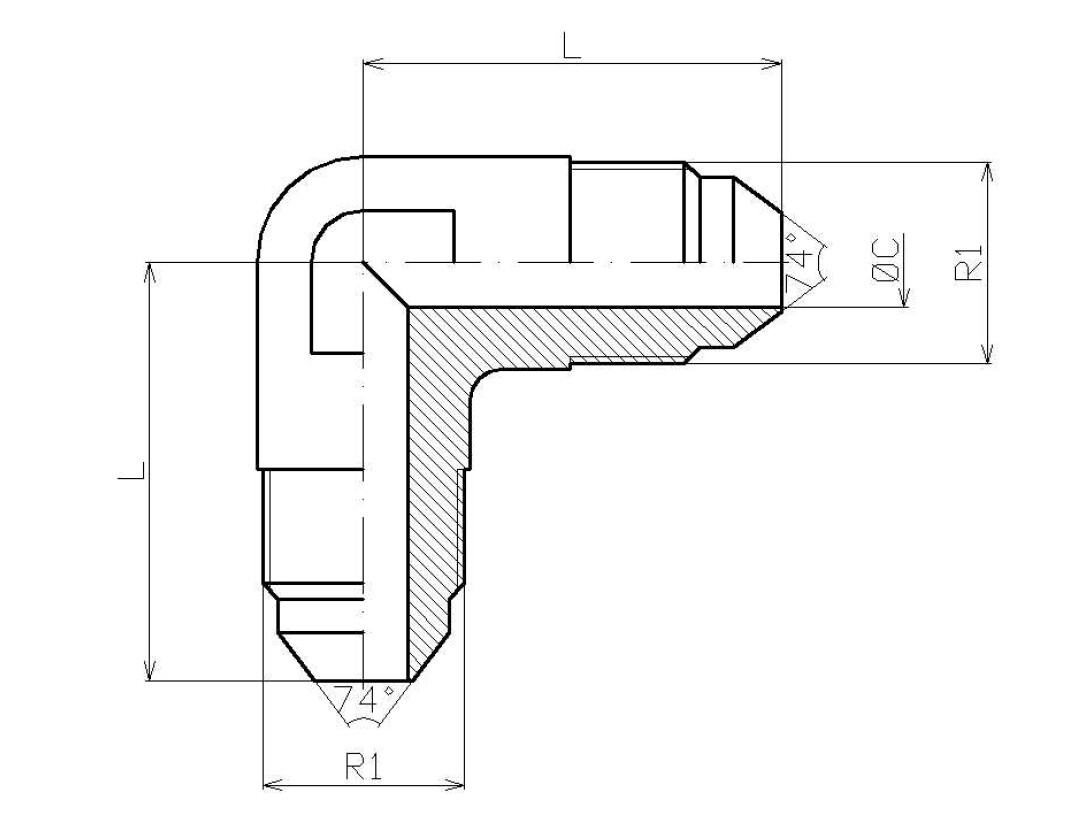

B
27 mm
C
7,5 mm
Diameter rør
10 mm
Gjenger utvendig
9/16-18 JIC
L
27 mm
Materiale
Stainless steel
Materialkvalitet
AISI 316L
Merke navn
Hydraspecma
Trykk maks.
700 bar
Vinkel
90 °
Package size
0 pcs
Barcode
5704295687063
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ESP
Intrastat code
73072910
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
