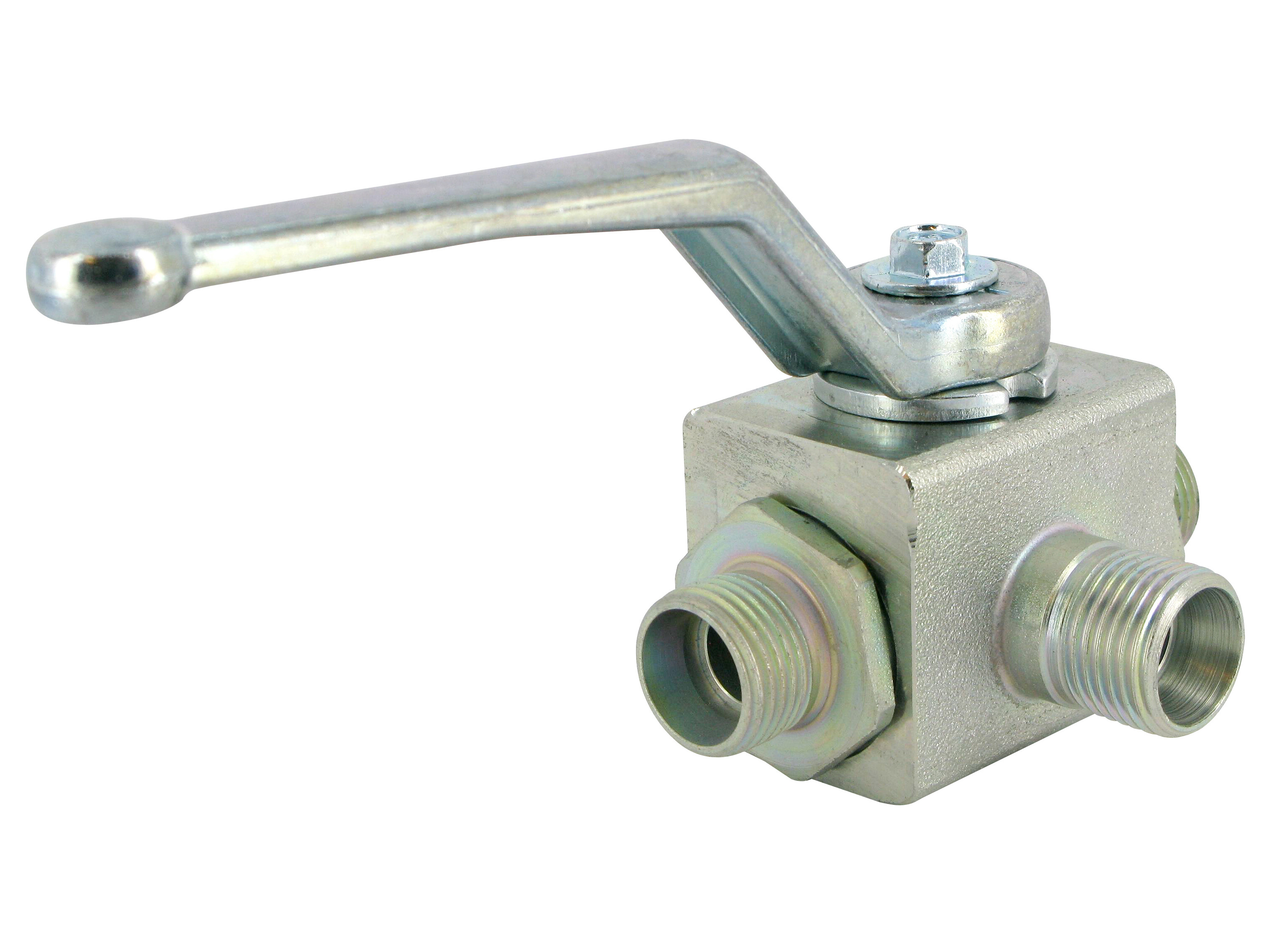

3-way valve-male -M22x1,5/L BK3 15L 13 1123 1 la
3-way, standard series ball valve with L-bore.
"LA" = 100% tight. Open during changeover.
Partnumber:
BK3-15LLA
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Pister Kugelhähne
Diameter inner
13 mm
Diameter pipe
15 mm
Dimension B
35 mm
Dimension H1
40 mm
Dimension L
87 mm
Dimension L1
44 mm
Number of ways/positions
3/2
Pressure max.
350 bar
Series
L
Temperature max.
+60 °C
Temperature min.
-20 °C
Pakke str.
0 pcs
Stregkode
5704295021683
Brutto vægt
0,63 Kg
Netto vægt
0,63 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
3-way, standard series ball valve with L-bore.
"LA" = 100% tight. Open during changeover.
