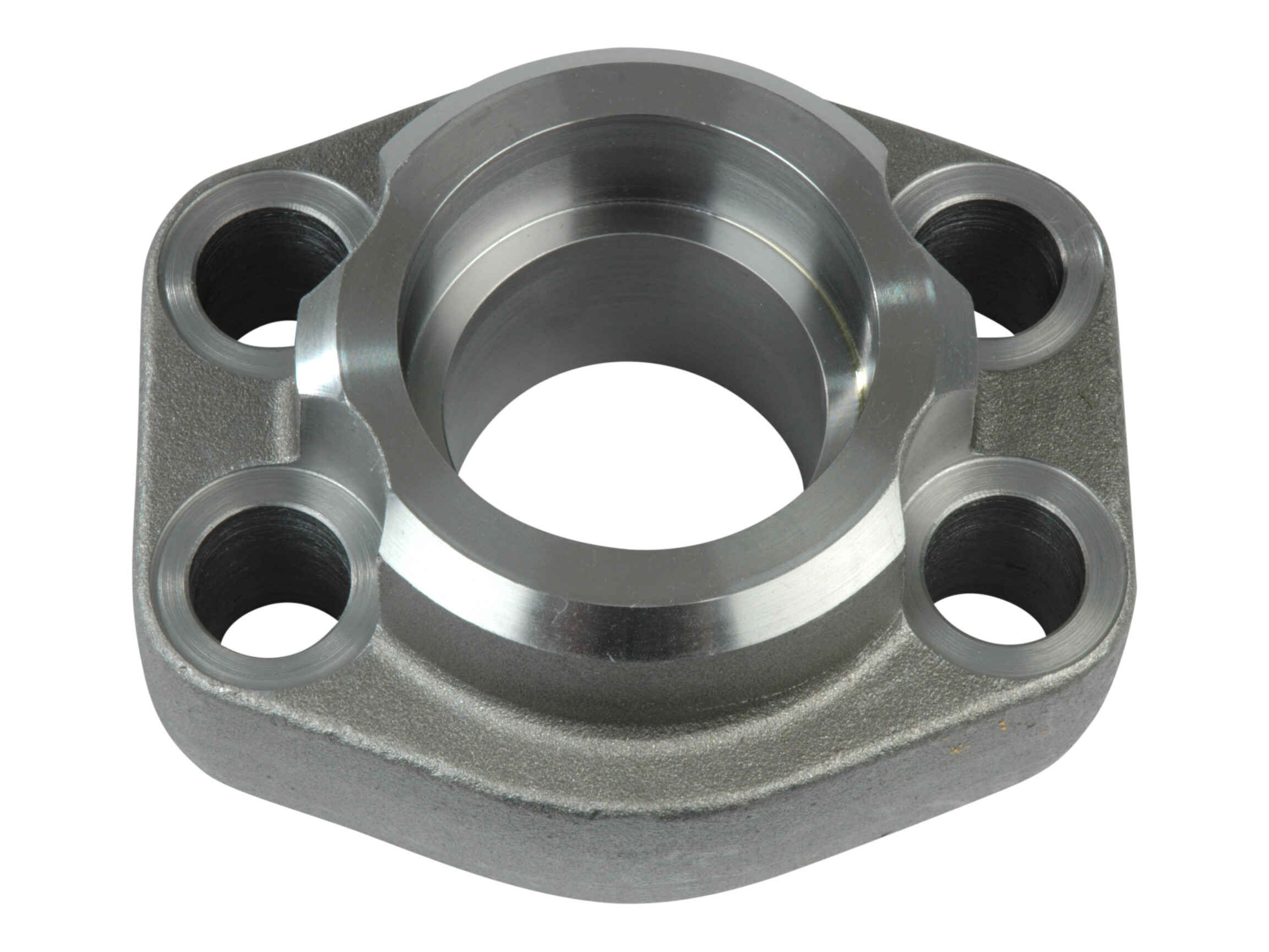

Socket weld flange 2" SAE6000
Socket weld flange 2" SAE6000
Partnumber:
AFS406S
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Bolt dimension
M20x65 mm
Brand Name
Havit
Diameter Weld butt
61 mm
Diameter flange
79.5 mm
Dimension C
96.8 mm
Dimension E
44.5 mm
Flange
2 "
Flange SAE/DIN
6000 PSI
Material
Stainless steel
O-ring
56.75X3.53 mm
Pressure max.
420 bar
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 pcs
Barcode
5704295320823
Gross weight
2,45 Kg
Net weight
2,45 Kg
Country of origin
DEU
Intrastat code
73079100
Socket weld flange 2" SAE6000
