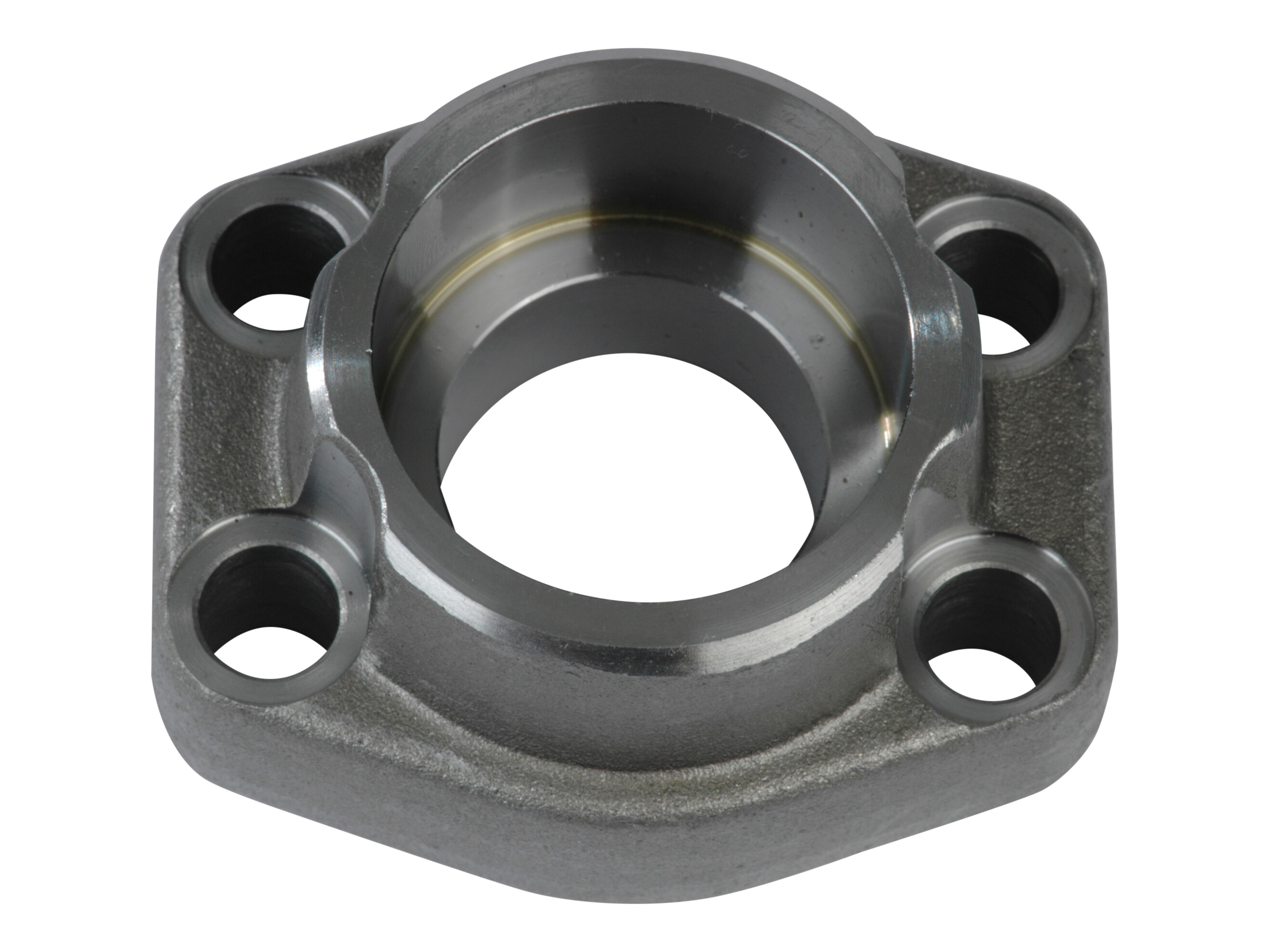

    Socket weld flange 1.1/4" SAE3000

    Socket weld flange 1.1/4" SAE3000

    Artikelnummer:
    AFS104S
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    O-ring 90S
    Partnumber: 37.69X3.53S
    Boltsæt (4) for SAE flanger - 10.9 ZiNi - UNC 7/16" x 1.1/2"
    Partnumber: UNC716-112ZN
    Angle
    0 °
    Bolt dimension
    M10x40 mm
    Brand Name
    Havit
    Diameter flange
    50.8 mm
    Dimension C
    58.7 mm
    Dimension E
    30.2 mm
    Flange
    1.1/4 "
    Flange SAE/DIN
    3000 PSI
    Material
    Steel
    O-ring
    37.69X3.53 mm
    Pressure max.
    280 bar
    Shore
    90
    Standard ISO
    ISO 6162-1
    Standard SAE
    SAE J518 Code 61
    Temperature max.
    +90 °C
    Temperature min.
    -40 °C
    Package size
    0 pcs
    Barcode
    5704295320632
    Gross weight
    0,66 Kg
    Net weight
    0,66 Kg
    Country of origin
    DEU
    Intrastat code
    73079100

    Socket weld flange 1.1/4" SAE3000
