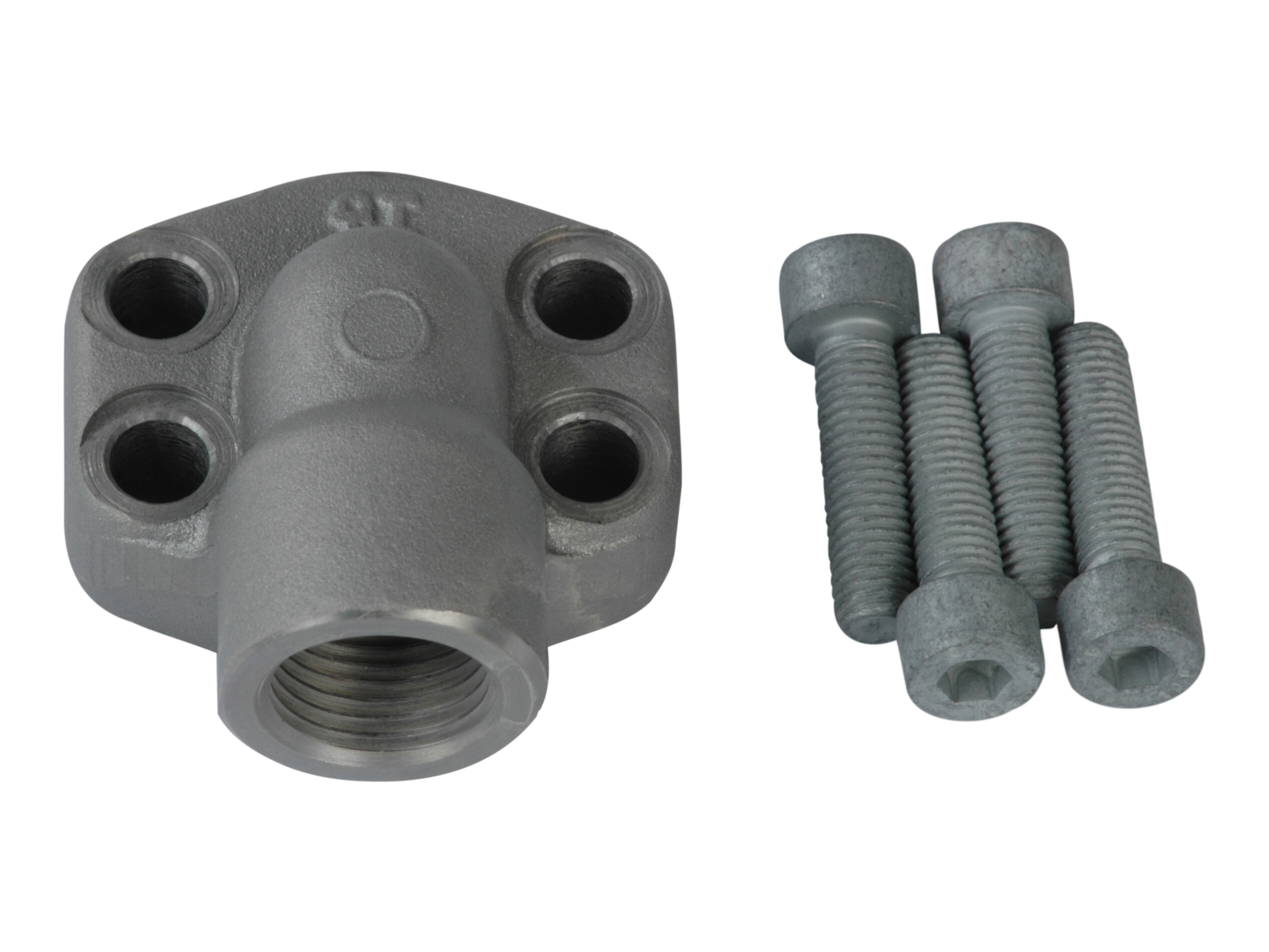

Flange 90° 1/2" SAE3000 x 1/2" BSP - complete
Flange 90° 1/2" SAE3000 x 1/2" BSP - complete
Artikelnummer:
AFS080/90GM
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
90 °
Bolt dimension
M8x30 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
30.2 mm
Dimension C
38.1 mm
Dimension E
17.5 mm
Flange
1/2 "
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
O-ring
18.64X3.53 mm
Pressure max.
350 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1/2 BSP
Package size
0 pcs
Barcode
5704295898001
Gross weight
0,35 Kg
Net weight
0,35 Kg
Country of origin
DEU
Intrastat code
73079100
Flange 90° 1/2" SAE3000 x 1/2" BSP - complete
