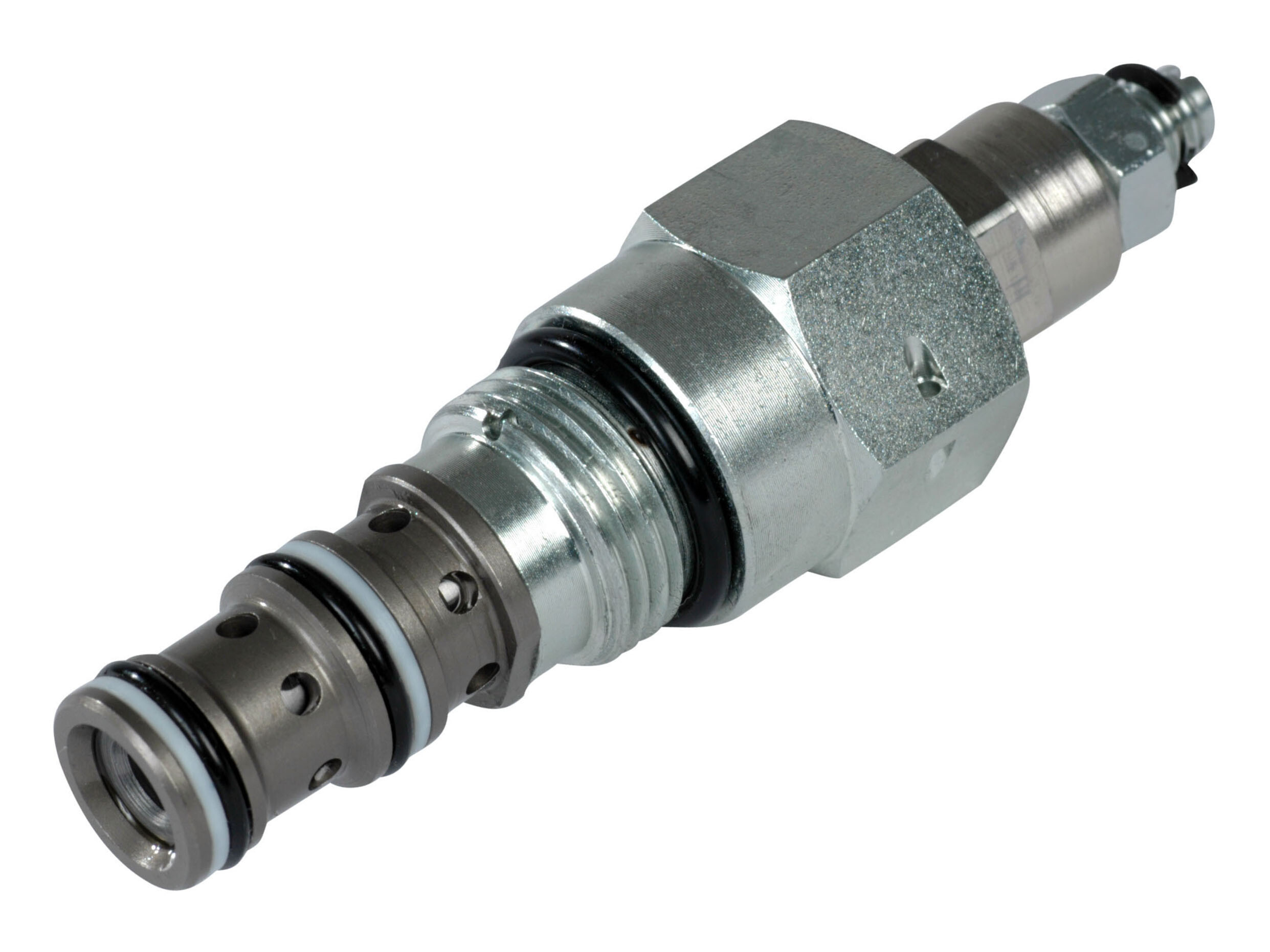

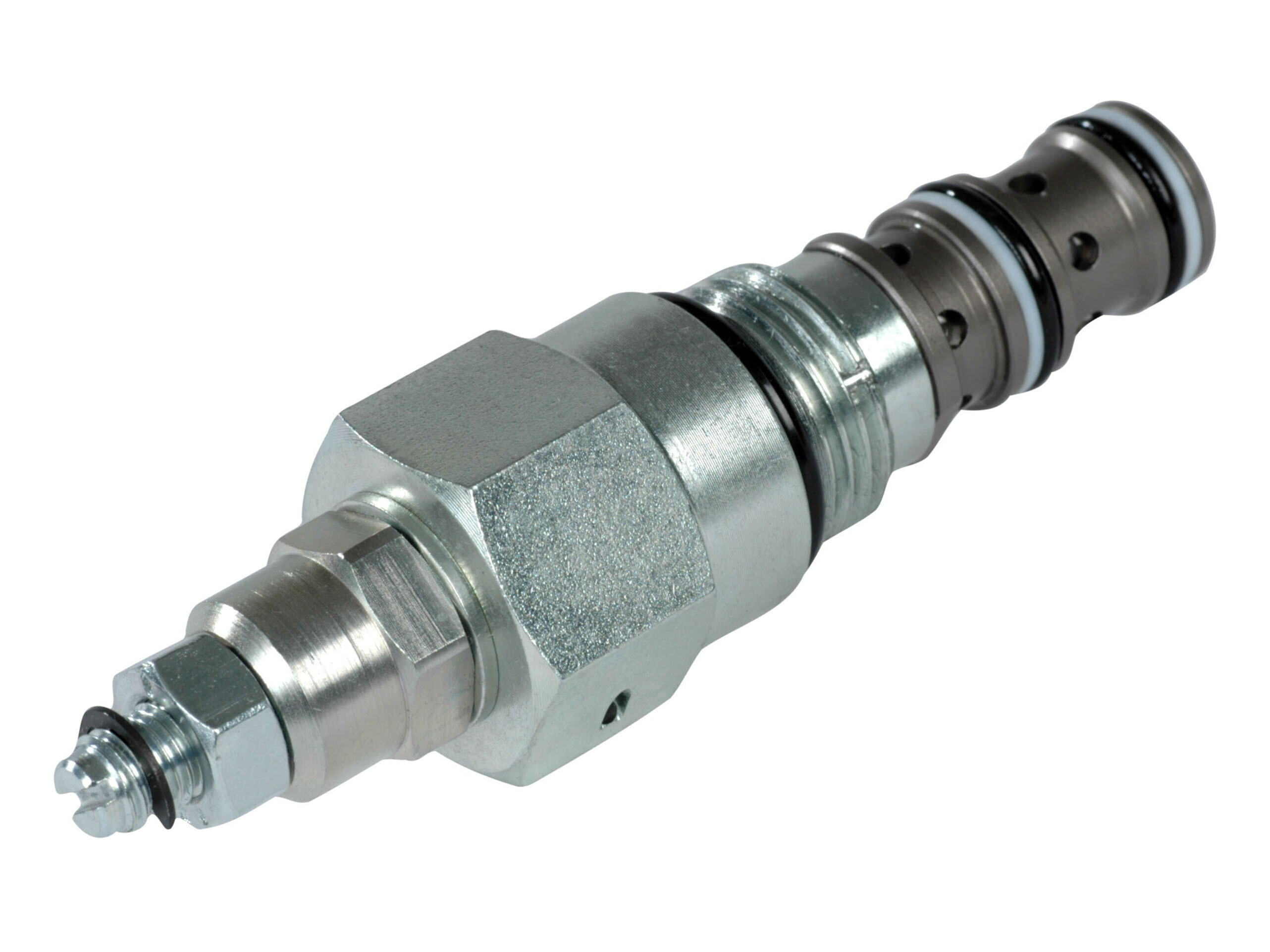

PRESSURE REDUCING VALVE PRMP 064-EN-2-00-XXX
This is a normally open, pilot operated pressure reducing valve. Port 2 is open to port 1 until the setting is reached, at which time the valve throttles the outlet flow limiting the pressure. If the outlet pressure rises due to an external force., then the valve will open port 1 to port 3 acting as a relief valve. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
Varenummer:
810192619
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Flödeshastighet nominell LMin
40 lpm
Föroreningsgrad max.
20/18/14 - ISO 4406
Kavitet
SDC10-3
Modell kod
PRMP064-EN-2-00-XXX
Märke namn
Danfoss
Nyckelstorlek
27 mm
Oljeviskositet rekommanderad
12 - 54 cSt
Packningsmaterial
FKM/FPM (Viton®)
Tillverkningsmaterial
Steel
Tryck max.
315 bar
Tryckinställning max.
140 bar
Tryckinställning min.
30 bar
Åtdragning moment
45 - 50 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704334371625
Bruttovikt
0,23 Kg
Nettovikt
0,23 Kg
Ursprungsland
Intrastat artikelkod
84812010
This is a normally open, pilot operated pressure reducing valve. Port 2 is open to port 1 until the setting is reached, at which time the valve throttles the outlet flow limiting the pressure. If the outlet pressure rises due to an external force., then the valve will open port 1 to port 3 acting as a relief valve. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
