SOLENOID VALVE SV10-22-02-00-00-B-00

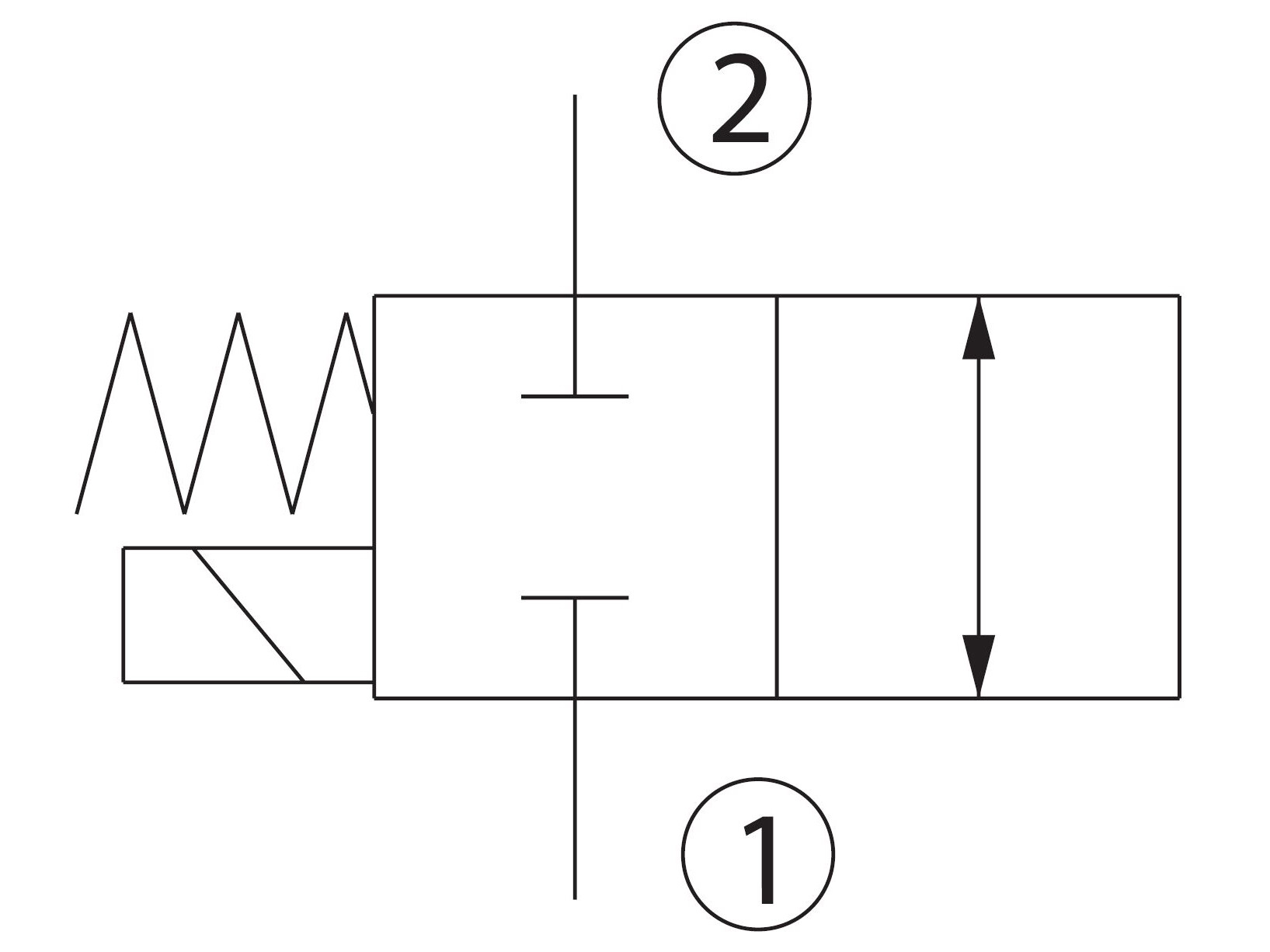

This is a 2-way, 2-position, spool type, normally closed solenoid valve. In its de-energized condition flow is blocked in both directions. When energized, flow can take place from port 2 to 1 and from 1 to 2. The valve will be subject to normal spool leakage dependent on the pressure difference between the ports.
These valves can be used to interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition.
Varenummer:
805313919
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Activation
Solenoid
Brand Name
Danfoss
Cavity
SDC10-2
Contamination level max.
20/18/14 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
35 lpm
Manual operated
No
Model code
SV10-22-02-00-00-B-00
Number of ways/positions
2/2
Oil viscocity recommended
12 - 54 cSt
Pressure max.
230 bar
Sealing material
NBR
Solenoidtype
M16
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
45 - 50 Nm
Valve type
NC - Normally closed
Pakke str.
0 pcs
Stregkode
5704334372448
Brutto vægt
0,20 Kg
Netto vægt
0,20 Kg
Oprindelsesland
Intrastat varekode
84812010
This is a 2-way, 2-position, spool type, normally closed solenoid valve. In its de-energized condition flow is blocked in both directions. When energized, flow can take place from port 2 to 1 and from 1 to 2. The valve will be subject to normal spool leakage dependent on the pressure difference between the ports.
These valves can be used to interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition.
