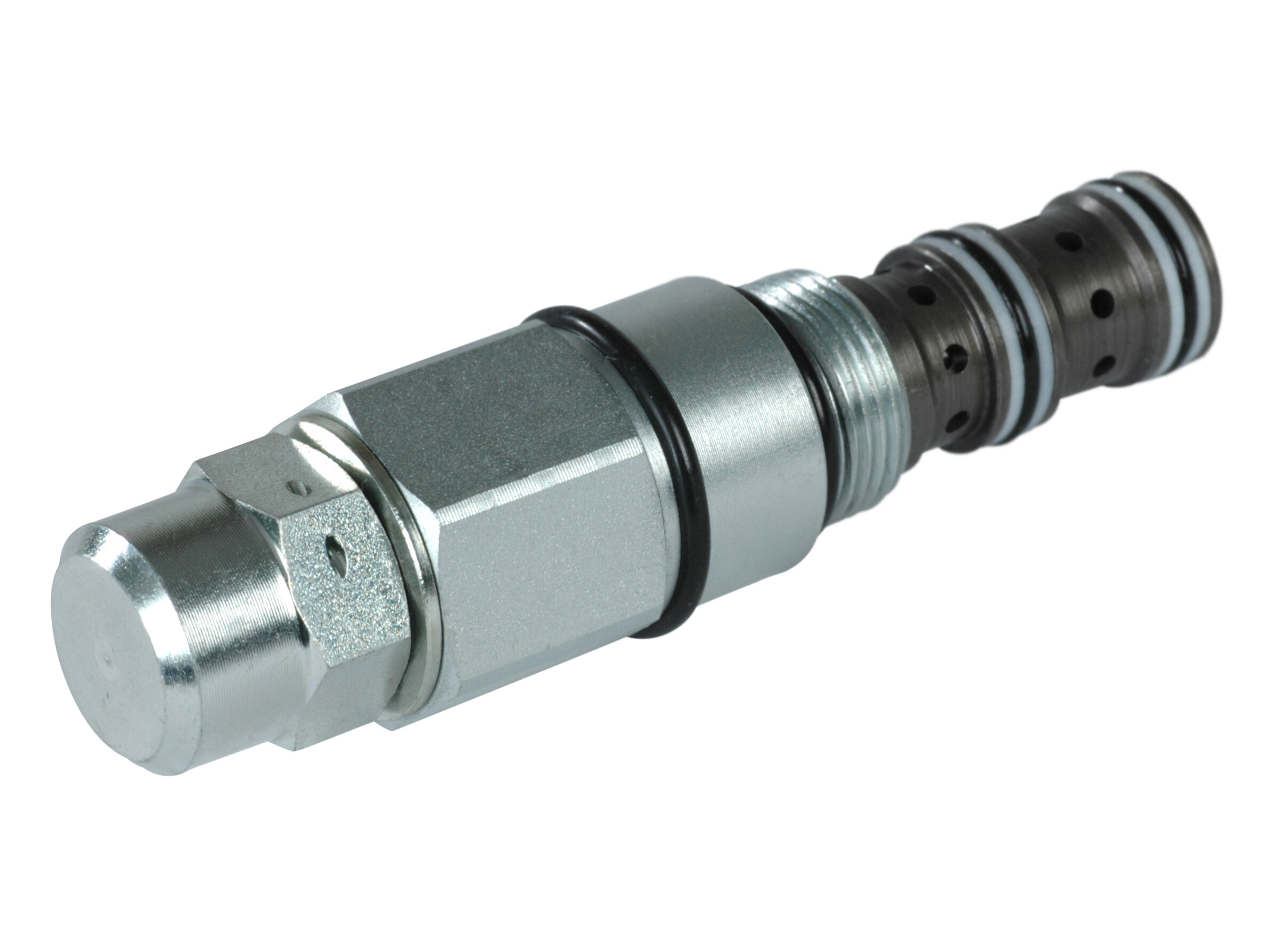

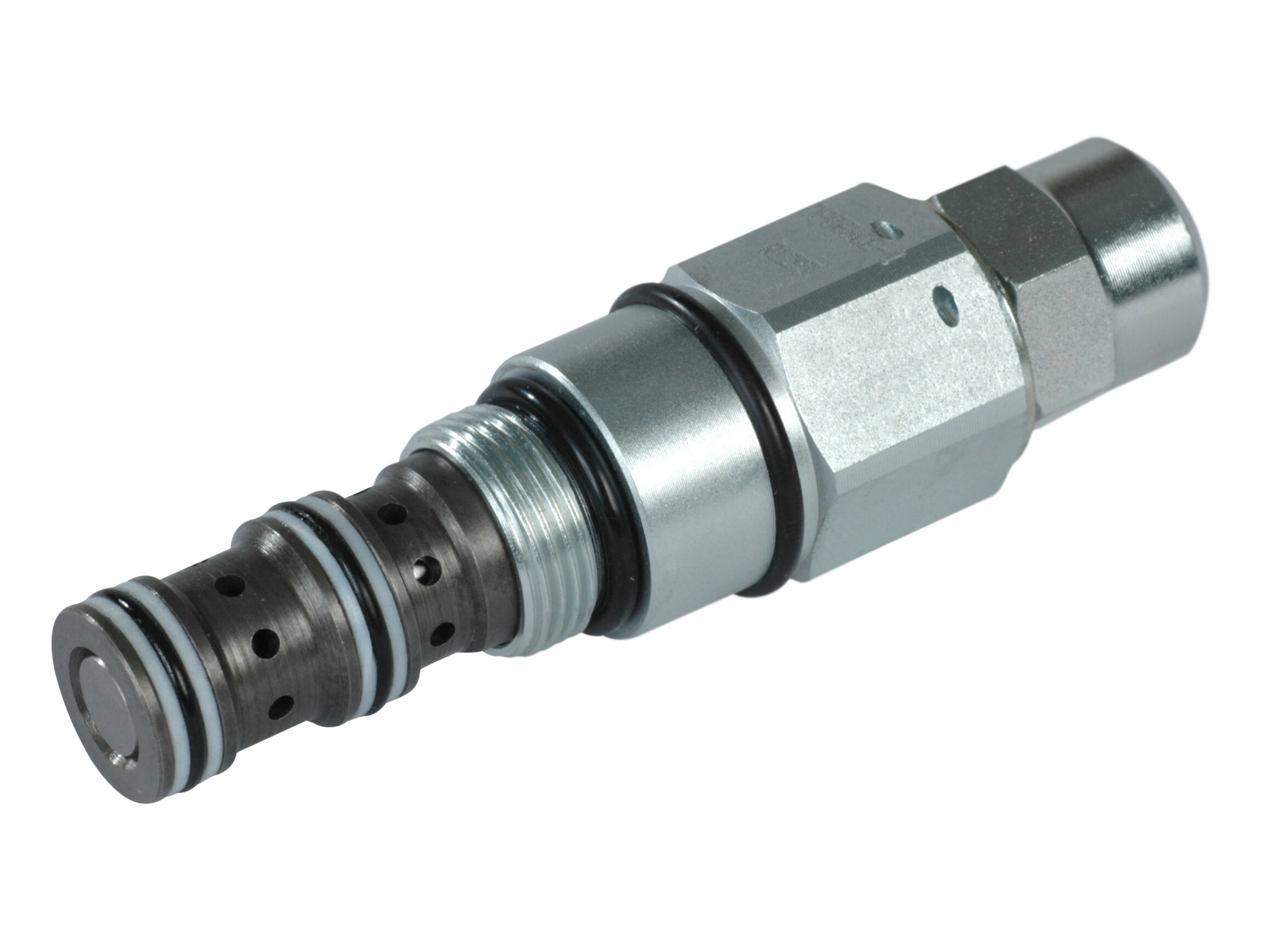

Sequence valve 2-way, 25 LPM, 15-40 bar VDP 06/NC-E-1-00-XXX

VDP 06/NC, Sequence Valve, Normally Closed, Spool Type, Hydraulic Pilot, Atmospheric Vent

This is a hydraulically pilot operated spool valve, normally closed from port 2 to 3 with an atmospheric vent. When the pilot pressure on port 1 reaches the setting, the valve will begin to open port 2 to 3. This is deal for sensing pressure in a remote area of a circuit to sequence another operation.

Partnumber:
800279429

Package size:
0 pcs

Min. order quantity is:
1 pcs
LINE BODY, NCS 06/3 SE 1/2 NCS06/3--SE 1/2
Partnumber: 922500713
LINE BODY, NCS 06/3 SE 3/8 (D) NCS06/3-SE 3/8 (D)
Partnumber: 922500813
LINE BODY, NCS 06/3 SI 3/8 NCS06/3--SI 3/8
Partnumber: 922501113
Housing NCS06/3--SI 1/2
Partnumber: 922501213
Housing NCS06/3-DL 3/8
Partnumber: 922501313
Housing NCS06/3--DL 1/2
Partnumber: 922501413
Housing NCS06/3-SEL 3/8
Partnumber: 922503913
Brand Name
Danfoss

Cavity
NCS06/3

Contamination level max.
20/18/14 - ISO 4406

Flow rate nominal LMin
25 lpm

Key size
27 mm

Model code
VDP06/NC-E-1-00-XXX

Oil viscocity recommended
12 - 54 cSt

Pressure max.
315 bar

Pressure setting max.
40 bar

Pressure setting min.
15 bar

Sealing material
NBR

Torque tightening
45 - 50 Nm
Package size
0 pcs

Barcode
5704334399346

Gross weight
0,27 Kg

Net weight
0,27 Kg

Country of origin

Intrastat code
84812010

VDP 06/NC, Sequence Valve, Normally Closed, Spool Type, Hydraulic Pilot, Atmospheric Vent

This is a hydraulically pilot operated spool valve, normally closed from port 2 to 3 with an atmospheric vent. When the pilot pressure on port 1 reaches the setting, the valve will begin to open port 2 to 3. This is deal for sensing pressure in a remote area of a circuit to sequence another operation.
