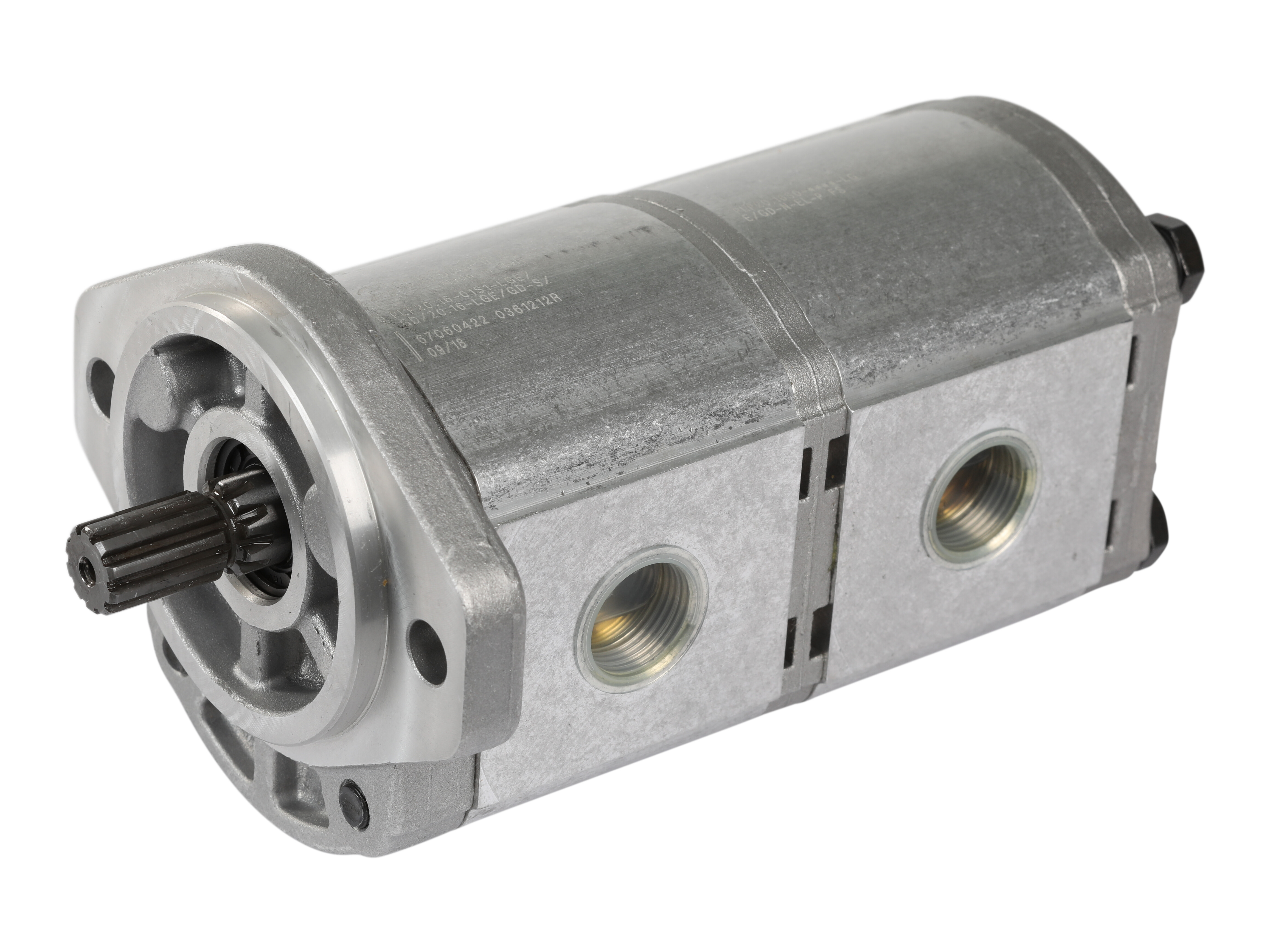

PLP20.16-01S1-LGE/GD-20.16- LGE/GD-S-FS-EL dual pump
PLP20.16-01S1-LGE/GD-20.16- LGE/GD-S-FS-EL dual pump
Varenummer:
67060422
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Casappa
Contamination level max.
19/17/13 - ISO 4406
Displacement P1
16.85 cm3
Displacement P2
16.85 cm3
Front pump
PLP20.16
Holes circle
106.4 mm
Model code
PLP20.16-01S1-LGE/GD-20.16-LGE/GD-S-FS-EL
Mounting flange
SAE-A2
Number of mounting holes
2
Number of outer grooves
10
Oil viscocity recommended
12 - 100 cSt
Pressure continous P1 max.
250 bar
Pressure continous P2 max.
250 bar
Pump group
2 + 2
Rear pump
PLP20.16
Recess
82,5 mm
Rotation direction
Left (CCW)
Rotational speed max.
3000 rpm
Rotational speed min.
500 rpm
Shaft spline
10T 16/32
Shaft type
Spline
Package size
0 pcs
Barcode
5704295849638
Gross weight
4,81 Kg
Net weight
4,81 Kg
Country of origin
ITA
Intrastat code
84136031
PLP20.16-01S1-LGE/GD-20.16- LGE/GD-S-FS-EL dual pump
