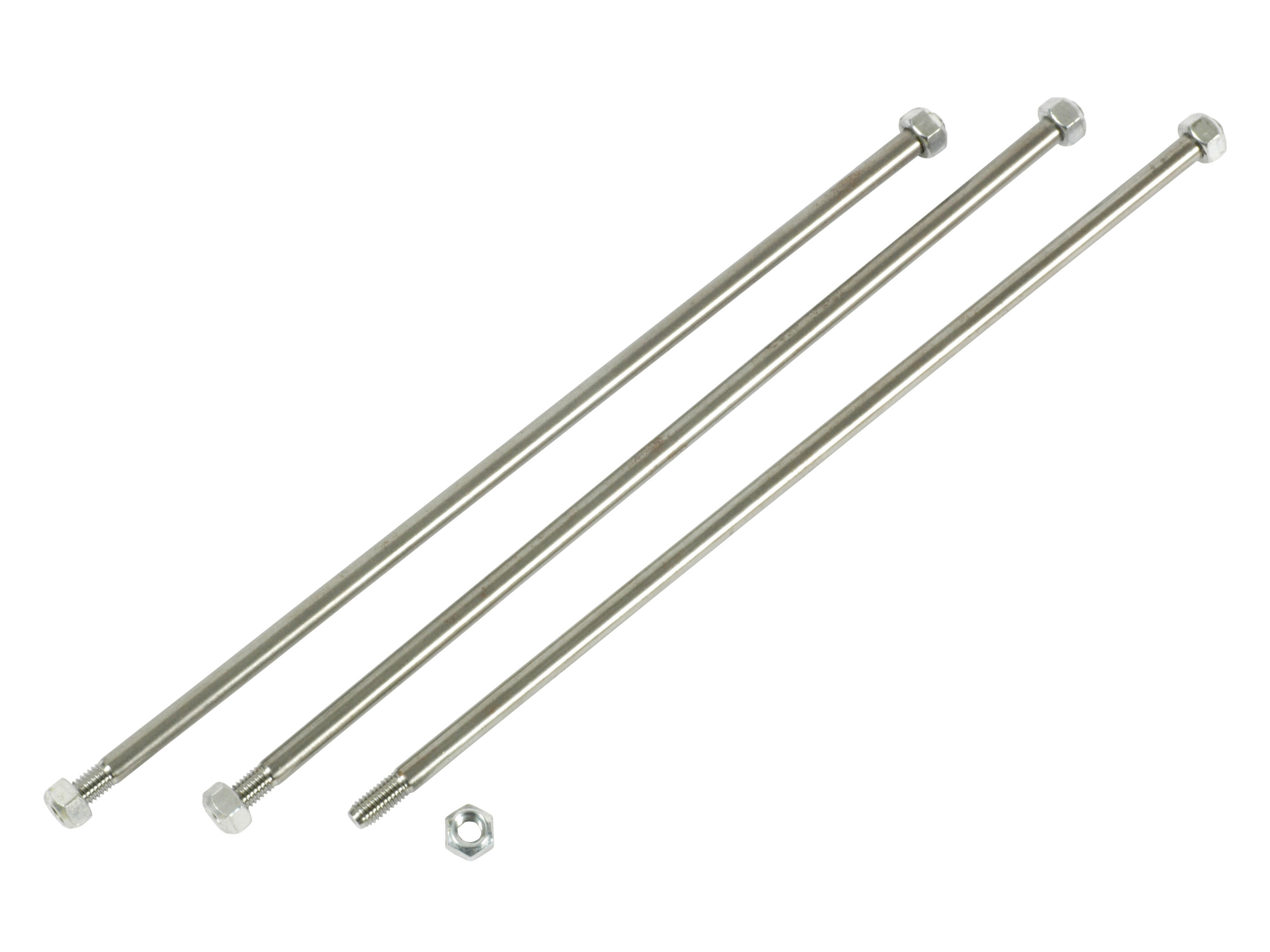

SD6 boltkit 6 sections

Assembly kit (bolts and nuts) for: 1 inlet section, 6 working sections, 1 outlet section.

Artikelnummer:

5TIR108307

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Specifications
Dimensions and shipping

Brand Name

Walvoil

Flow rate nominal LMin

45 lpm

Length

307 mm

Number of sections

Pressure max.

315 bar

Torque tightening

30 Nm

Package size

0 pcs

Barcode

5704334150831

Gross weight

0,40 Kg

Net weight

0,40 Kg

Country of origin

ITA

Intrastat code

84812010

Product information

Assembly kit (bolts and nuts) for: 1 inlet section, 6 working sections, 1 outlet section.
