SDM102/2-P(TG3-175)/513RZSL/1[ S]8MCSL/AET-<CVN>+TQ70x2

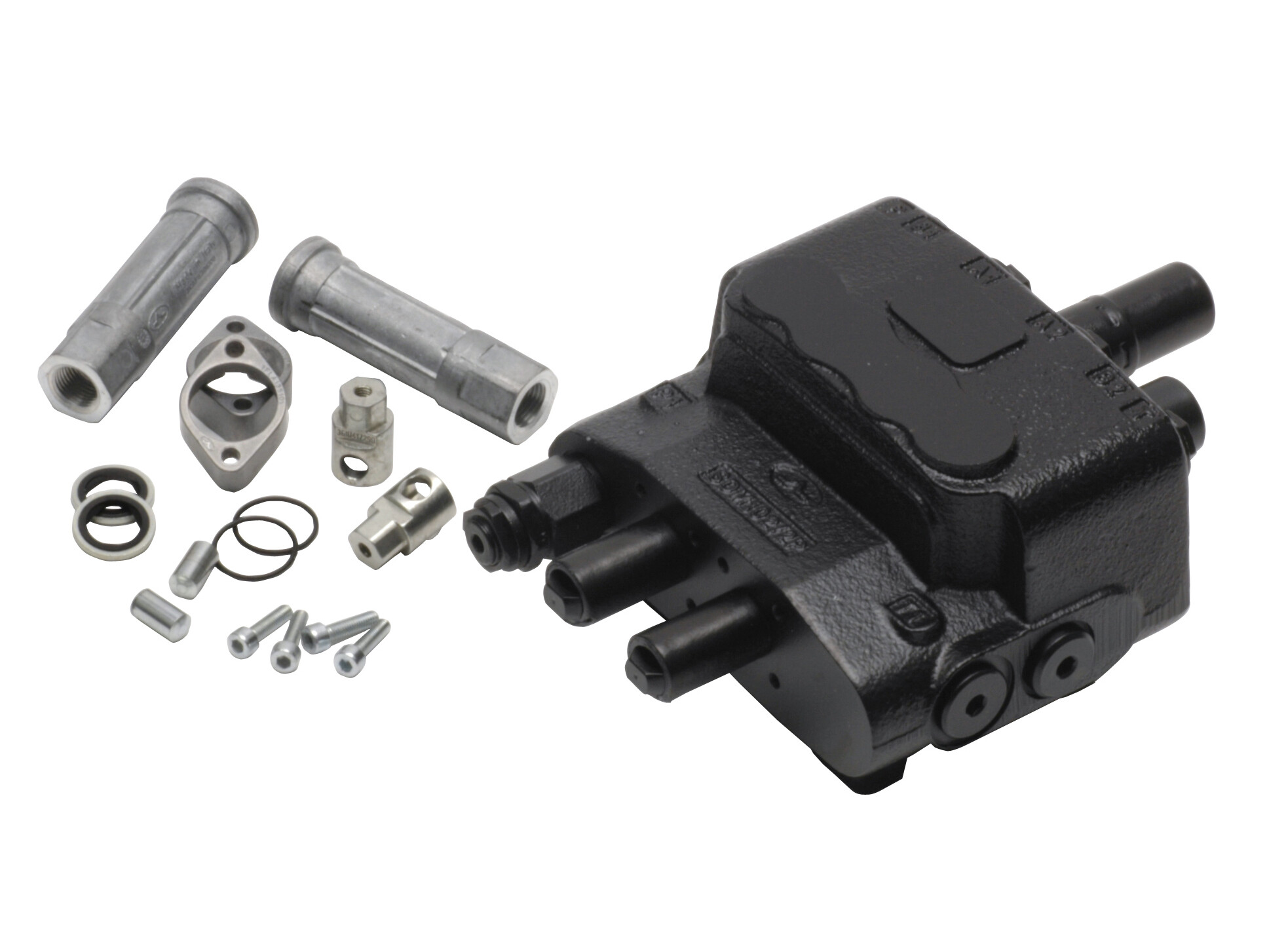

2-section SDM102 monoblock valve with built-in pressurerelief valve and 2 spools in parallel. Manually activated via cables and handlevers. The valve is supplied with one layer of black primer.

Spool function:
Spool 1: Double acting, 4 positions, with port A and B connectoed to T in positon 3. Spring centered and detent in position 3.
Spool 2: Double acting with port A and B closed in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure carry-over (port plugged).

Pressure relief valve: 100 - 200 bar. Standard setting from manufacturer: 175 bar.

Partnumber:
502020002

Package size:
0 pcs

Min. order quantity is:
1 pcs
Cable conn. TQ50 for SD5,SD6
Partnumber: 5TEL105110
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Flow rate nominal LMin
45 lpm

Lever
Exclusive

Material
Cast iron

Model code
SDM102/2-P(TG3-175)/513RZSL/1[S]8MCSL/AET-<CVN>+TQ70x2

Number of sections
2

Oil viscocity recommended
12 - 400 cSt

Port P
G 3/8 BSP

Port T
G 3/8 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
250 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
100 bar

Surface treatment
Black primer

Working ports
G 3/8 BSP
Package size
0 pcs

Barcode
5704334122760

Gross weight
8,12 Kg

Net weight
8,12 Kg

Country of origin
ITA

Intrastat code
84812010

2-section SDM102 monoblock valve with built-in pressurerelief valve and 2 spools in parallel. Manually activated via cables and handlevers. The valve is supplied with one layer of black primer.

Spool function:
Spool 1: Double acting, 4 positions, with port A and B connectoed to T in positon 3. Spring centered and detent in position 3.
Spool 2: Double acting with port A and B closed in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure carry-over (port plugged).

Pressure relief valve: 100 - 200 bar. Standard setting from manufacturer: 175 bar.
